Technical Parameters
1. Working Voltage: DC12V±10%;
2. Working Current: unlocking current≤0.15A,static current≤0.05A;
3. Mortise type, anti-tamper ;
4. Micro gear motor, low consumption, noiseless;
5. Lock & unlock automatically ;
6. With lock status detection, LED light ;
7. Wire connection:
Red: power supply 12V+;
Black: power supply 12V-;
Yellow: unlocking signal, high-level output voltage 5V;
White: high-level output voltage 5V has gun, low output voltage 0V means no gun;
Light Blue: high-level output voltage 5V means unlocking, low output voltage 0V means locking
Main Functions
When power on,gun lock will lock automatically.If locked already,no action.
1. No Gun Mode
a. Give unlocking signal, it unlocks, red LED light flashing;
b. When put gun into gun lock, it will lock automatically, green LED light flashing;
c. If no gun put into gun lock in 60s,it will lock automatically, red LED light flashing.
2. With Gun Mode
a. Give unlocking signal, it unlocks, green LED light flashing;
b. When take away gun, it will lock automatically, red LED light flashing;
c. If do not take away gun in 60s,it will lock automatically, green LED light flashing.
Warranty is 1 year

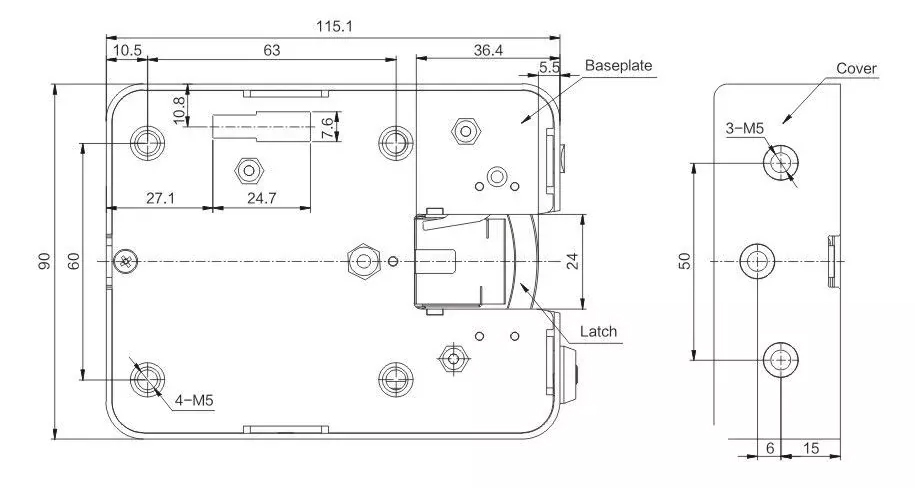

Installation Diagram
