HT-7002

Tel:+86-577-62517028
Email:htdz@chinahongtai.com
Skype:htdzlock

Performance

Applicable door weight: 46~65kgs

Applicable door width: 950mm

Dimensions: 206*44.5*68mm

Service life:500,000times

Temperature:-30℃~50

Two control valves

First speed:15-180 degrees

Second speed: 0-15 degrees



Scope of Application

Suit for wooden door, metal door, aluminium alloy door etc.



Technical Parameters

Model No.

Suit for   door weight

Dimensions

L

L1

A

A1

H

HT7000

15-30KGS

148

136.5

38

19

56.5

HT7001

25-45KGS

180.5

165

42.5

19

62.5

HT7002

45-65KGS

206.5

188

45.5

19

71

HT7003

65-85KGS

227

208

43.5

19

71.5

HT7004

85-105KGS

248

230

45.5

19

71.5

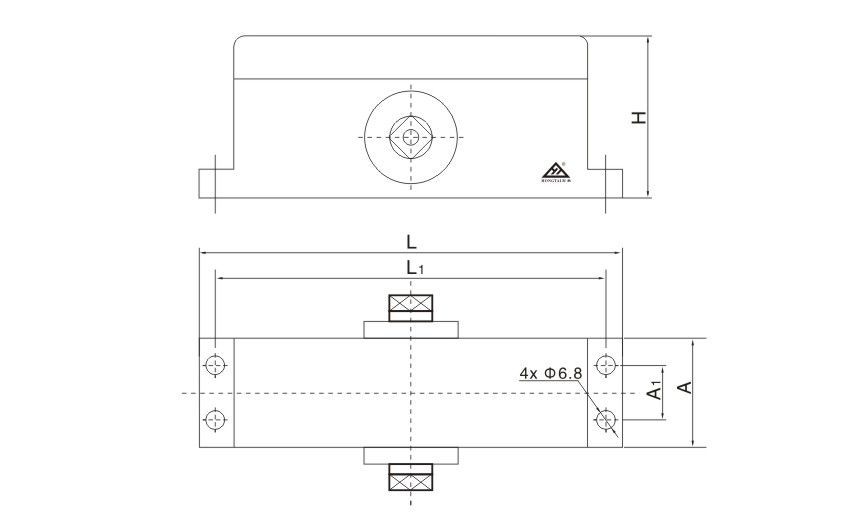

Dimension
