Specification
※ Holding Force: 60kg(150Lbs)
※ Voltage: DC12V (24VDC optional)
※ Current Draw: 280mA
※ Lock Size: 65*65*88mm
※ Armature Size: 65*65*42mm
※ Suitable for: All kinds of single & double smokeproof door
※ Surface Temperature: ≤25℃
※ Operating Temperature: -10～+55℃(14-131F)
※ Suitable Humidity: 0~90%(relative humidity)
※ Weight: 1.0kg
※ Automatically close the smokeproof door when fire happens

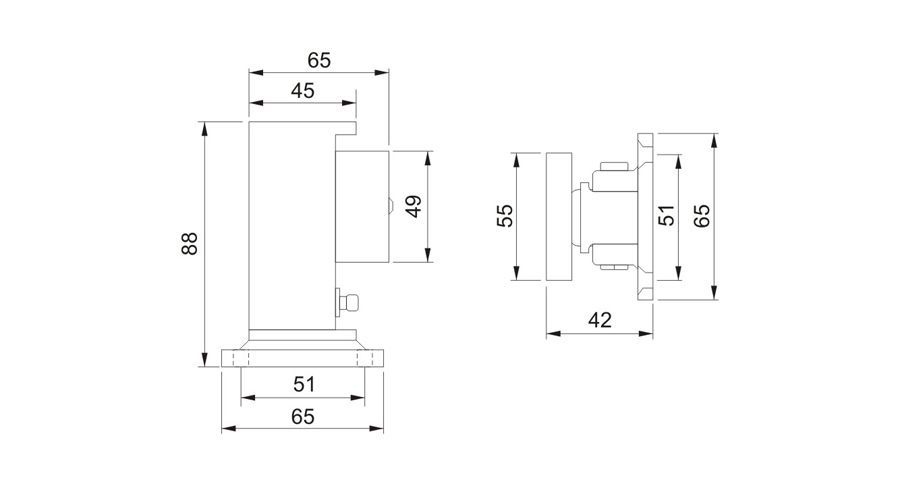

Dimension
