Electromagnetic locks are widely used in important buildings,become vital parts in the high technology access control system.Compared with traditional locks,this series locks have high holding force,low power consumption,stable quality,monitor signal feedback,noiseless,anti-theft and meet the fire safety requirement
Our silicon steel sheet uses non-remanence and imported fireproofing material.In order to keep the steady of working,adopt low power and surge protection. Four mounting holes design increase the fixing force.The export-oriented electromagnetic locks have convenient wire hole and terminal.We also provide special installation brackets to confront kinds of environment.For the appearance of locks, Hongtai insists on high technological requirements,use anodic oxidation surface treatment,electroplating etc

There have more than 40 "Hongtai" electromagnetic locks,60kgs to 500kgs are available for your choose


Technical Parameters
130Lbs Hanging Type EM Lock
Lock size:L80.0*W37.0*H25.0mm
Holding force:130Lbs(60kgs)
Working voltage: DC12V
Working current:
130mA
Professional device:surge absorber
Suitable for:metal door,wooden door,fireproof door
Security type:fail safe type(without power,it unlock)
Weight:0.3kg

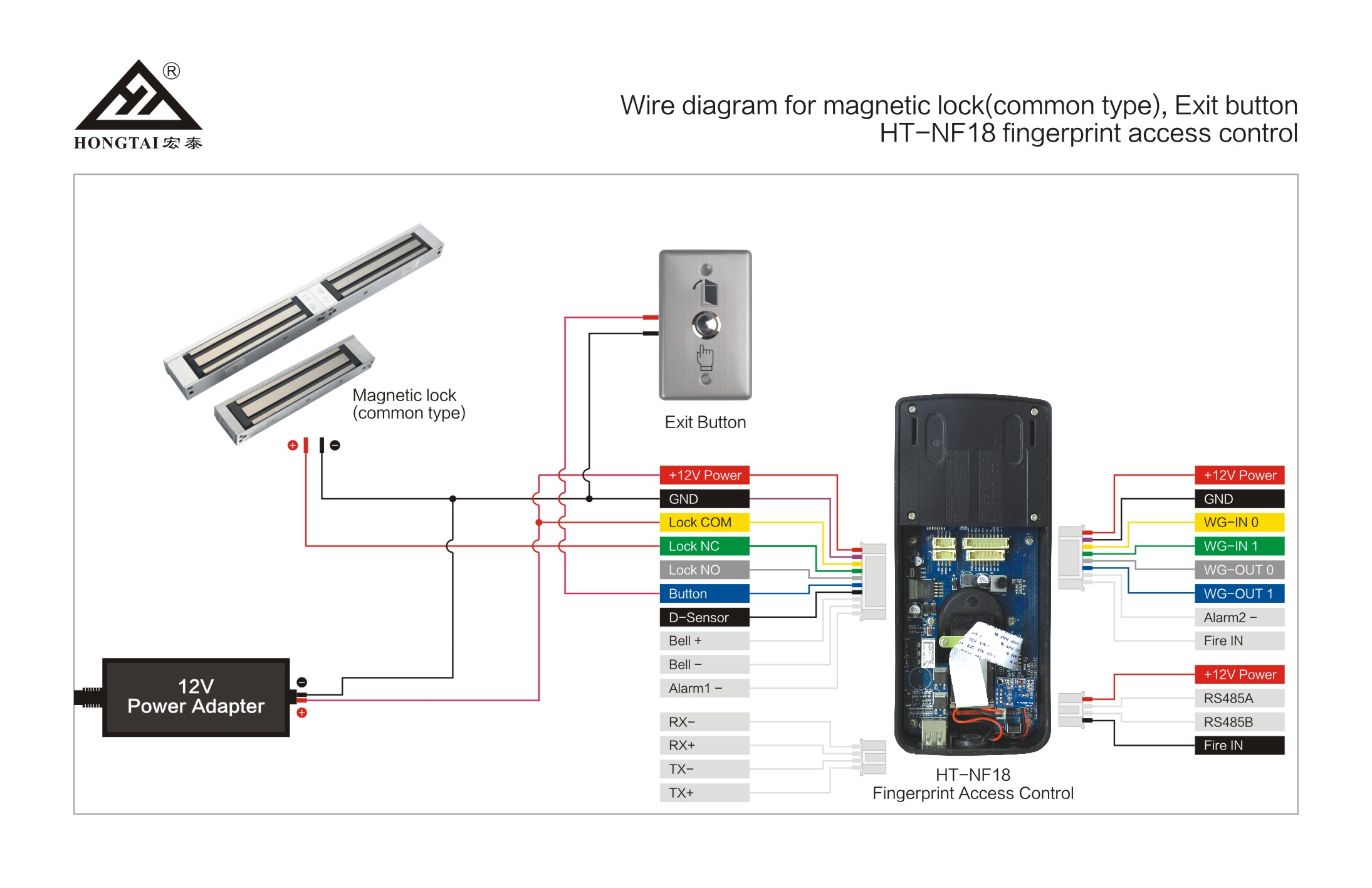

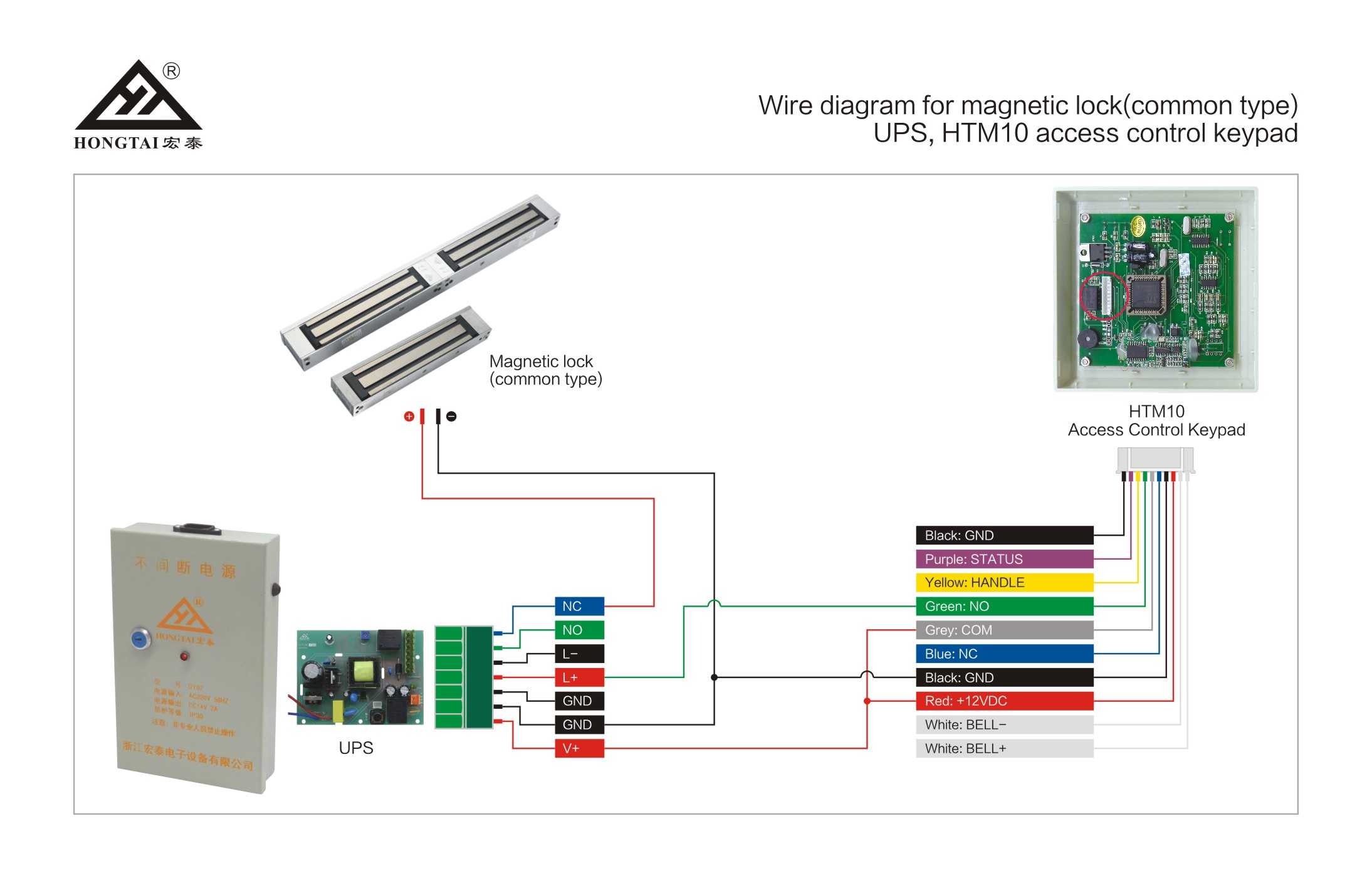

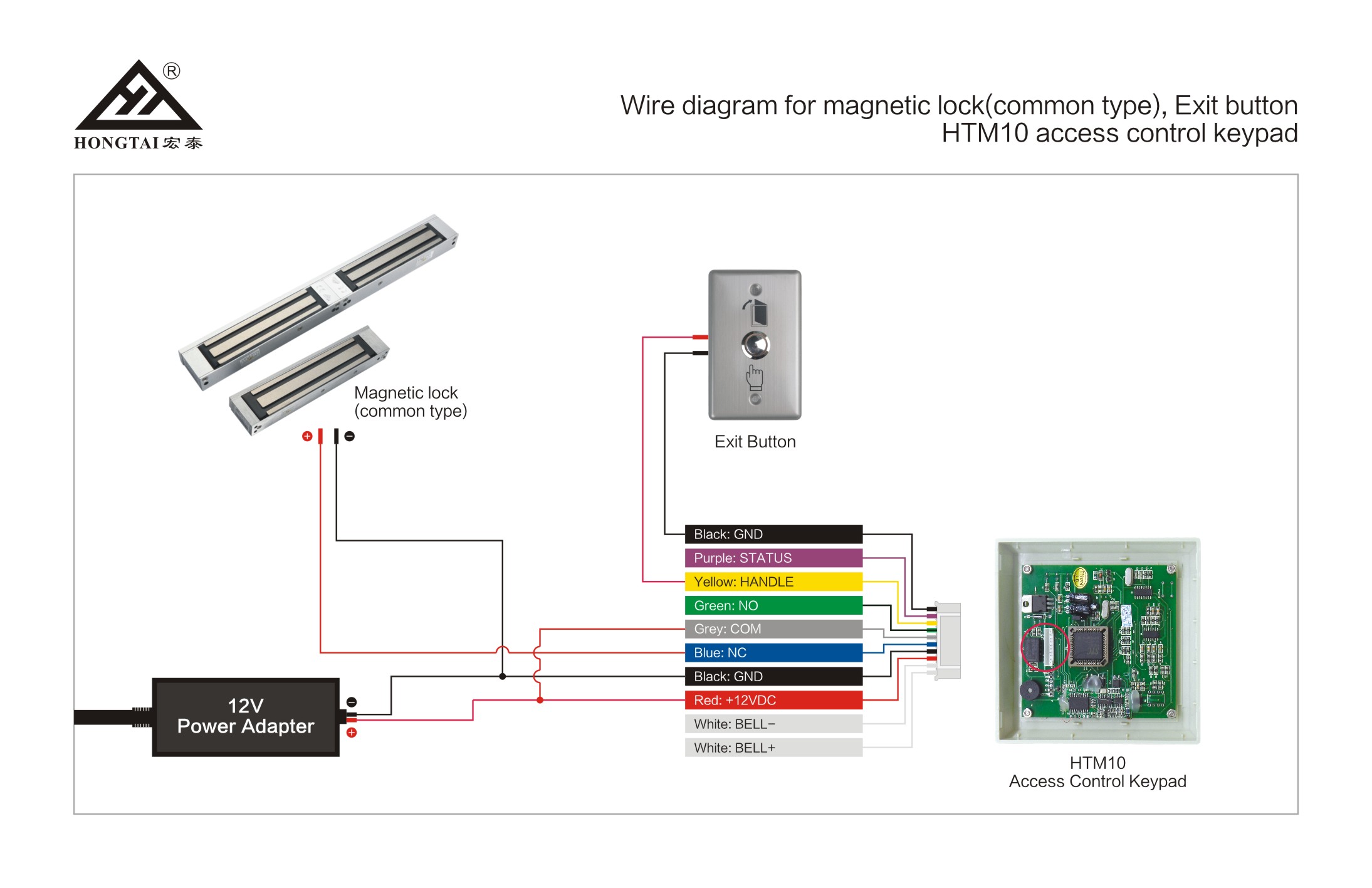

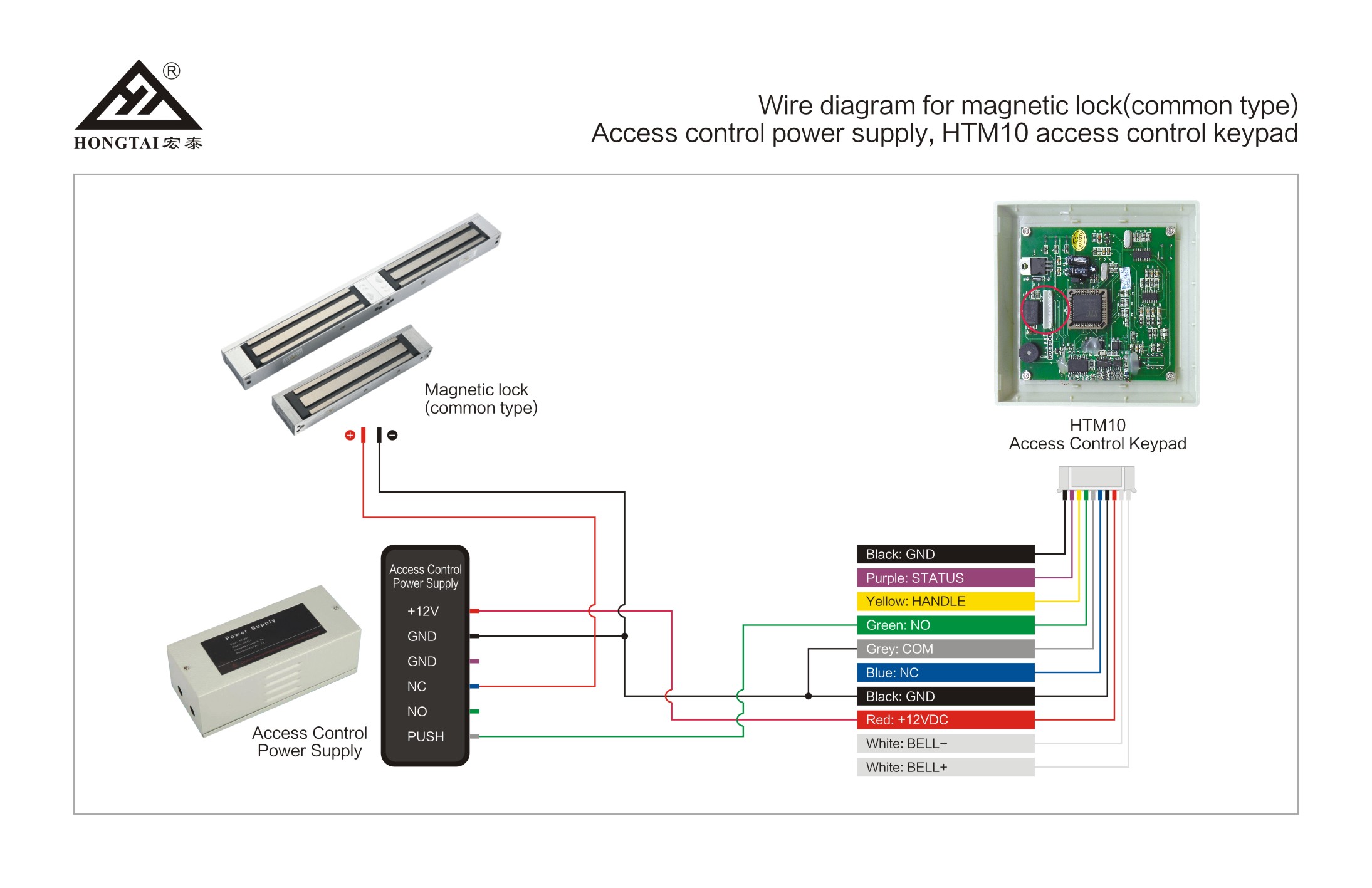

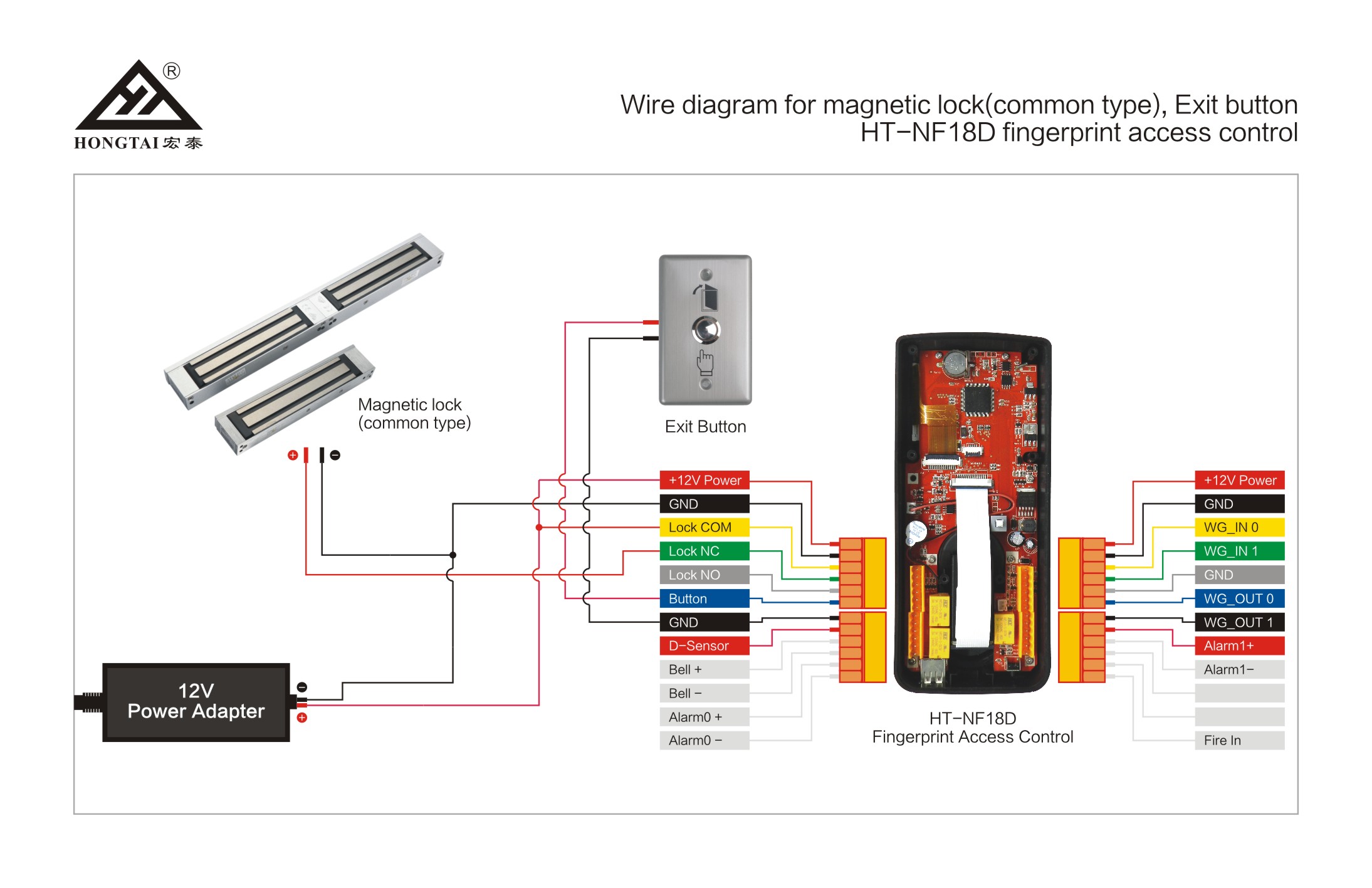

Wiring Diagram

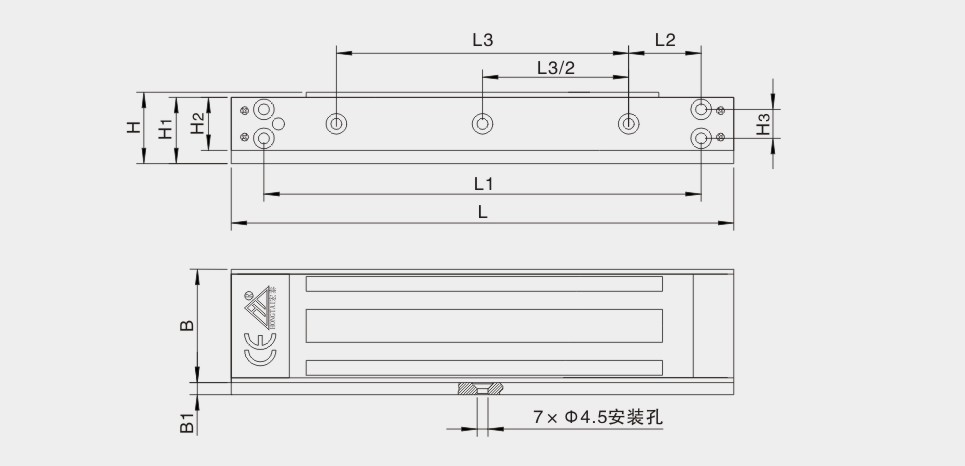

Installation Dimension Diagram


型号

DZ01G

DZ02G

DZ02GY
  DZ02GX

DZ03G

DZ03GY
  DZ03GX

DZ04G

DZ04GY
  DZ04GX

DZ05G

DZ05GY
  DZ05GX

L

80

166

214

208

241

238

271

231

264

L1

65

136

204

181

214

211

214

204

237

L2

20

20

30

46.5

30

50

25

41.5

L3

96

96

121

121

151

160

154

154

B

33

35

35

47

47

47

47

65

65

B1

4

5

5

5

5

5

5

5

5

H

22.5

22.5

22.5

26

26

26

26

37

37

H1

21

21

21

24

24

24

24

35.5

35.5

H2

20

20

20

22

22

22

22

32.5

32.5

H3

12

12

12

12

19

19

   注:双联磁锁的尺寸相当于上表对应型号两把并在一起。



型号

公斤级

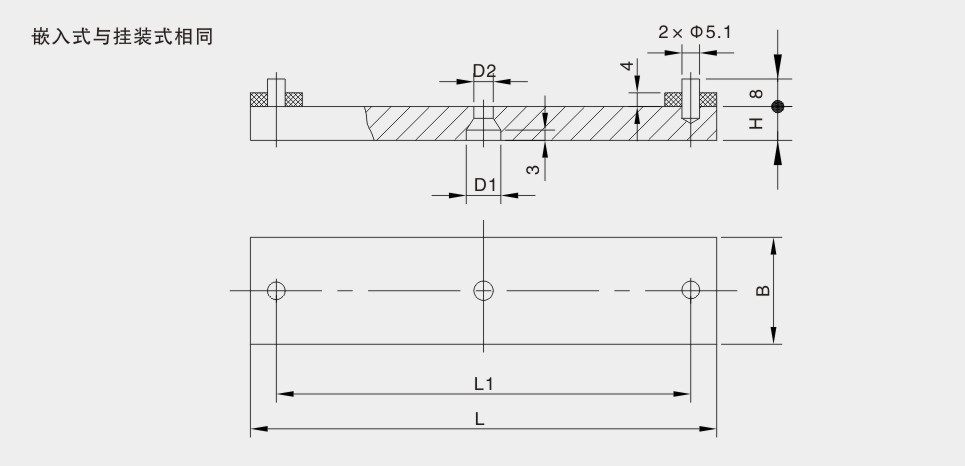

外形尺寸及安装尺寸

L

L1

B

H

D1

D2

DZ01

150kg

135

120

31

11

φ10

φ5.5

DZ02

150kg

135

120

31

11

φ10

φ5.5

DZ03

280kg

158

140

45

13

φ16

φ9

DZ04

350kg

180

160

45

13

φ16

φ9

DZ05

500kg

175

150

62

13

φ16

φ9

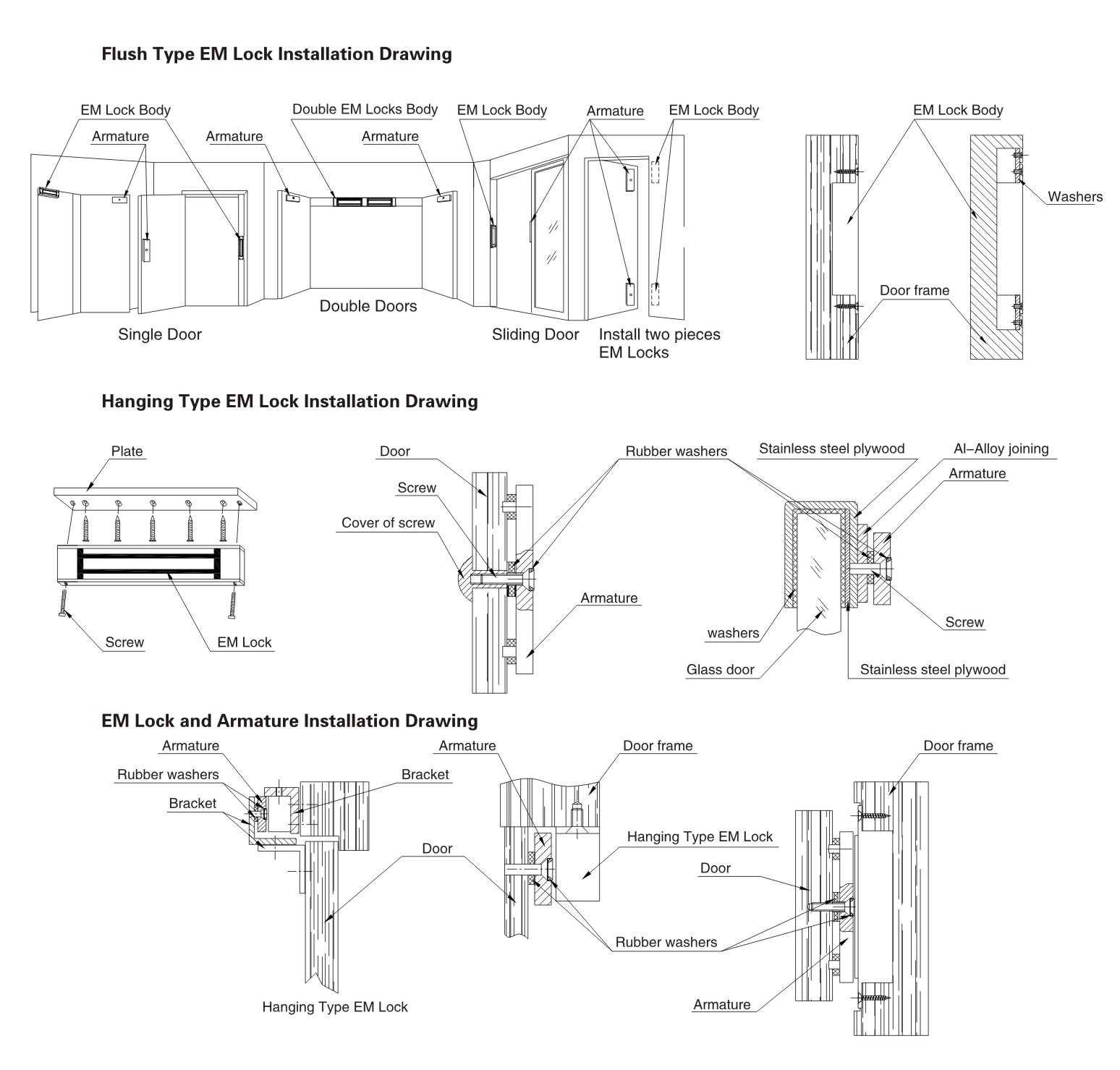

EM Lock Installation Reference Drawing
