Electromagnetic locks are widely used in important buildings,become vital parts in the high technology access control system.Compared with traditional locks,this series locks have high holding force,low power consumption,stable quality,monitor signal feedback,noiseless,anti-theft and meet the fire safety requirement
Our silicon steel sheet uses non-remanence and imported fireproofing material.In order to keep the steady of working,adopt low power and surge protection. Four mounting holes design increase the fixing force.The export-oriented electromagnetic locks have convenient wire hole and terminal.We also provide special installation brackets to confront kinds of environment.For the appearance of locks, Hongtai insists on high technological requirements,use anodic oxidation surface treatment,electroplating etc
There have more than 40 "Hongtai" electromagnetic locks,60kgs to 500kgs are available for your choice
Technical Parameters
800Lbs Hanging Type EM Lock
Lock size:L238.0*W47.0*H24.0mm
Holding force:800Lbs(350kgs)
Working voltage:DC12V
Working current:≤290mA
Professional device:surge absorber
Suitable for:metal door,wooden door,glass door,fireproof door
Security type:fail safe type(without power,it unlock)
Weight:2.6kgs

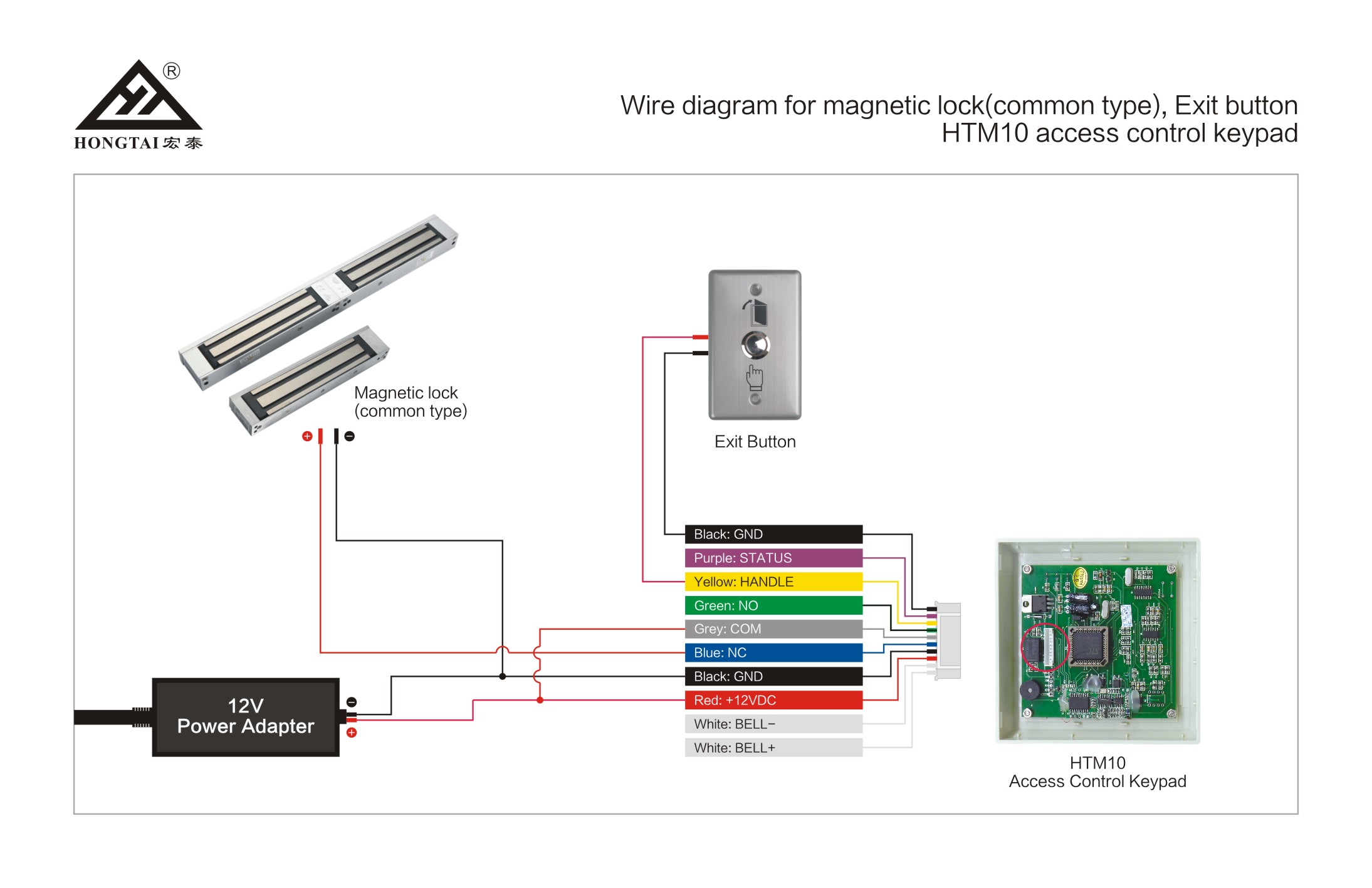

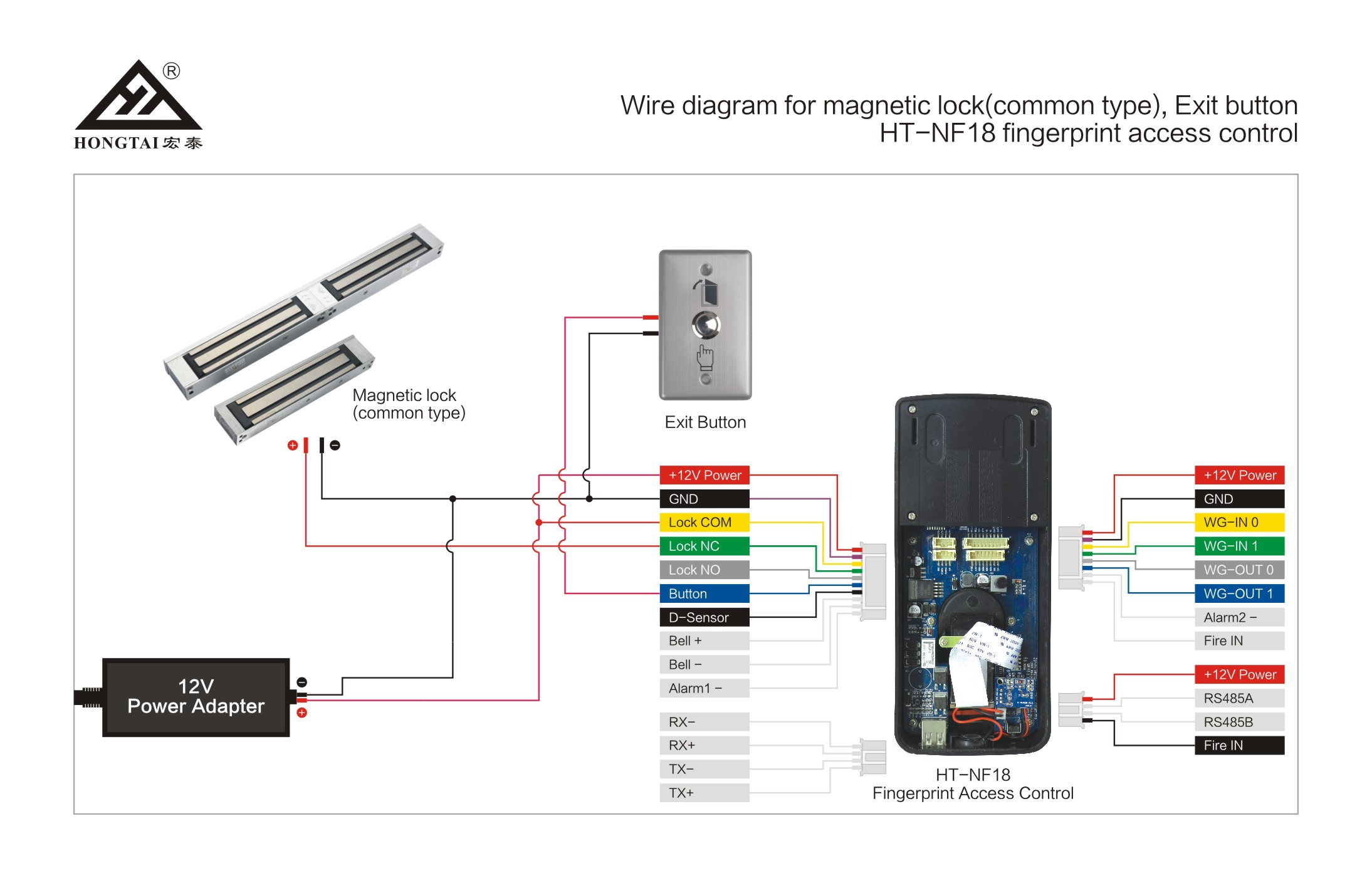

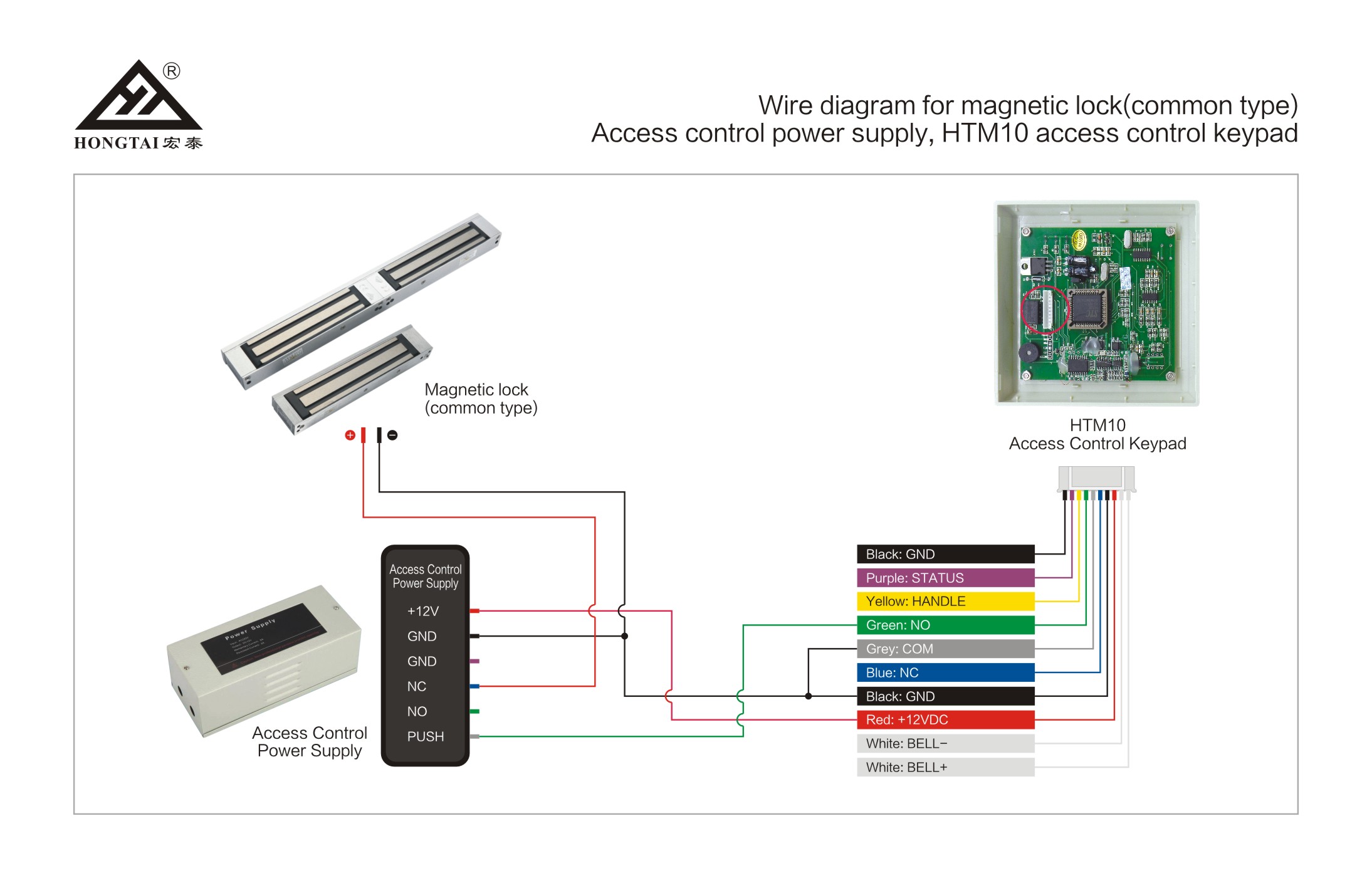

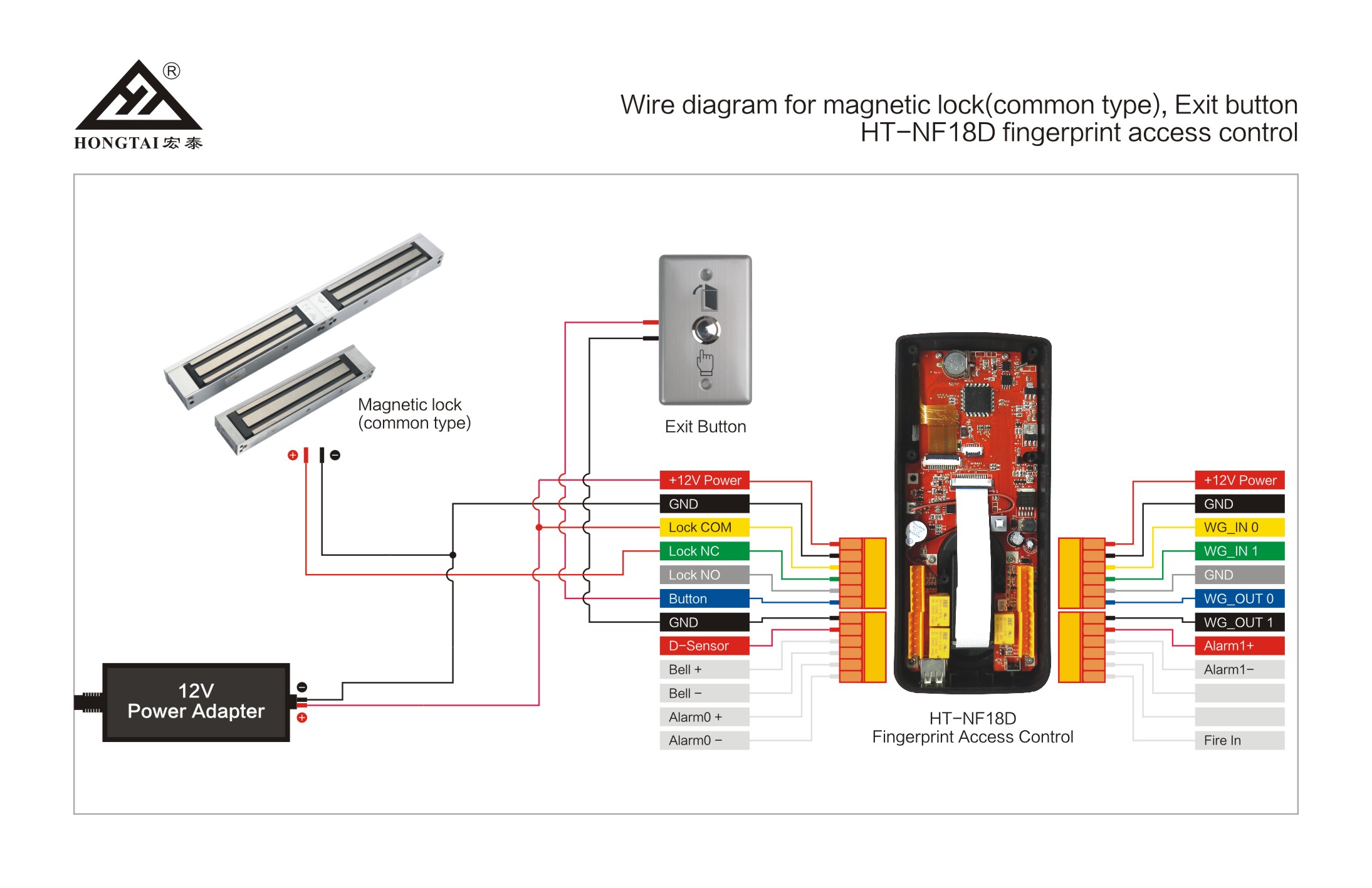

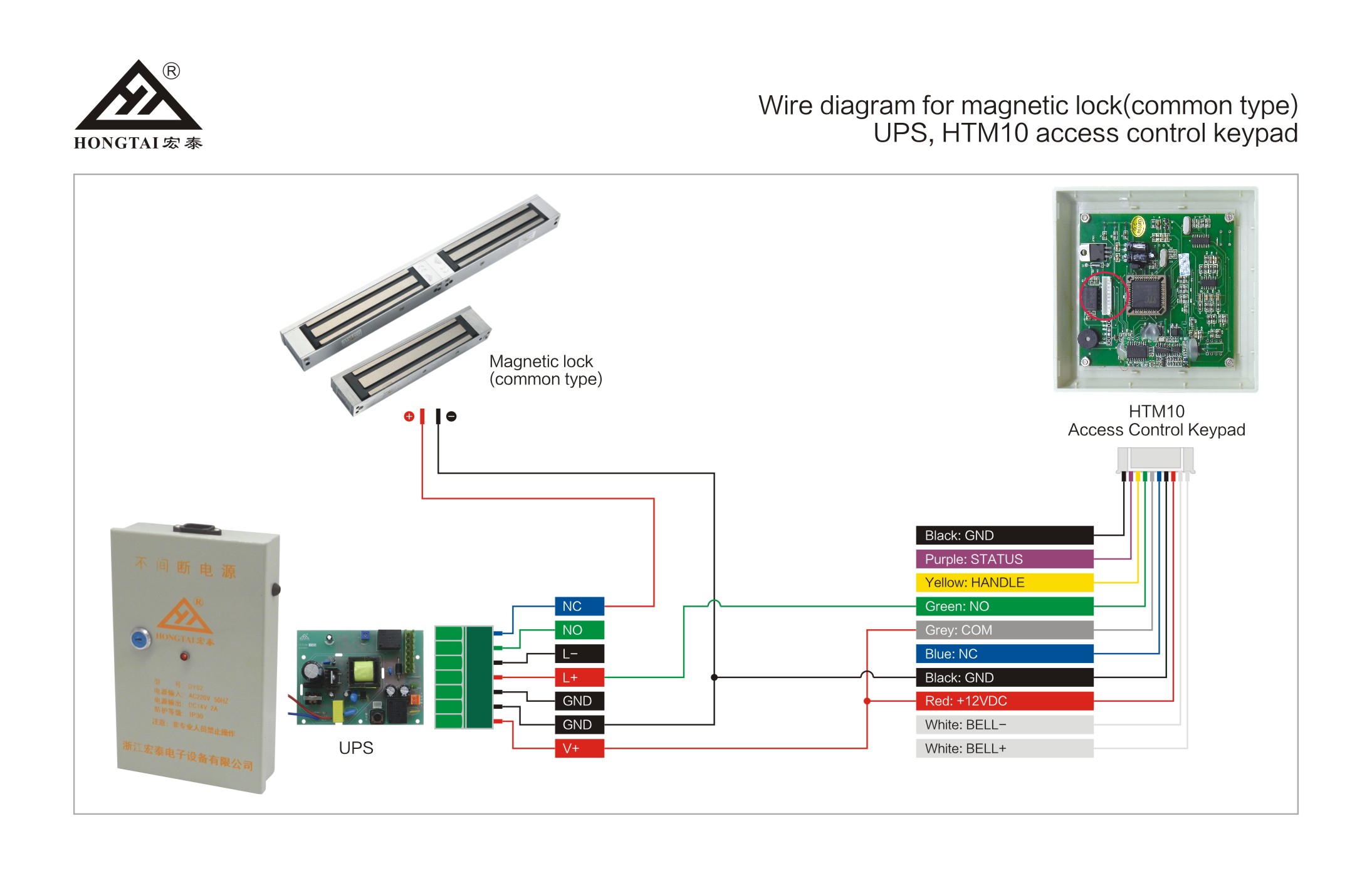

Wiring Diagram

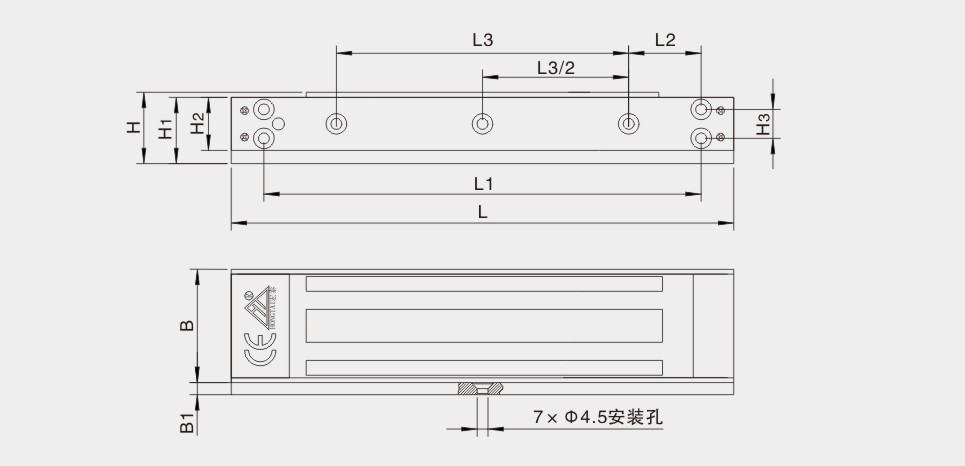

Installation Dimension Diagram
型号 | DZ01G | DZ02G | DZ02GY | DZ03G | DZ03GY | DZ04G | DZ04GY | DZ05G | DZ05GY |
L | 80 | 166 | 214 | 208 | 241 | 238 | 271 | 231 | 264 |
L1 | 65 | 136 | 204 | 181 | 214 | 211 | 214 | 204 | 237 |
L2 | 20 | 20 | 30 | 46.5 | 30 | 50 | 25 | 41.5 | |
L3 | 96 | 96 | 121 | 121 | 151 | 160 | 154 | 154 | |
B | 33 | 35 | 35 | 47 | 47 | 47 | 47 | 65 | 65 |
B1 | 4 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
H | 22.5 | 22.5 | 22.5 | 26 | 26 | 26 | 26 | 37 | 37 |
H1 | 21 | 21 | 21 | 24 | 24 | 24 | 24 | 35.5 | 35.5 |
H2 | 20 | 20 | 20 | 22 | 22 | 22 | 22 | 32.5 | 32.5 |
H3 | 无 | 无 | 无 | 12 | 12 | 12 | 12 | 19 | 19 |
注：双联磁锁的尺寸相当于上表对应型号两把并在一起。 | |||||||||

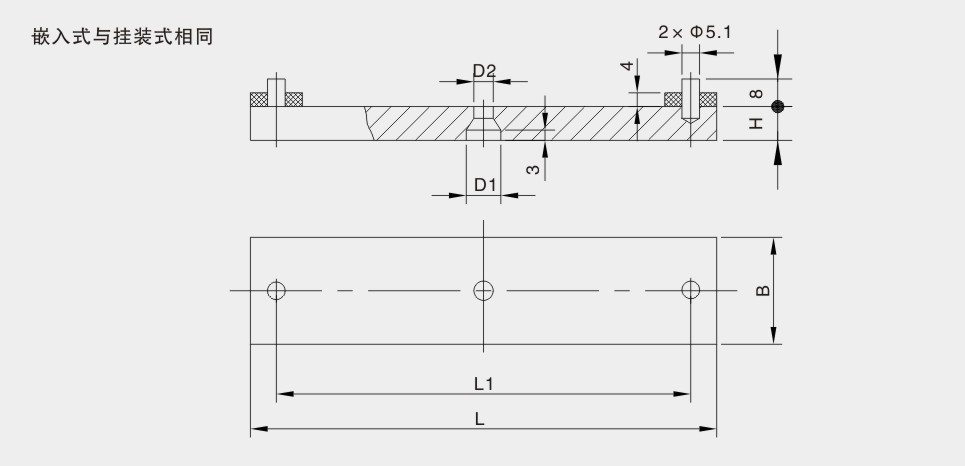

型号 | 公斤级 | 外形尺寸及安装尺寸 | |||||
L | L1 | B | H | D1 | D2 | ||
DZ01 | 150kg | 135 | 120 | 31 | 11 | φ10 | φ5.5 |
DZ02 | 150kg | 135 | 120 | 31 | 11 | φ10 | φ5.5 |
DZ03 | 280kg | 158 | 140 | 45 | 13 | φ16 | φ9 |
DZ04 | 350kg | 180 | 160 | 45 | 13 | φ16 | φ9 |
DZ05 | 500kg | 175 | 150 | 62 | 13 | φ16 | φ9 |

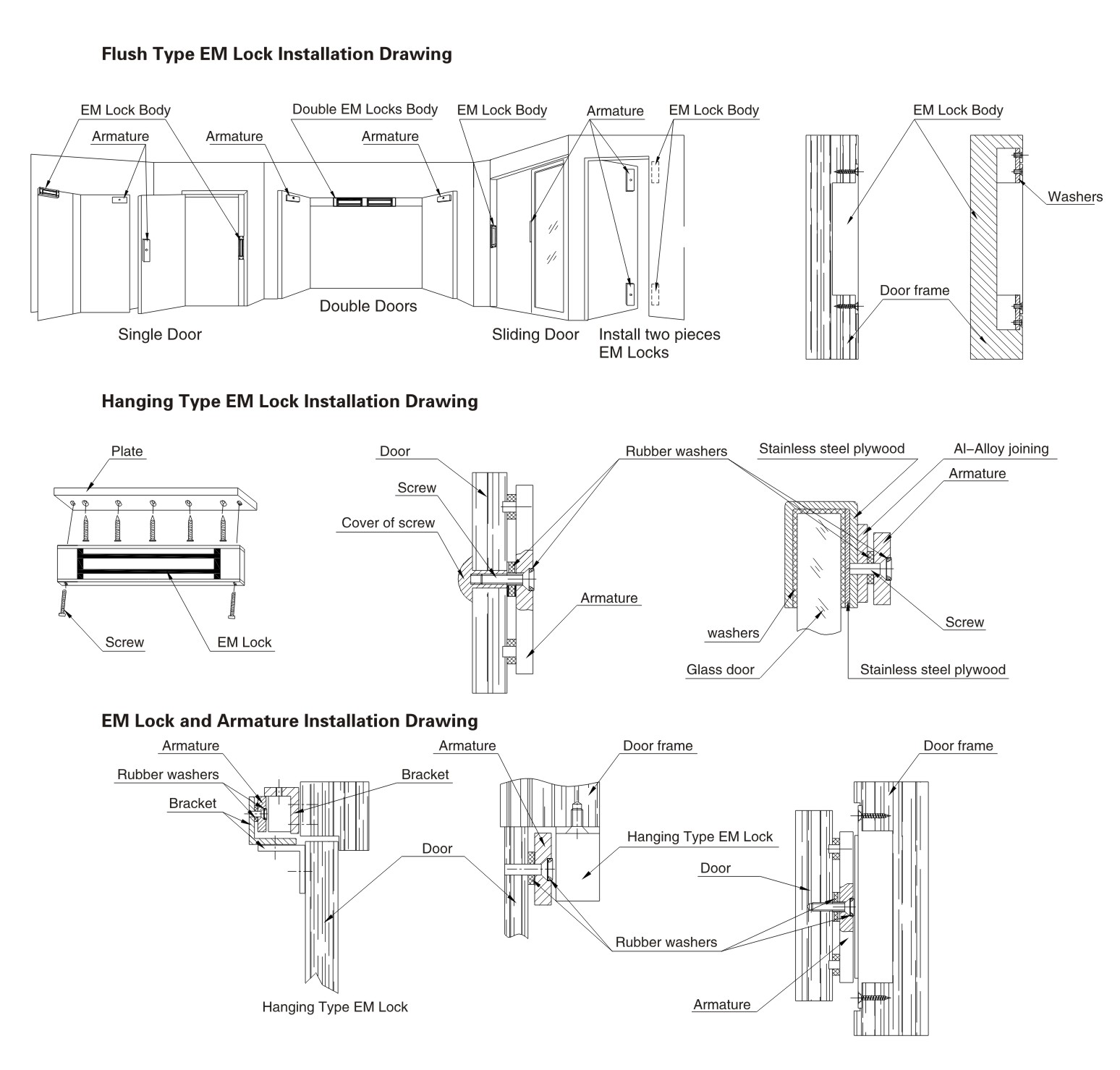

EM Lock Installation Reference Drawing
