DZ03GS(600Lbs×2)

Electromagnetic locks are widely used in important buildings,become vital parts in the high technology access control system.Compared with traditional locks,this series locks have high holding force,low power consumption,stable quality,monitor signal feedback,noiseless,anti-theft and meet the fire safety requirement

Our silicon steel sheet uses non-remanence and imported fireproofing material.In order to keep the steady of working,adopt low power and surge protection. Four mounting holes design increase the fixing force.The export-oriented electromagnetic locks have convenient wire hole and terminal.We also provide special installation brackets to confront kinds of environment.For the appearance of locks, Hongtai insists on high technological requirements,use anodic oxidation surface treatment,electroplating etc

There have more than 40 "Hongtai" electromagnetic locks,60kgs to 500kgs are available for your choice

Technical Parameters
600Lbs*2 Hanging Type EM Lock
Lock size:L416.0*W47.0*H27.5mm
Holding force:600Lbs*2(280kgs*2)
Working voltage:DC12V
Working current:≤600mA
Professional device:surge absorber
Suitable for:metal door,wooden door,glass door,fireproof door
Security type:fail safe type(without power,it unlock)
Weight:4.6kgs

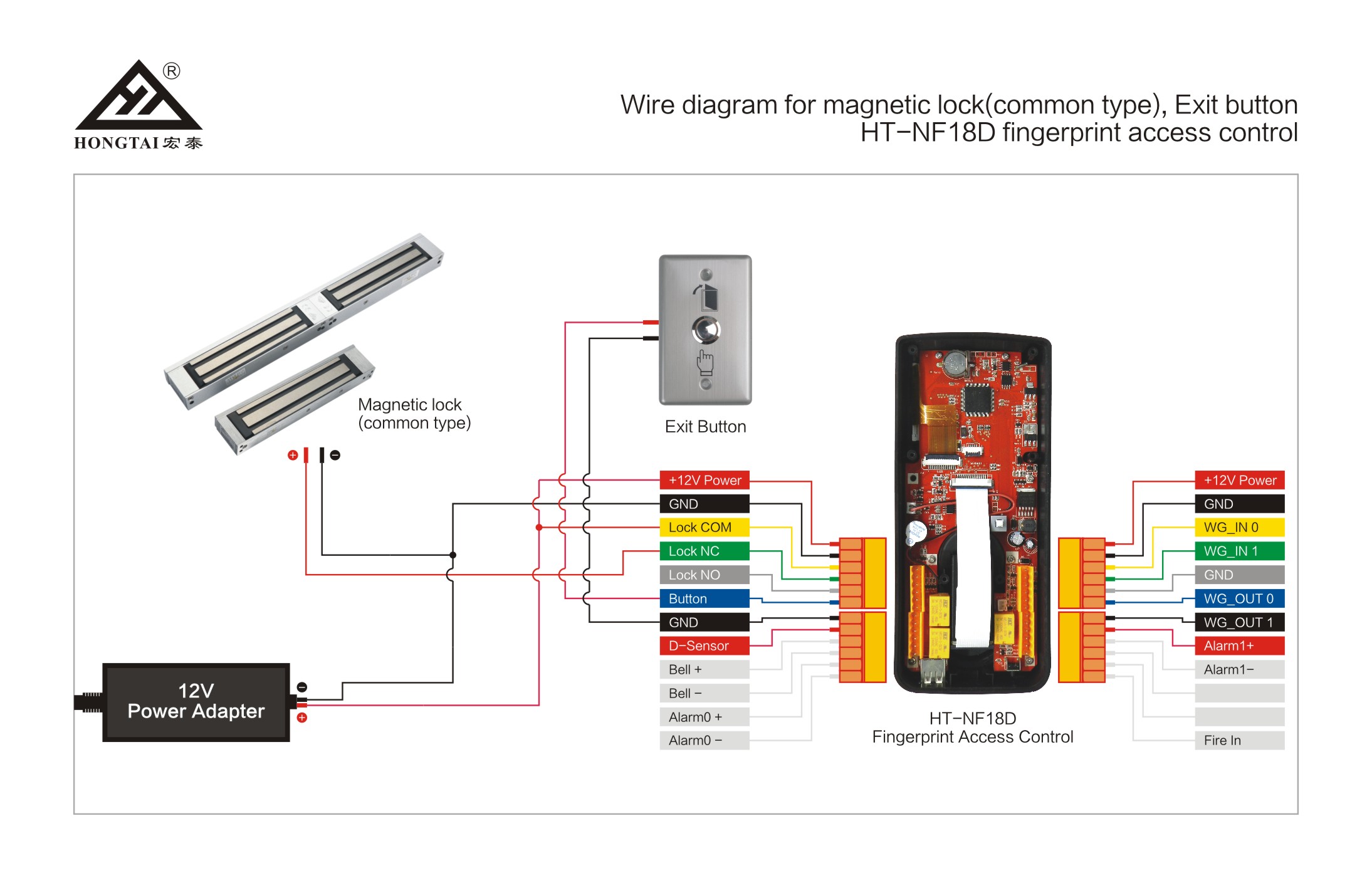

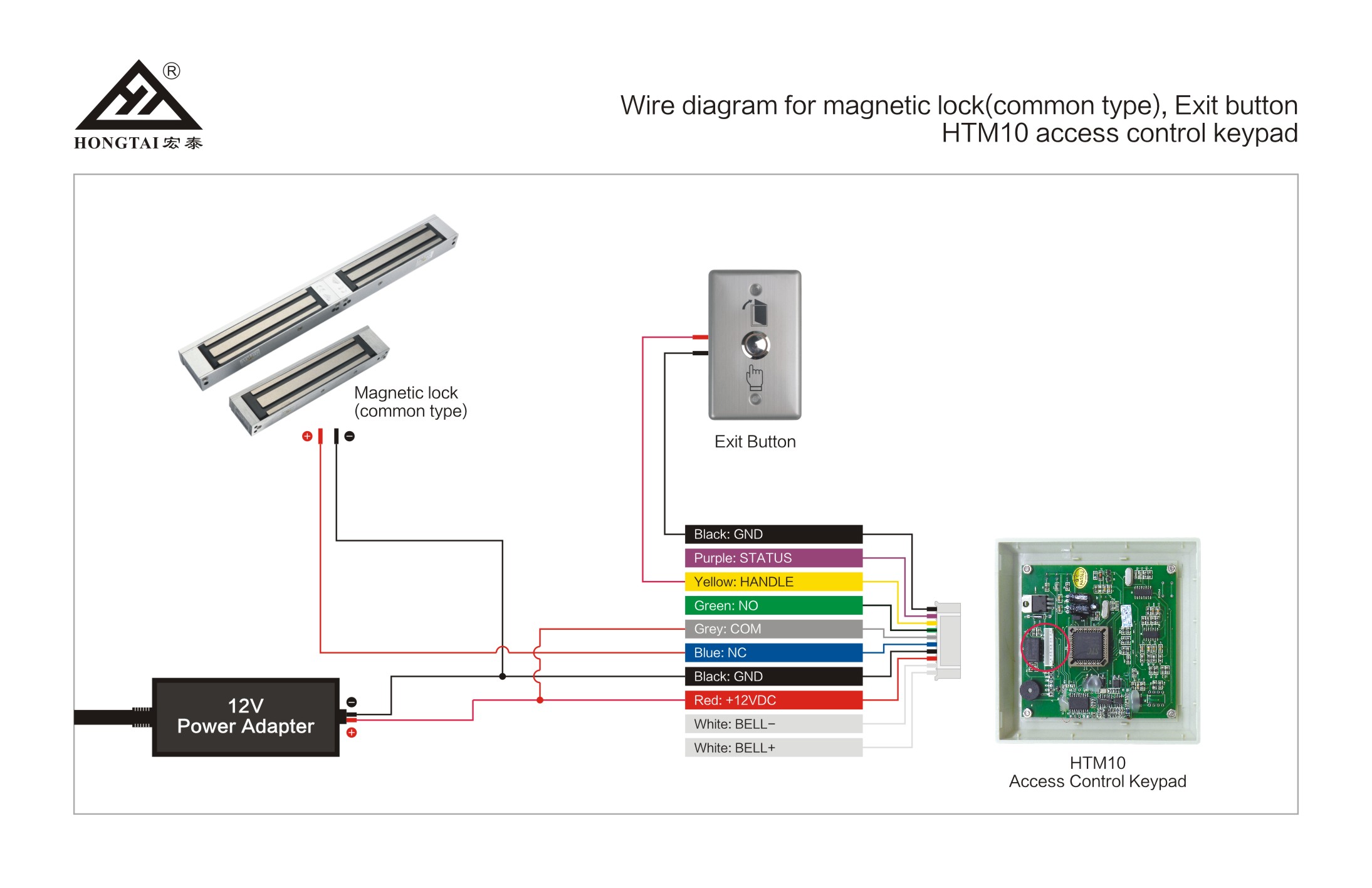

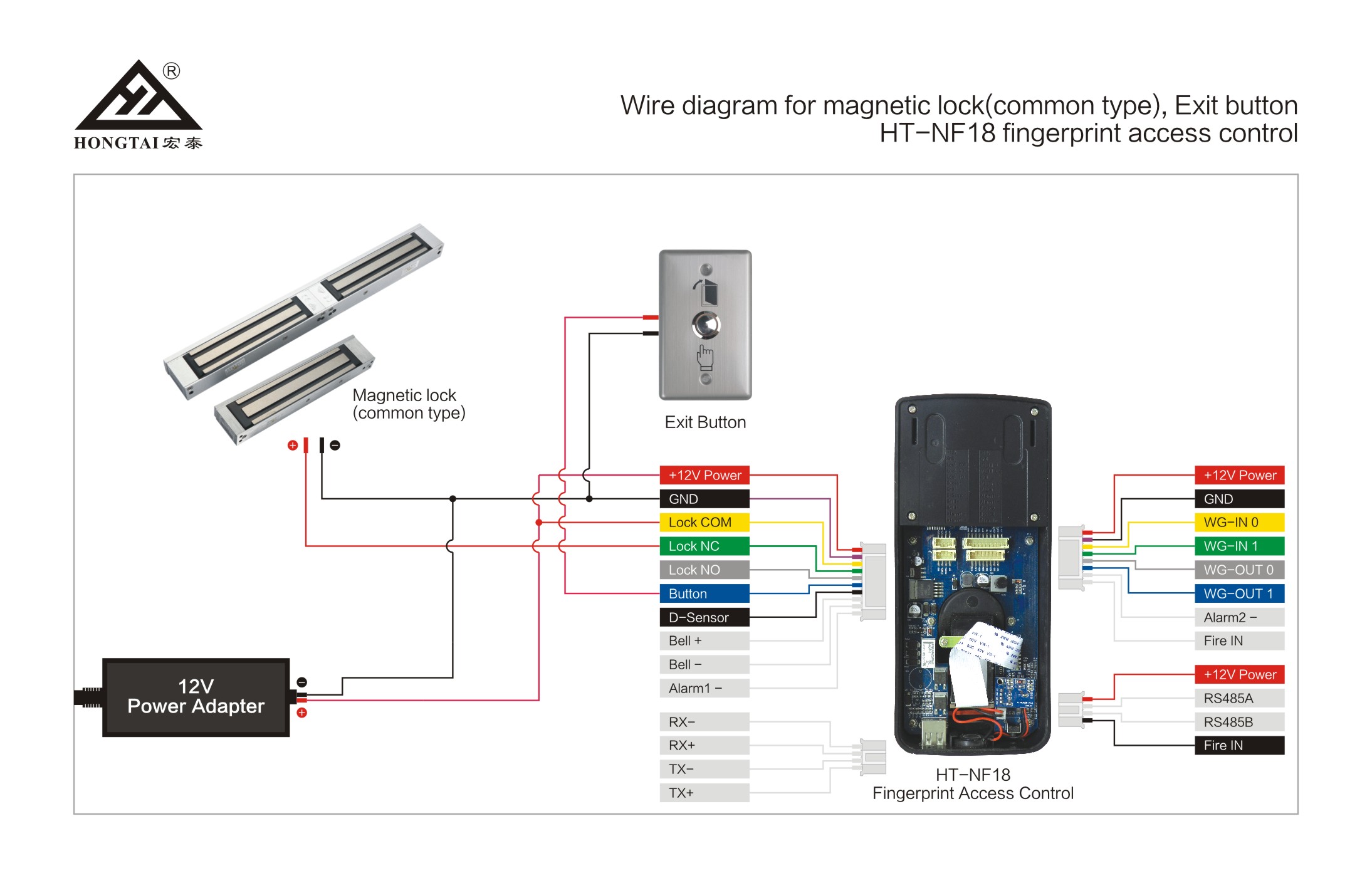

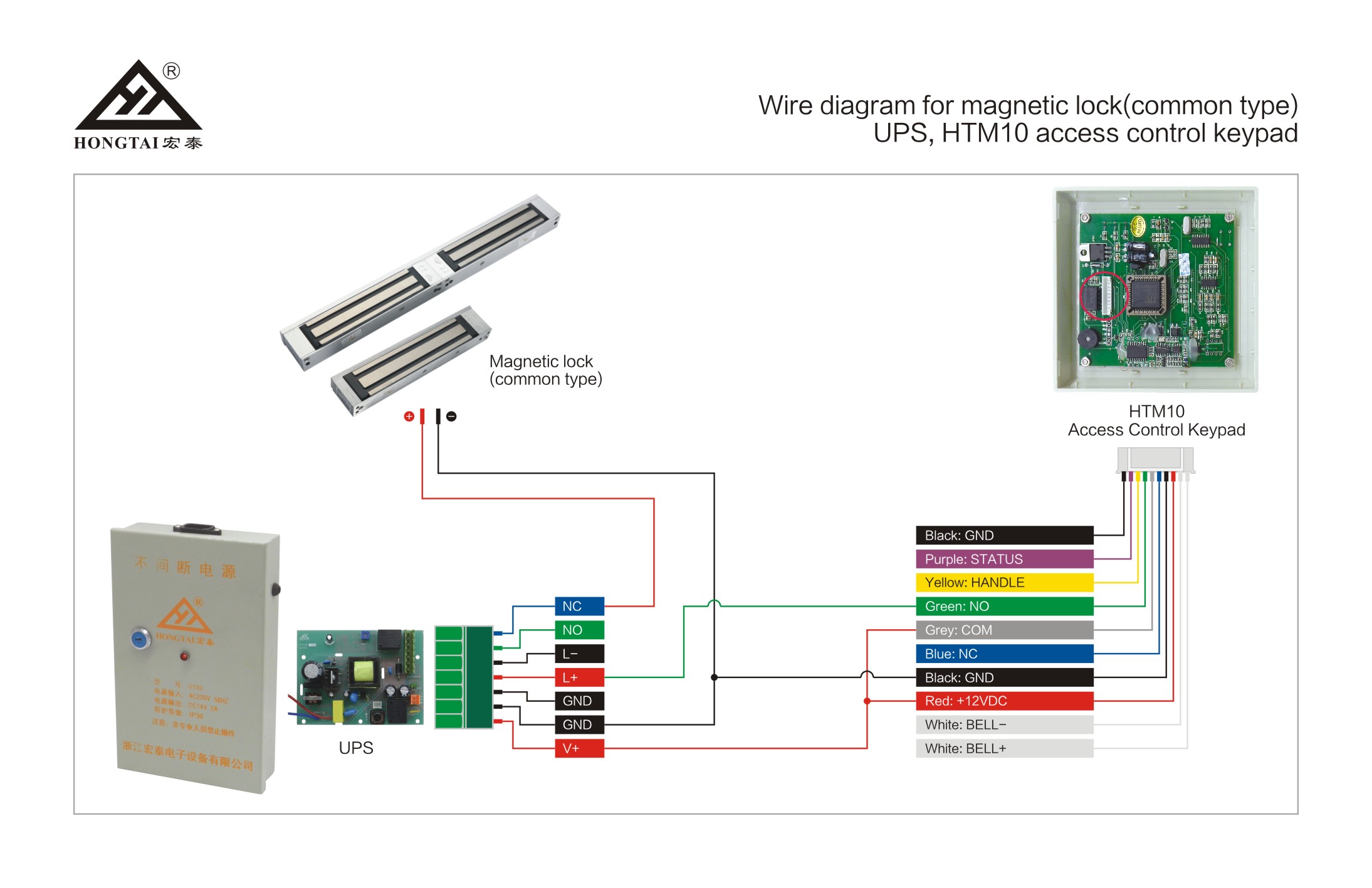

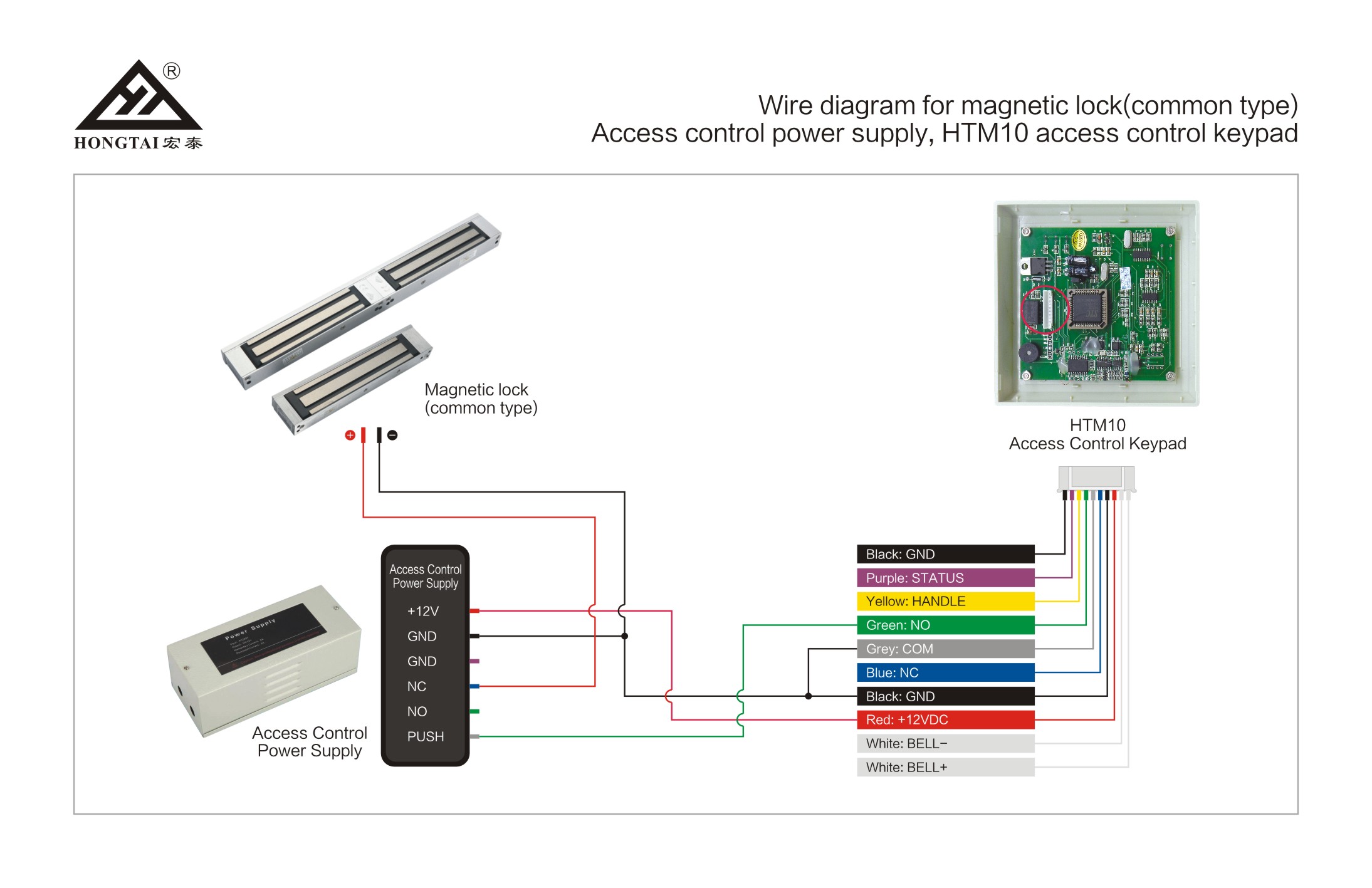

Wiring Diagram

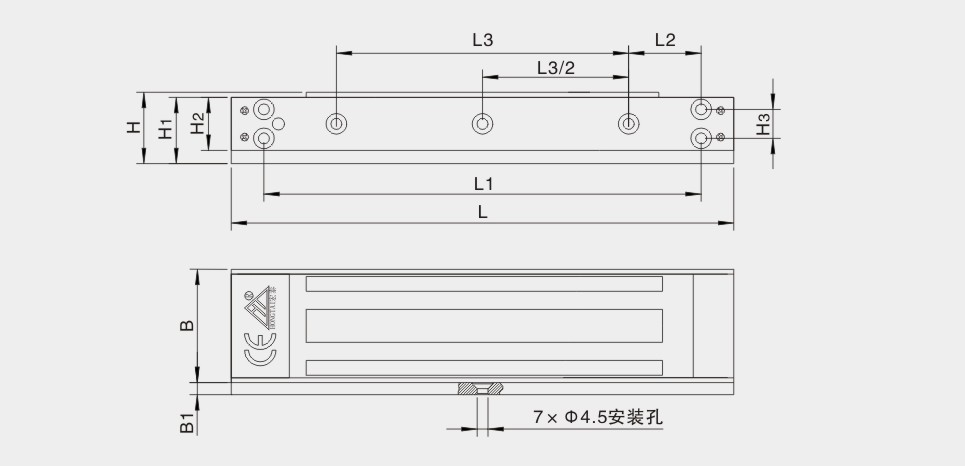

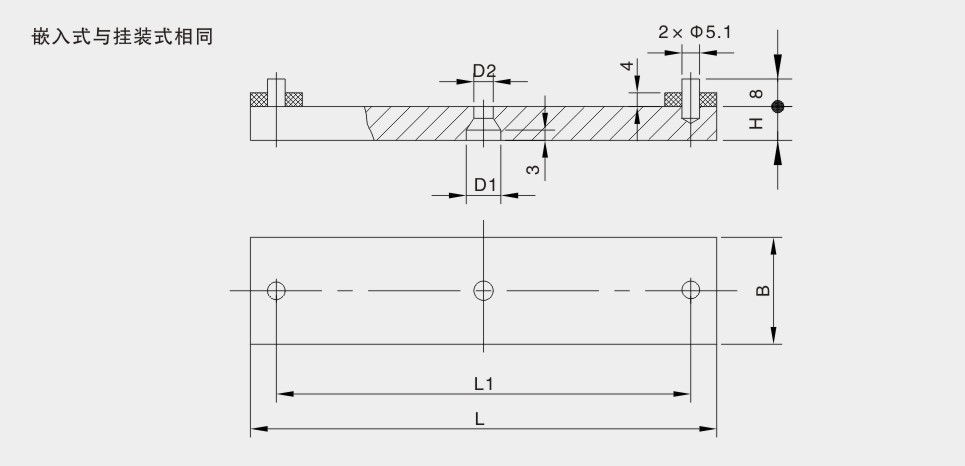

Installation Dimension Diagram

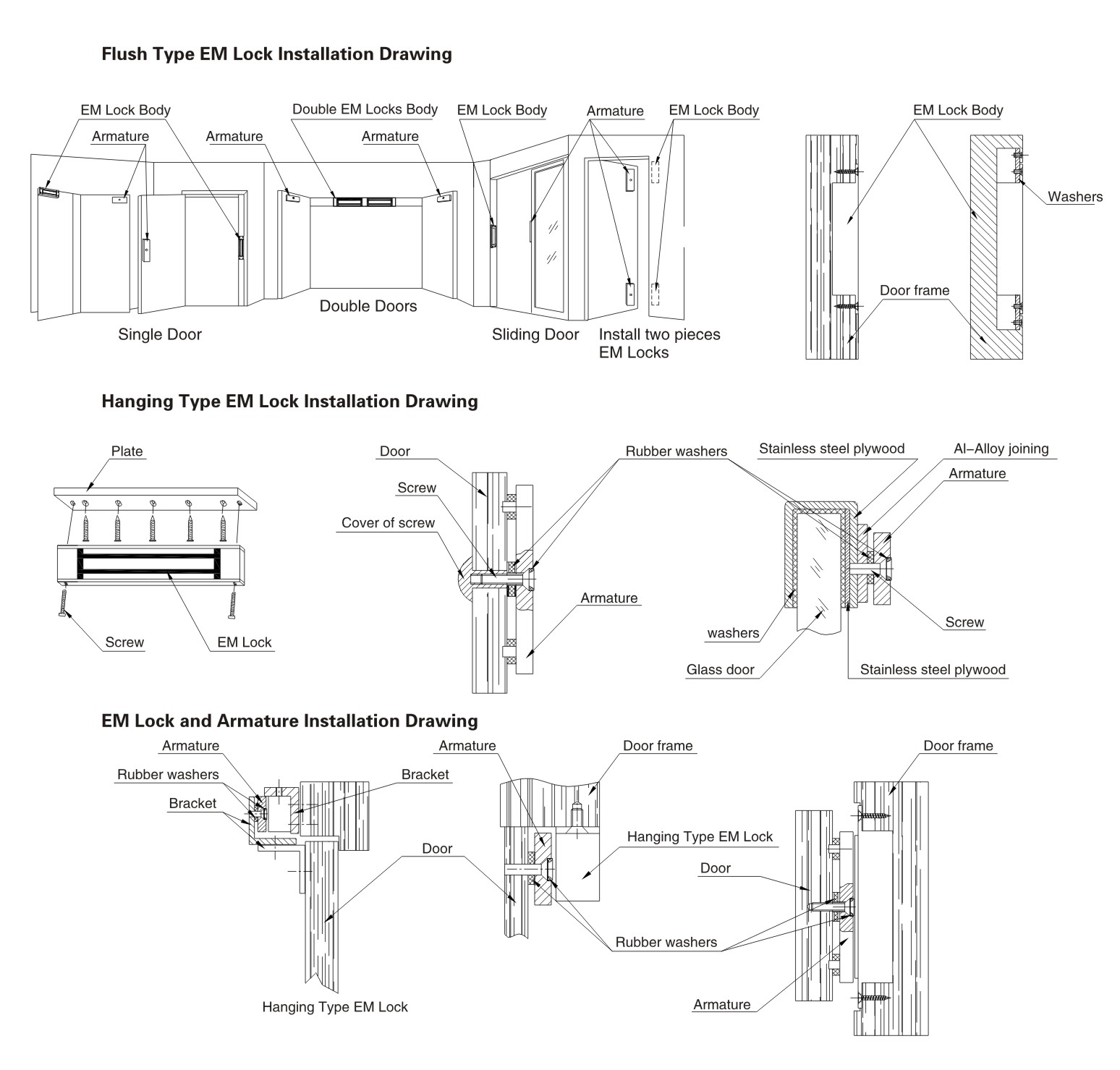

EM Lock Installation Reference Drawing
