Silence electric rim lock is specially designed for access control system and building conversational system Open by electricity, swivel knob or key.Long lifetime,no power consumption when it is standby,high safety
This series locks are used for resident's house,specially for gate, government,school,hotel,factory warehouse
Technical Parameters
※Voltage:DC12V±10%
※Unlocking current:1.5~3A
※Min Unlocking Power:10W
※Coil ground insulation:DC500V
※Energizing:discontinuous,energized＜7S
※Unlocking time: 0.5S
※Temperature:－40℃～50℃
※Static pressure:6000N
※Service life:300,000 times

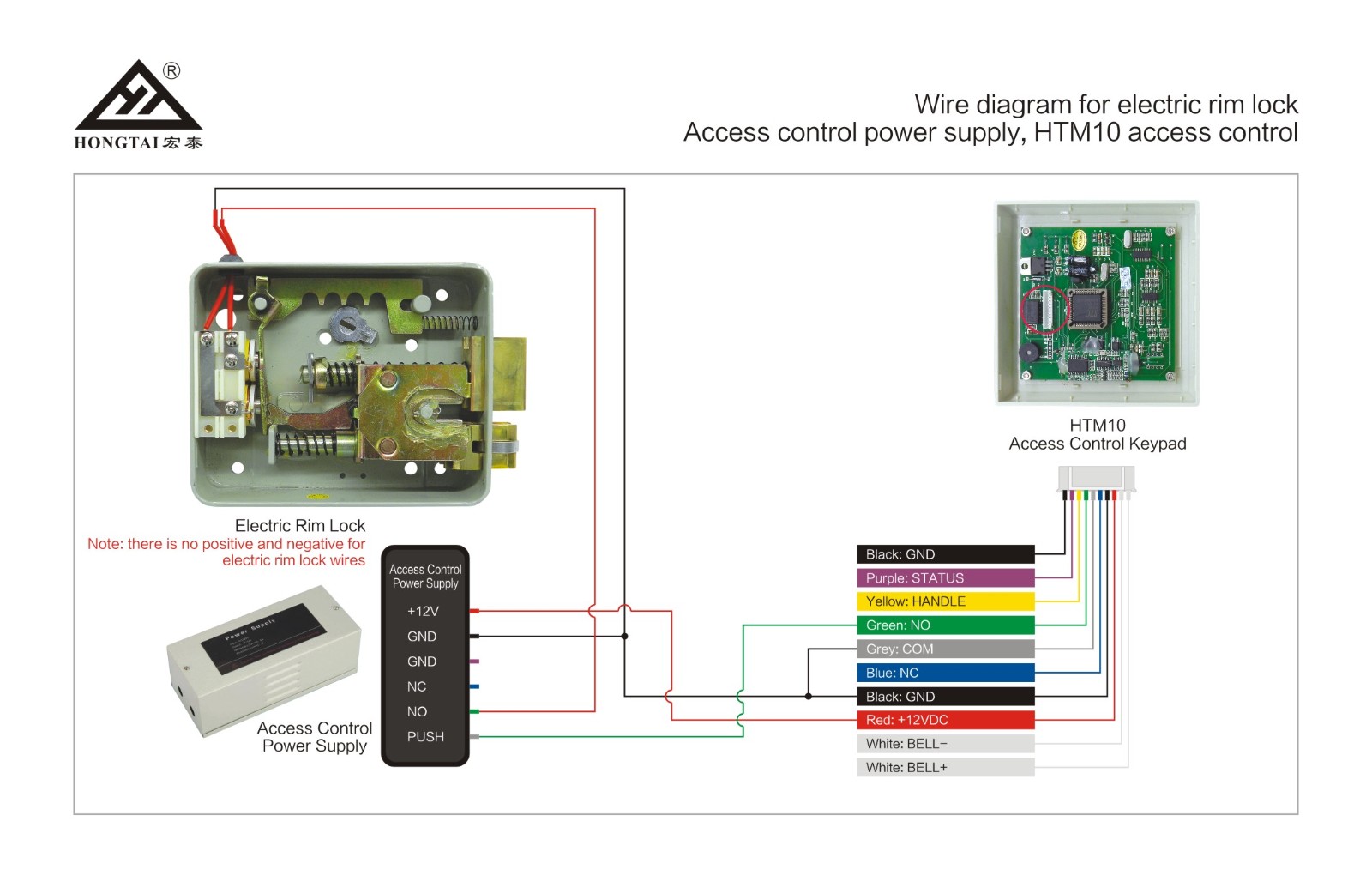

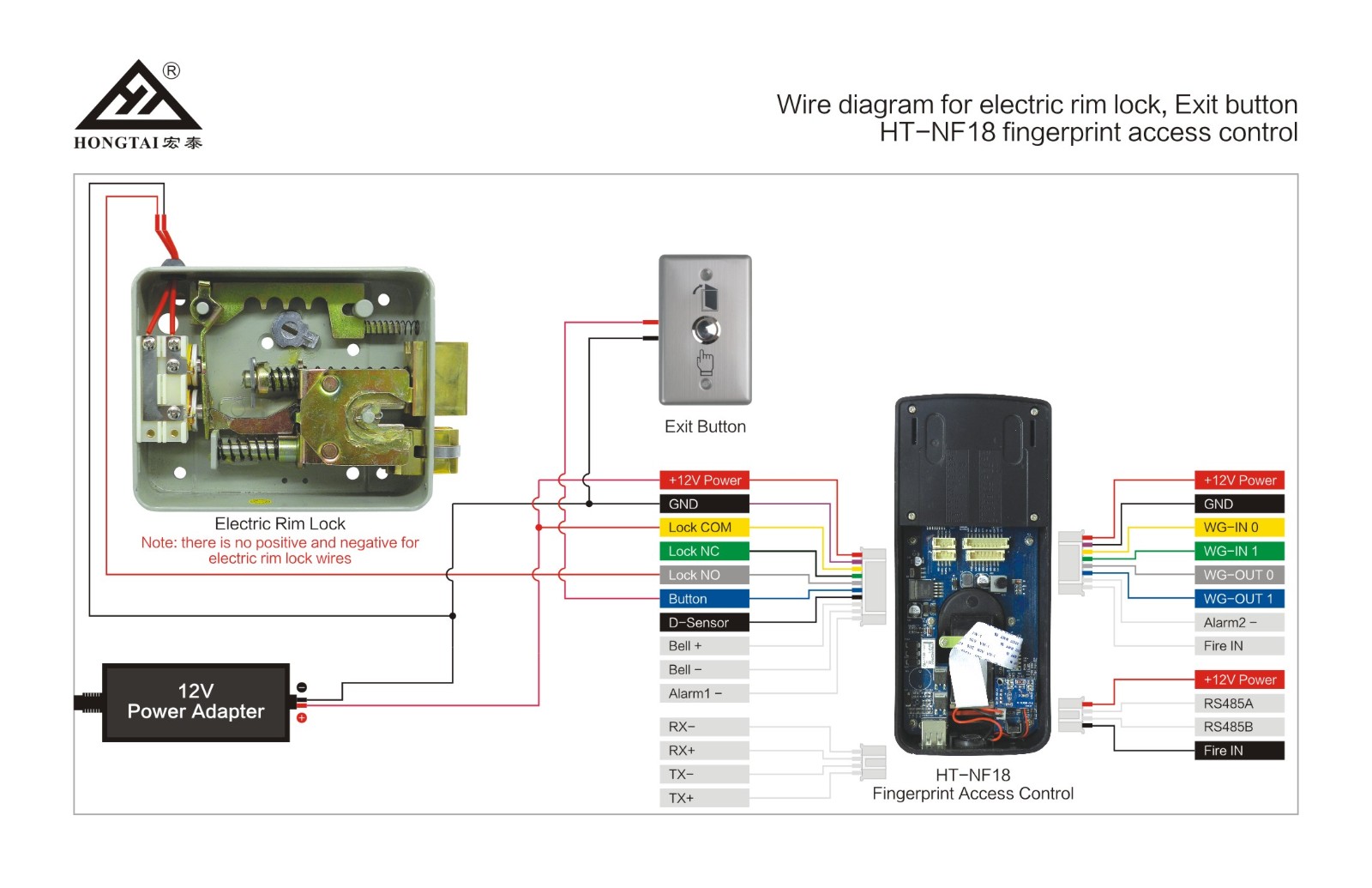

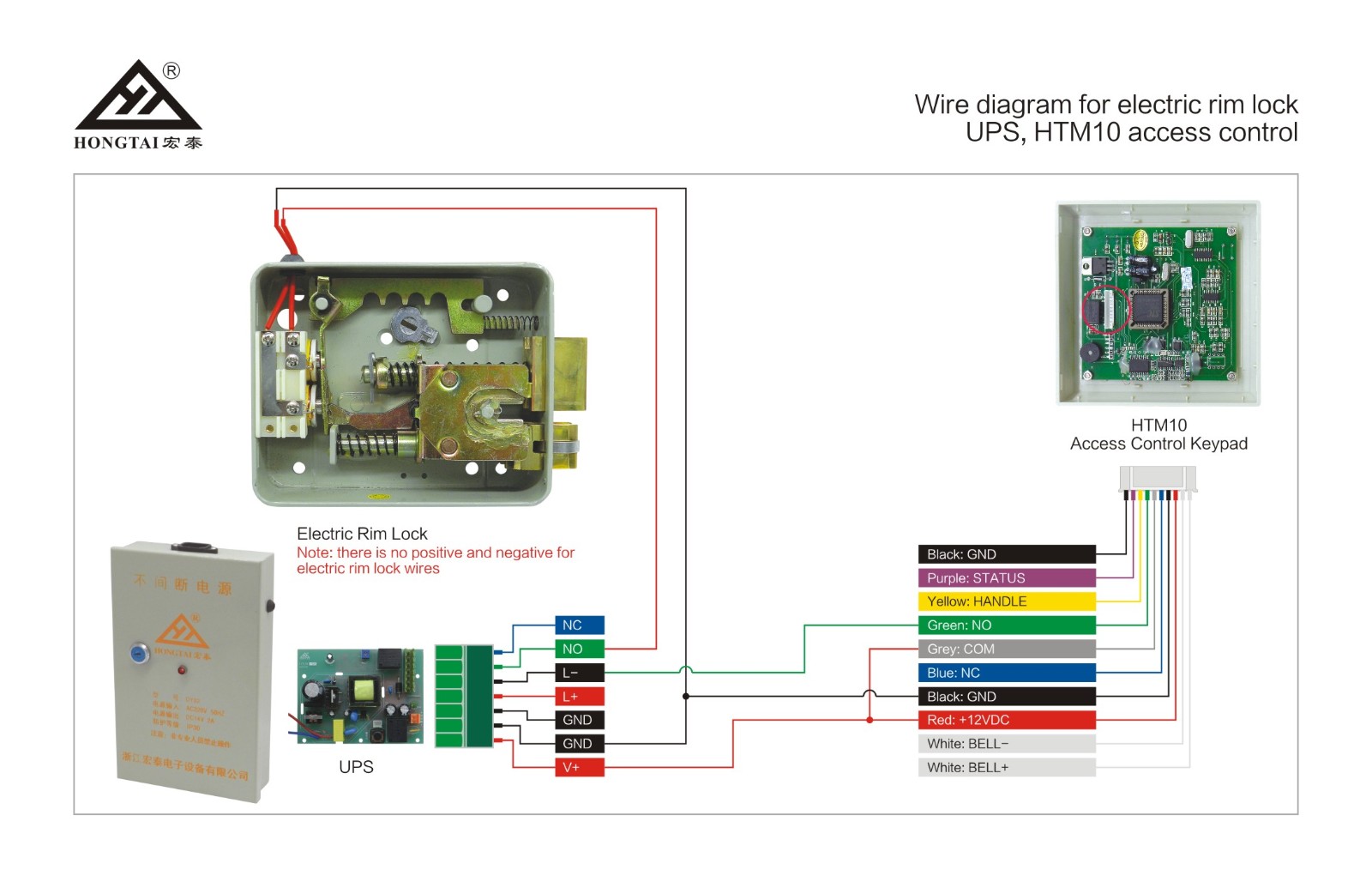

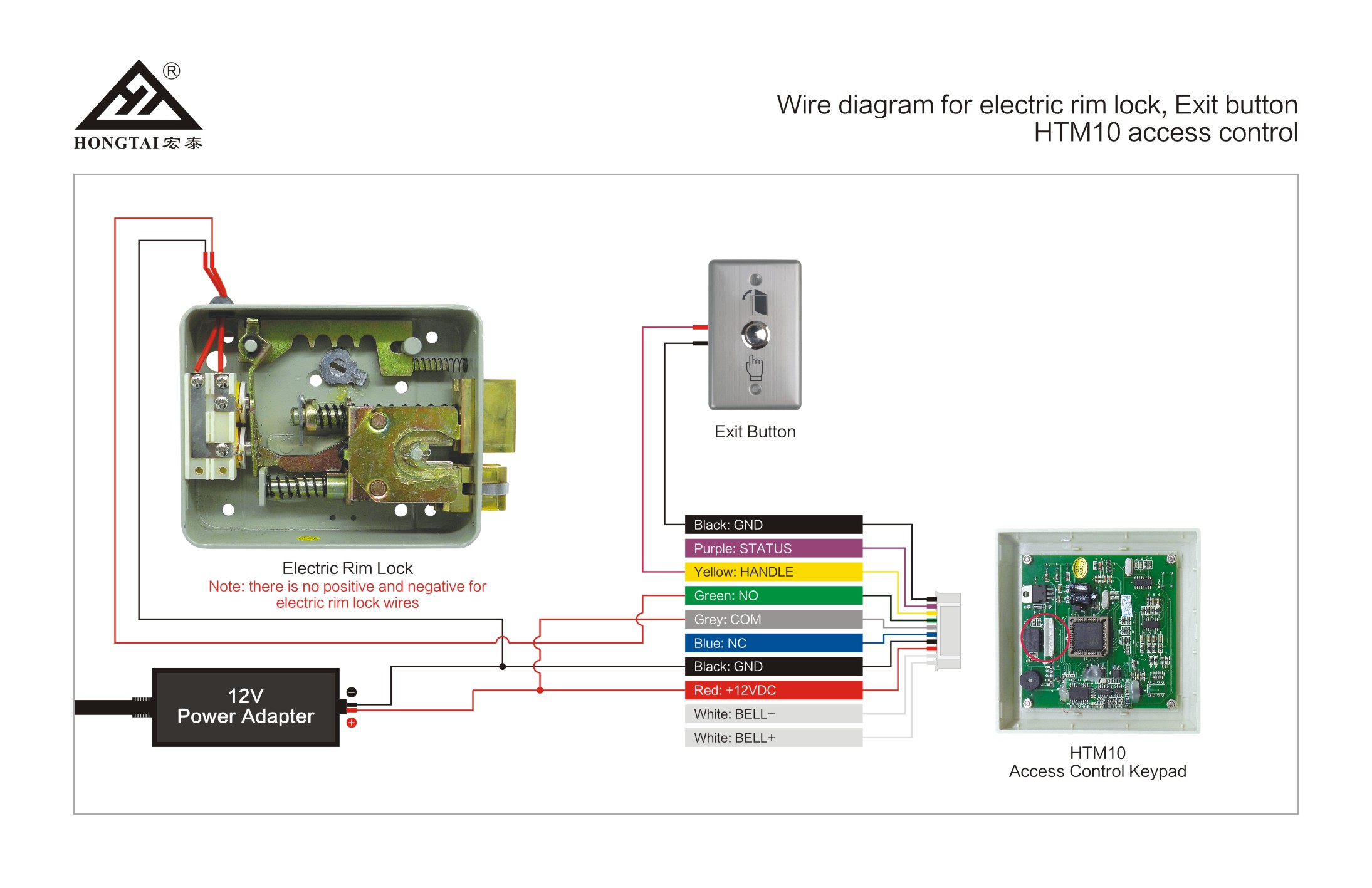

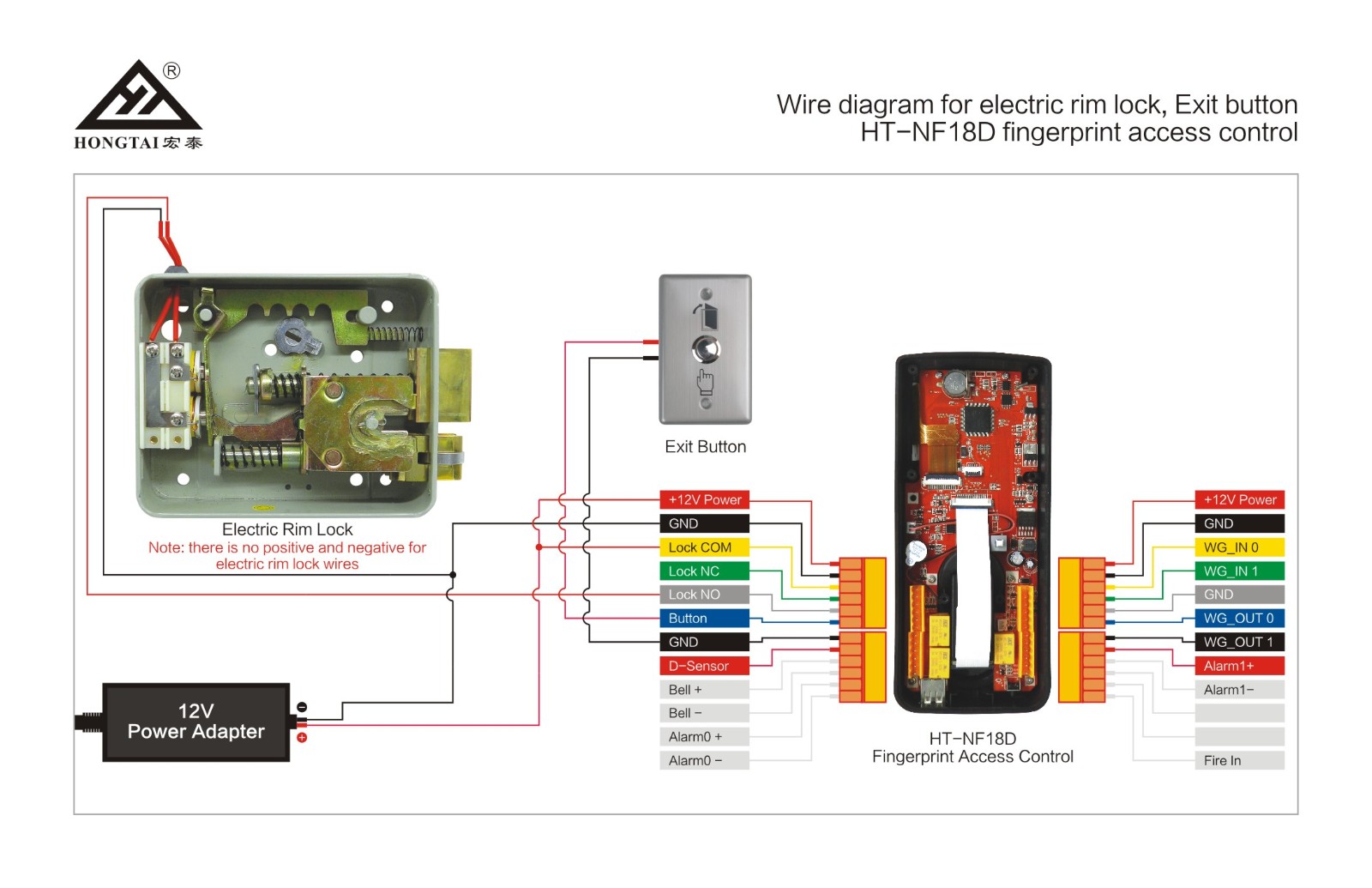

Wiring Diagram
The explanation for electric rim lock code
Y-Outward opening door
N-Inward opening door
I-Right hand door
Z-Left hand door
5-Single cylinder
4-Double cylinders
6-Swivel knob
8-Pushbutton
DT-Titanium plating
U-Roller latch

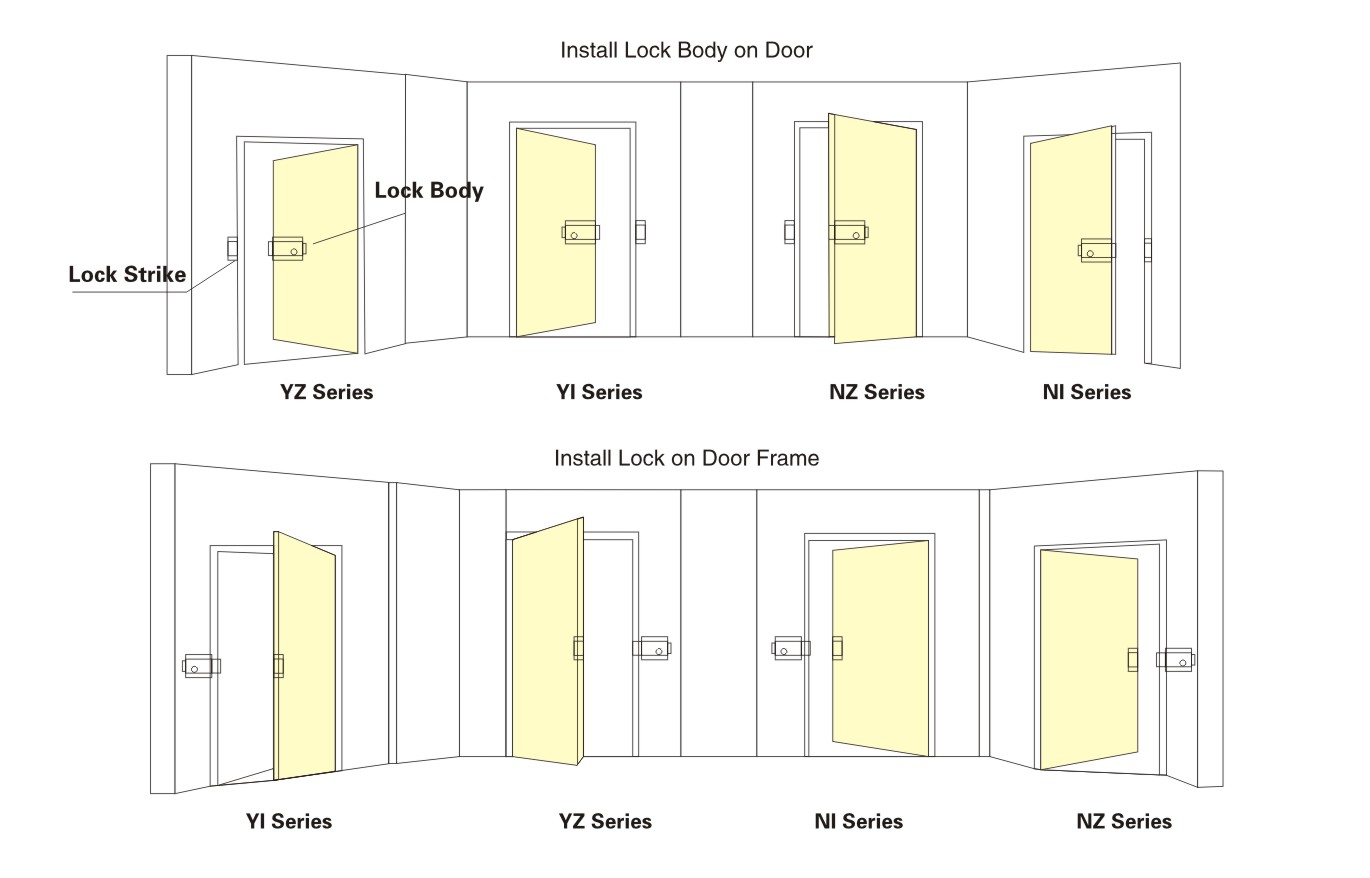

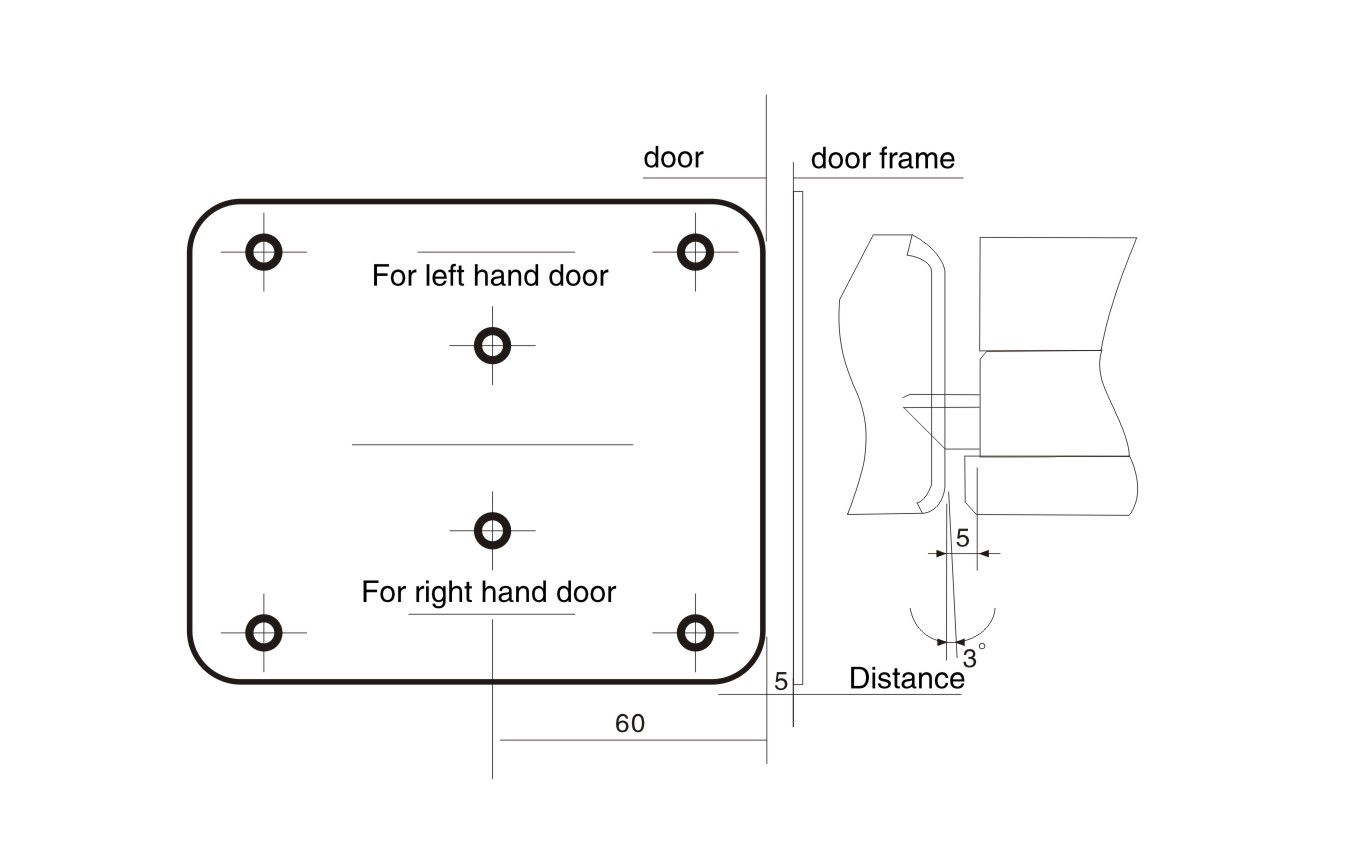

Installation Instruction
