Performance
Intelligent Locks were invented by "Hongtai"company and attained " Technical Invention Letter of Patent"
This series locks combine the virtues of electric rim lock and electromagnetic lock,overcome the loud noise of electric rim lock and high power consumption of electromagnetic lock
Convenient installation,no need to identify left /right hand door or inward/outward door
Decrease the requirement of door closer as they can lock automatically and without collision when the door is closed.Solve the door easily deformed as he high strength of door closer,extend the door's lifetime
Detect state of latch.when lock doesn't lock well,can lock again
Low noise,long lifetime,low power consumption
Various opening methods:access control,intercom,remote control,ID card,key etc
Voltage:12-24VDC
Can not open the lock when separate the magnetic sensor,make it safer
Reverse voltage protection, short-circuit protection, sound light alarm when the hall fault
Output of latch state and output of door state are optional.If you need one of them,pls specify when you place order
Waterproof is optional

Technical Parameters
The length of extended latch 20mm
Static pressure for latch: 6,000N
Voltage:12-24VDC
Unlocking current 300mA
Standby current 16mA
Unlocking time<1S

Scope of Application
They are widely used in intelligent housing district,office building,school,army,prison,mobile base station,bank,ATM.They also can work with building conversational system,access control system

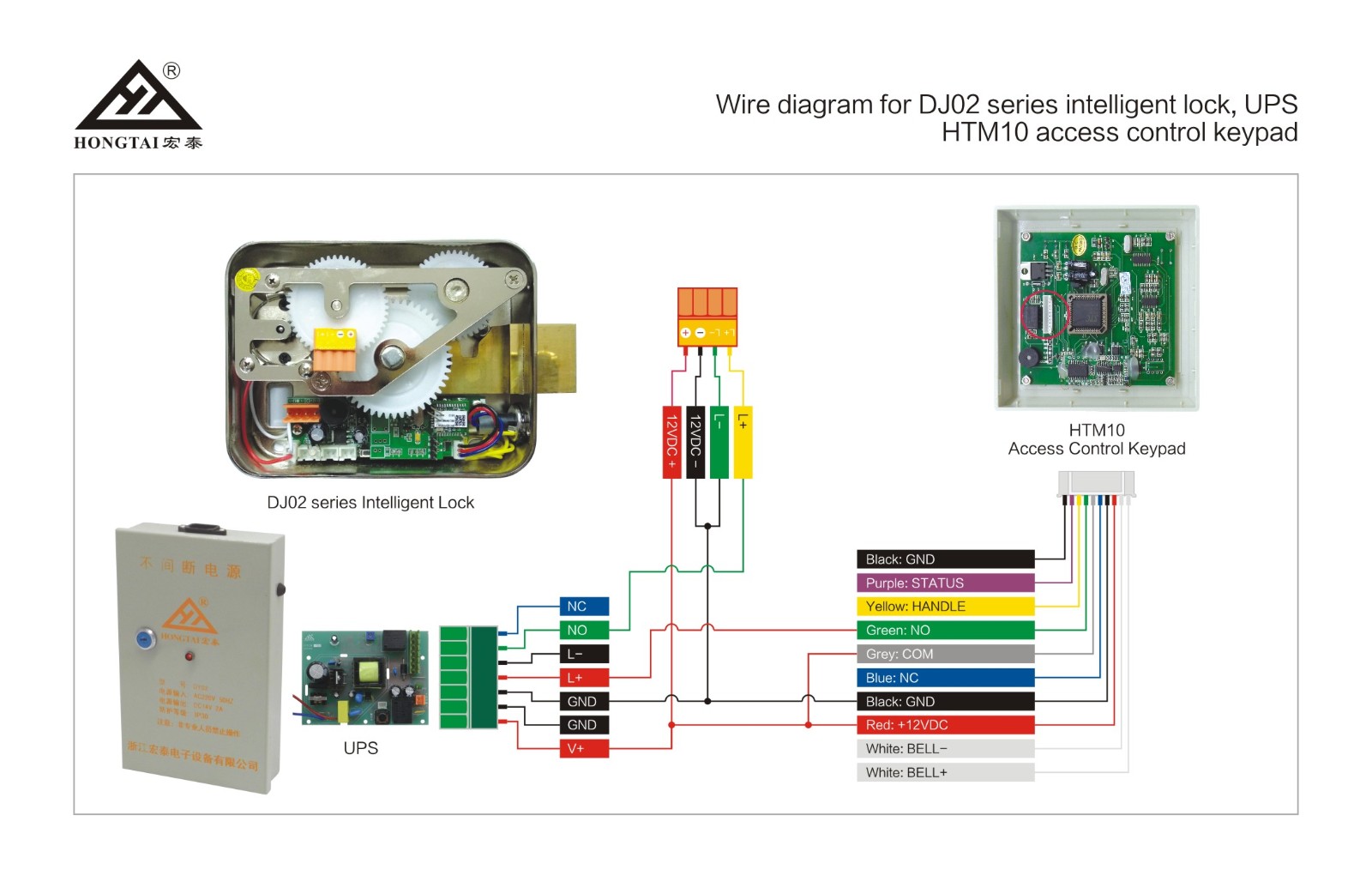

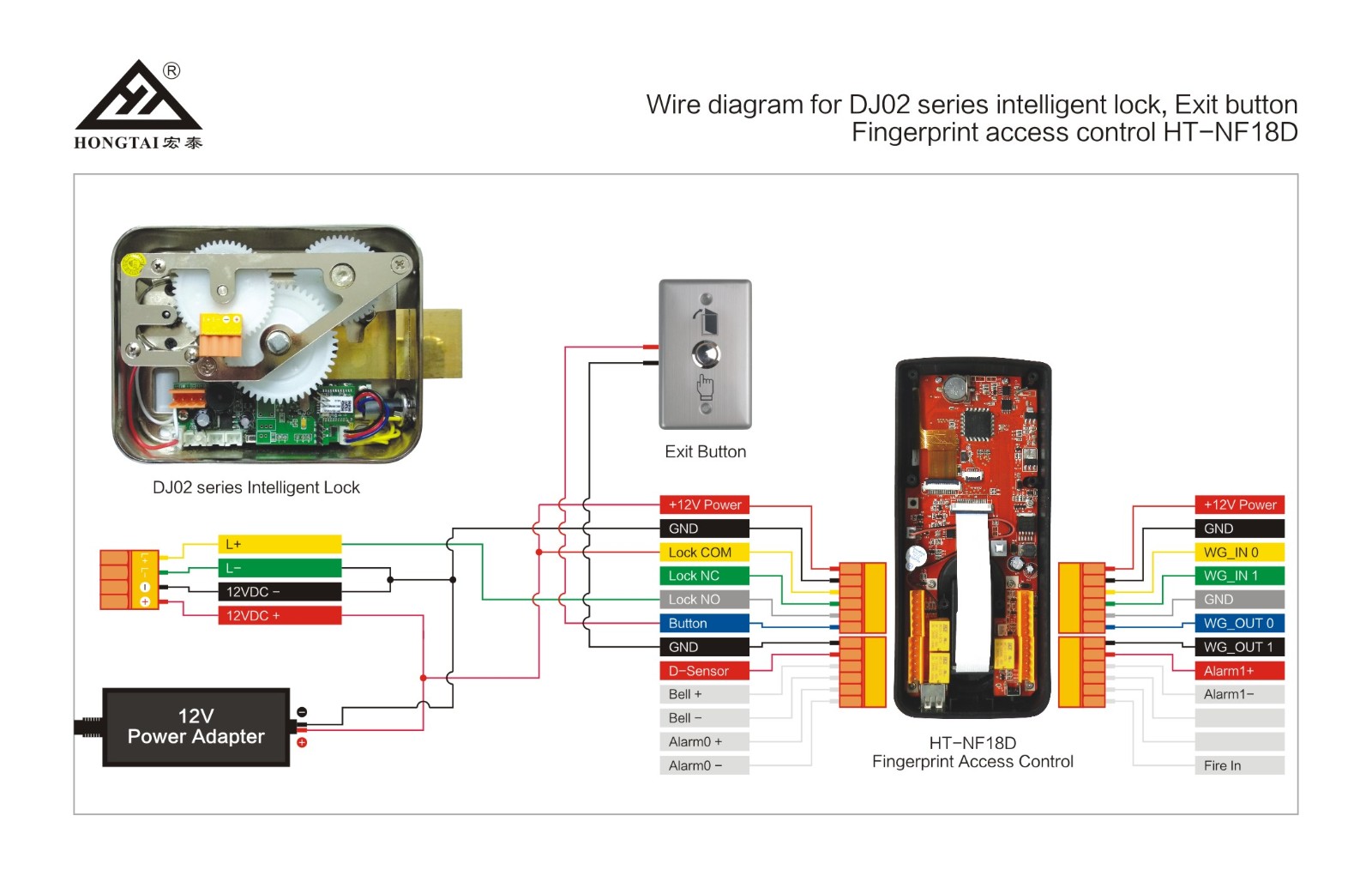

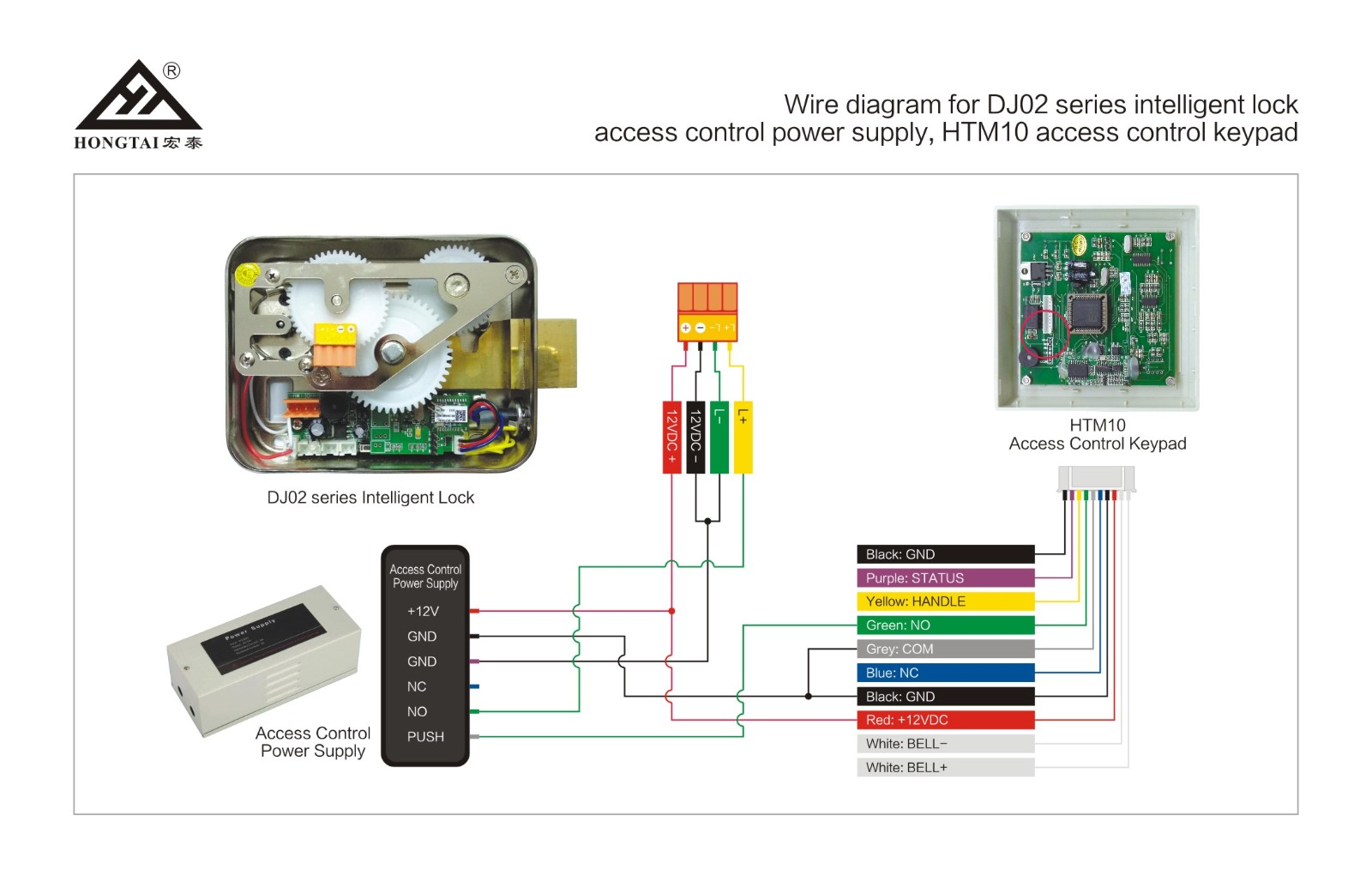

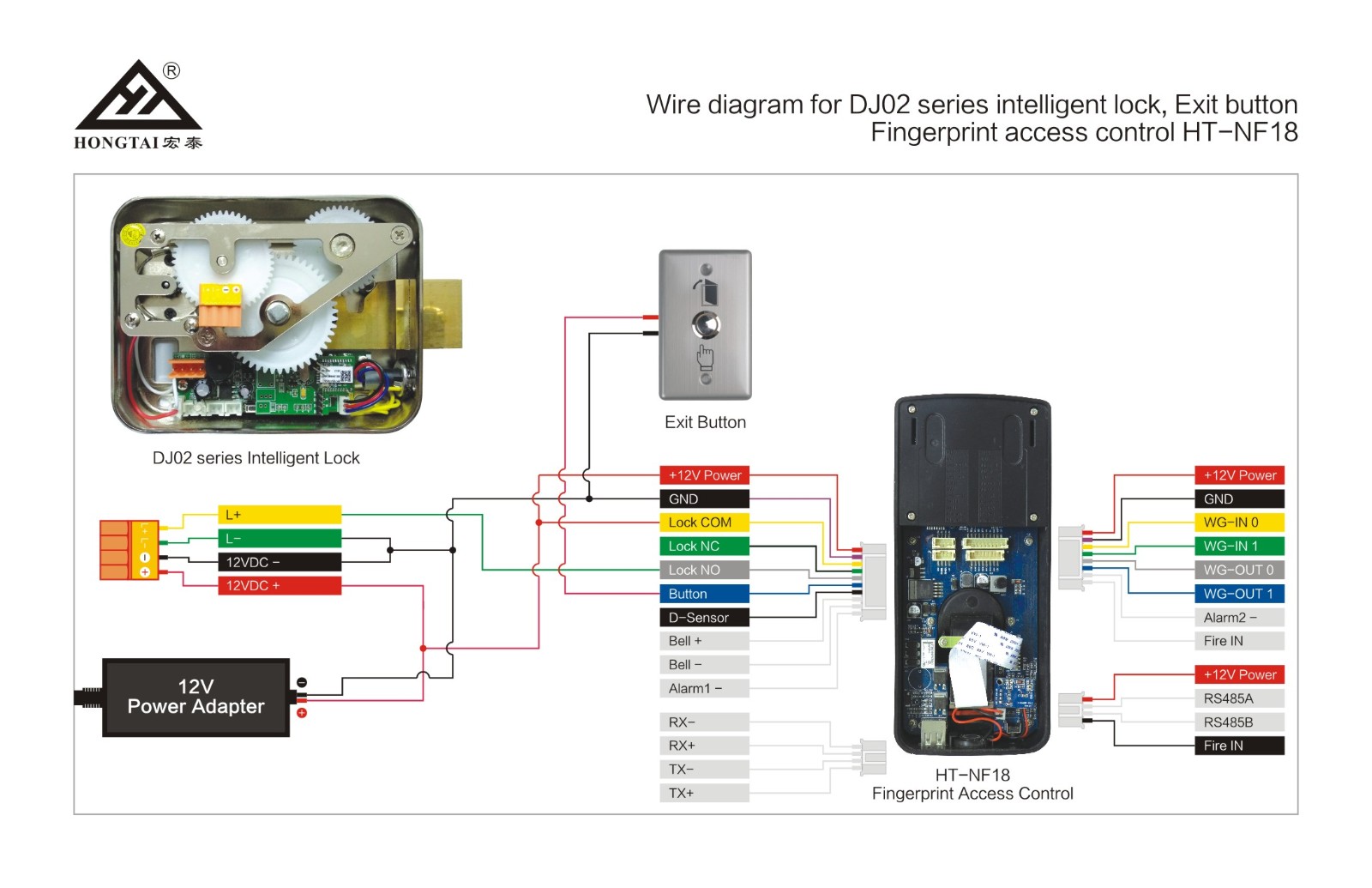

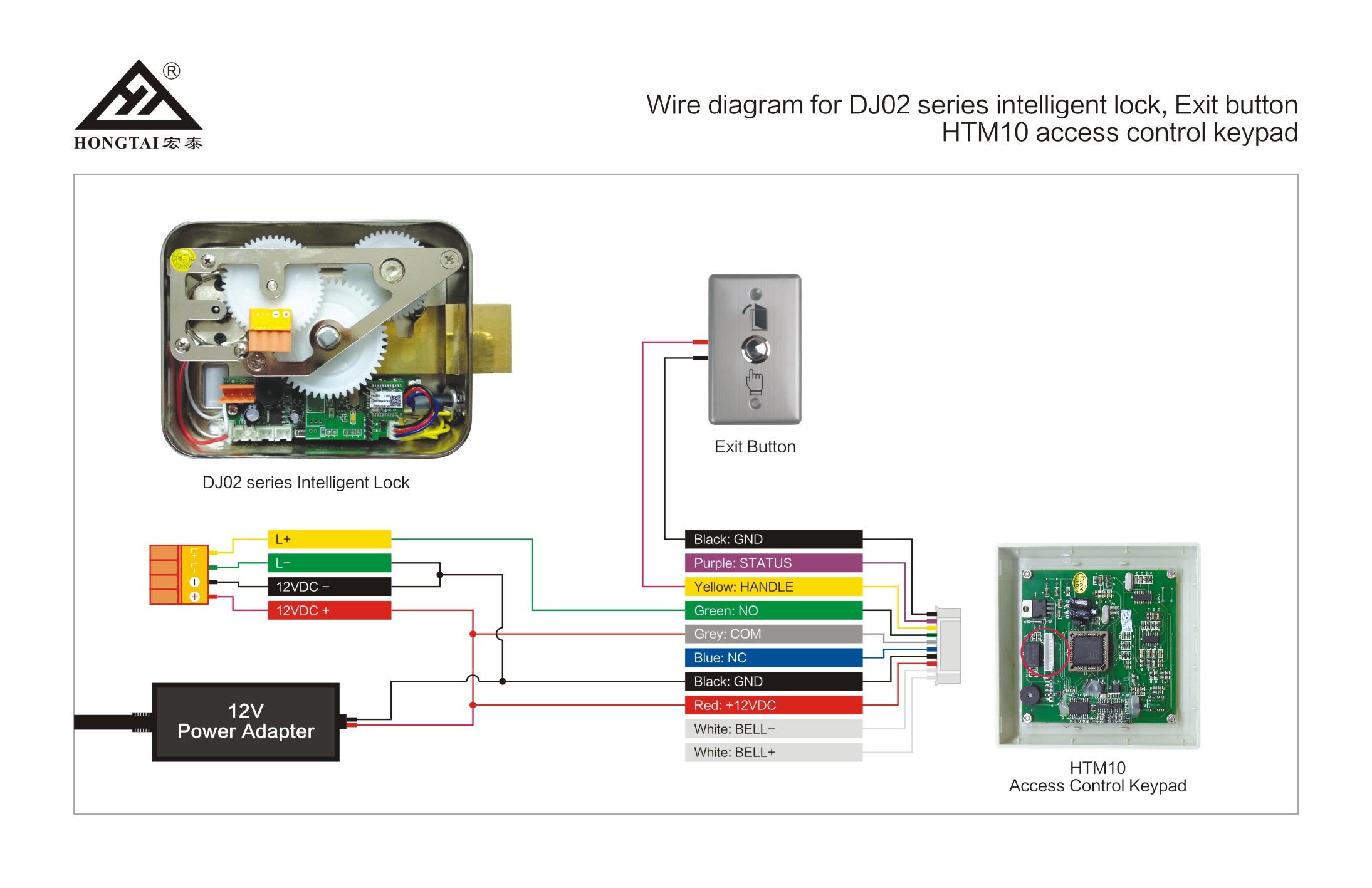

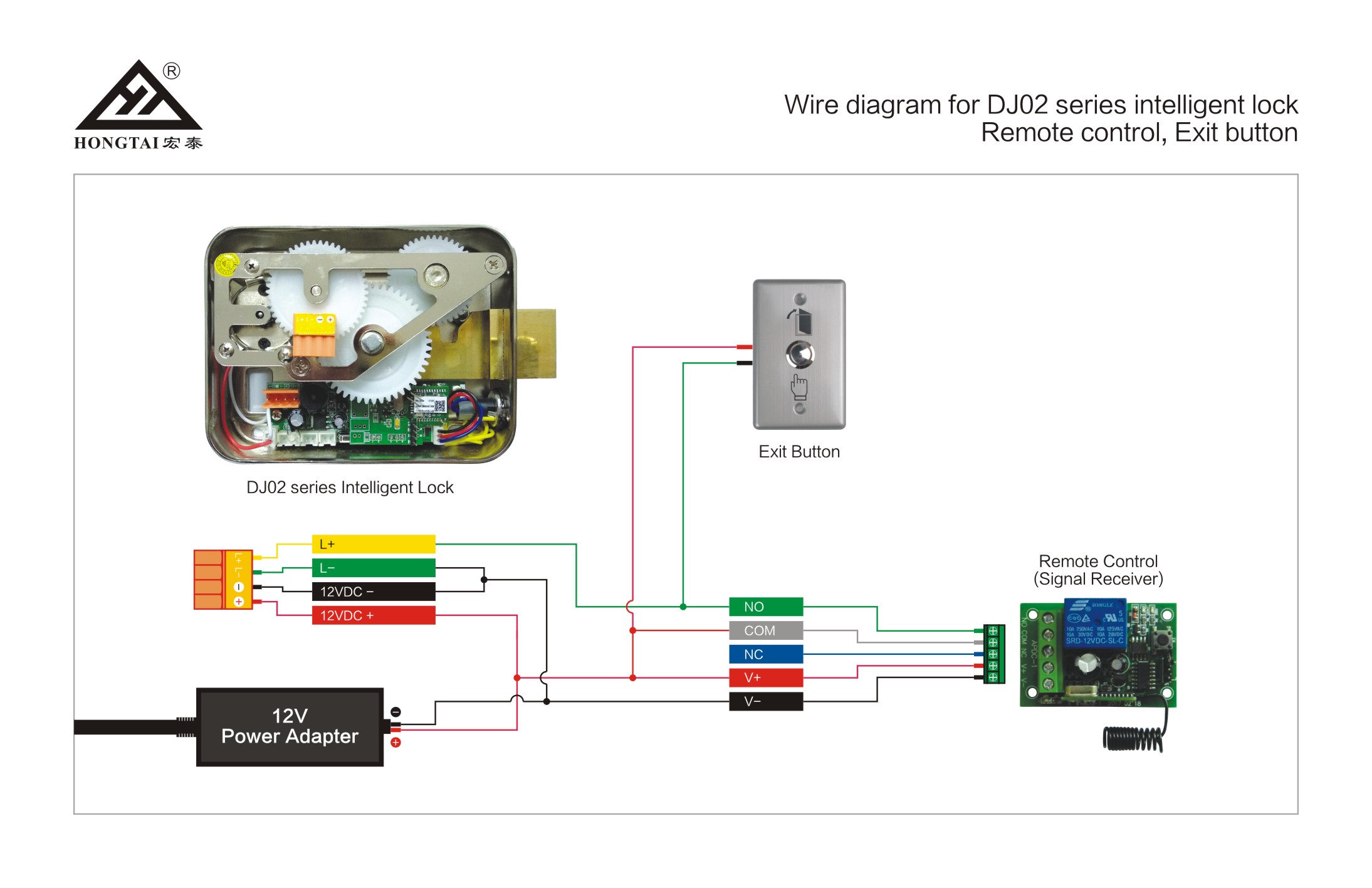

Wiring Diagram

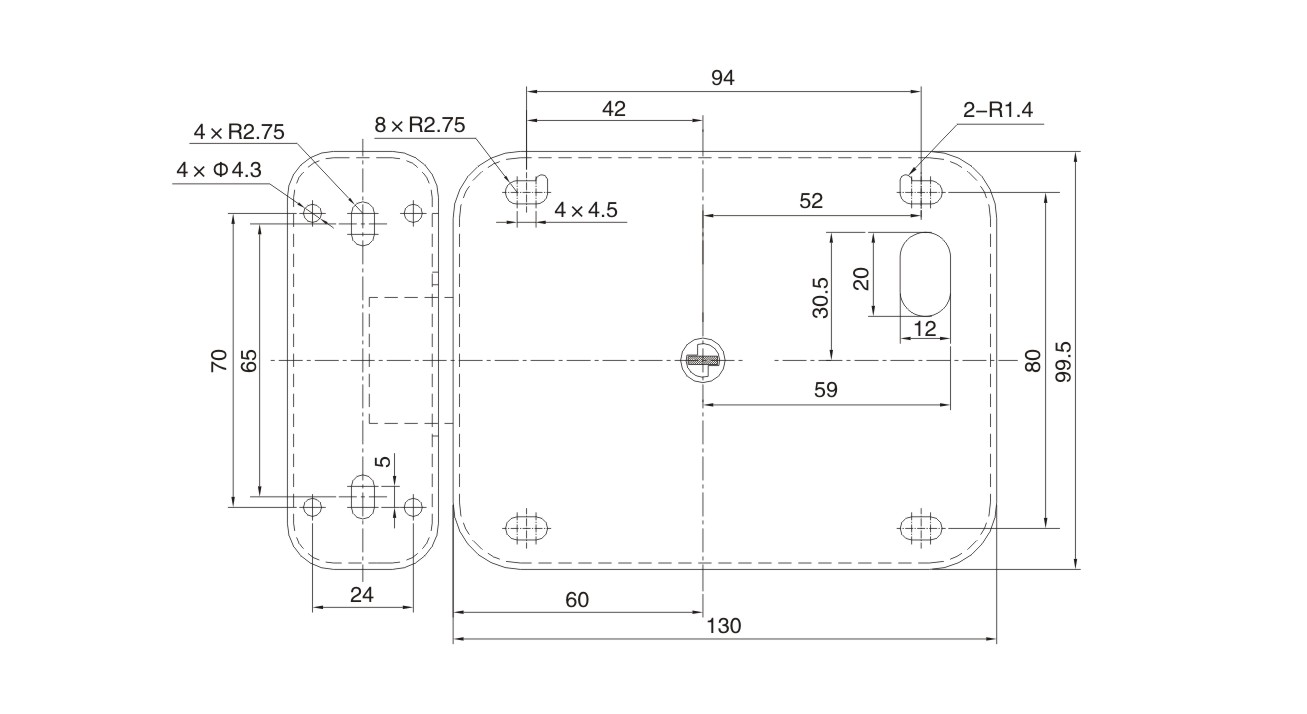

Installation Dimension Diagram
