Performance
※Intelligent Locks were invented by "Hongtai"company and attained " Technical Invention Letter of Patent"
※This series locks combine the virtues of electric rim lock and electromagnetic lock,overcome the loud noise of electric rim lock and high power consumption of electromagnetic lock
※Convenient installation,no need to identify left /right hand door or inward/outward door
※Decrease the requirement of door closer as they can lock automatically and without collision when thedoor is closed.Solve the door easily deformed as he high strength of door closer,extend the door's lifetime
※Detect state of latch.when lock doesn't lock well,can lock again
※Low noise,long lifetime,low power consumption
※Various opening methods:access control,intercom,remote control,ID card,key etc
※Voltage:12-24VDC
※Can not open the lock when separate the magnetic sensor,make it safer
※Reverse voltage protection, short-circuit protection, sound light alarm when the hall fault
※Output of latch state and output of door state are optional.If you need one of them,pls specify when you place order
※Waterproof is optional
Technical Parameters
※The length of extended latch ≥20mm
※Static pressure for latch: 6,000N
※Voltage:12-24VDC
※Unlocking current ＜300mA
※Standby current 16mA
※Unlocking time <1S
Scope of Application
They are widely used in intelligent housing district,office building,school,army,prison,mobile base station,bank,ATM.They also can work with building conversational system,access control system

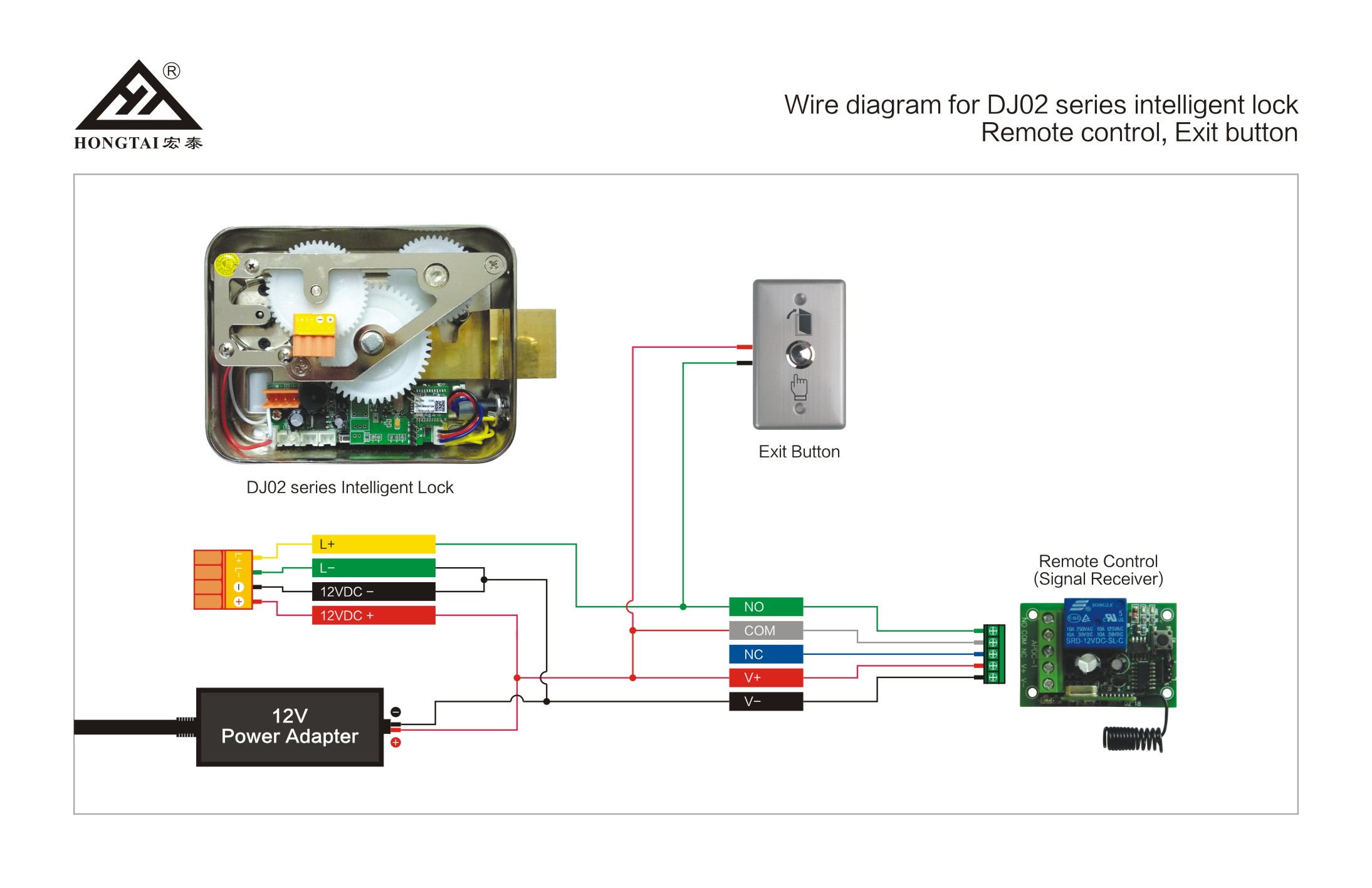

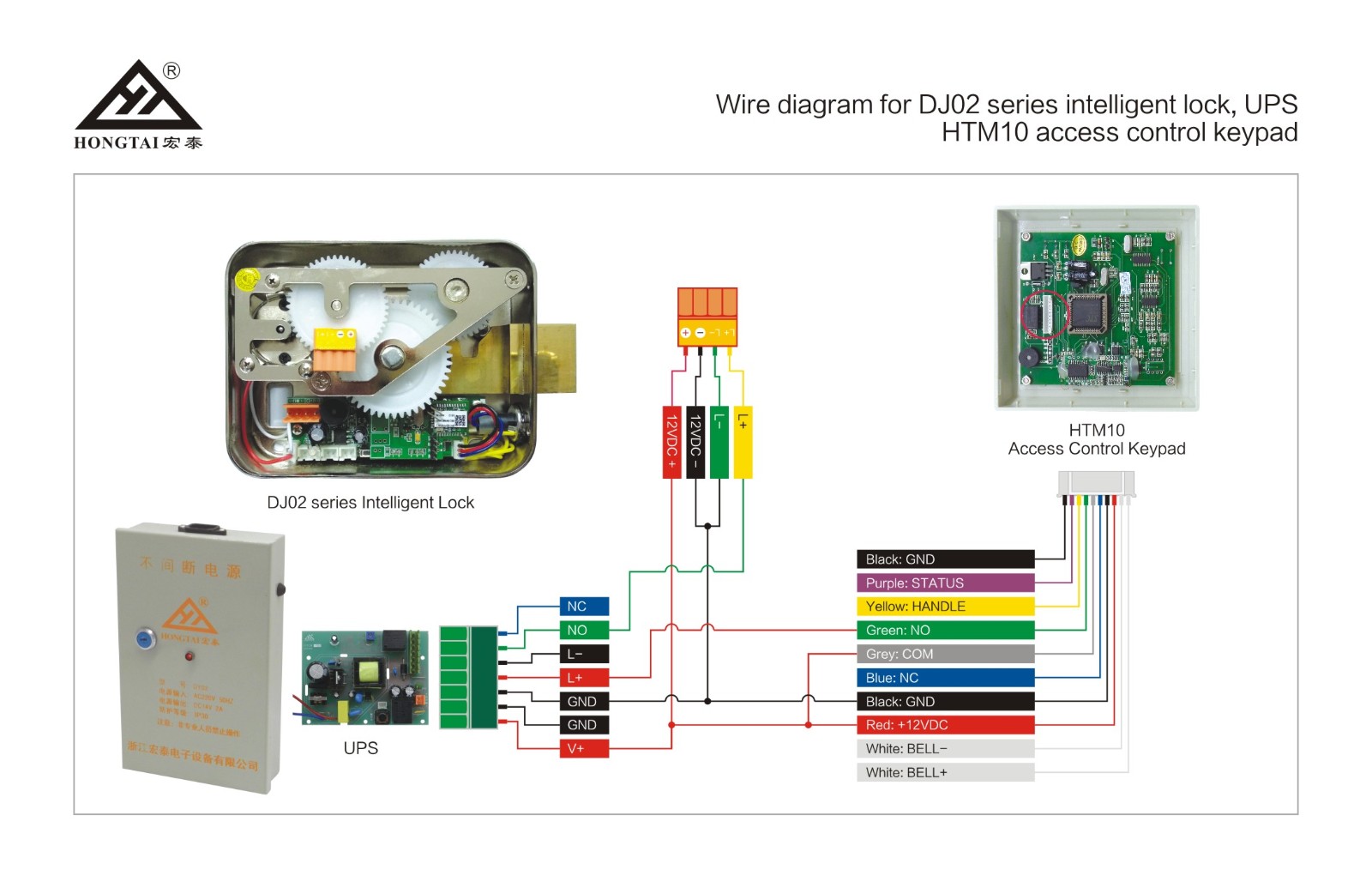

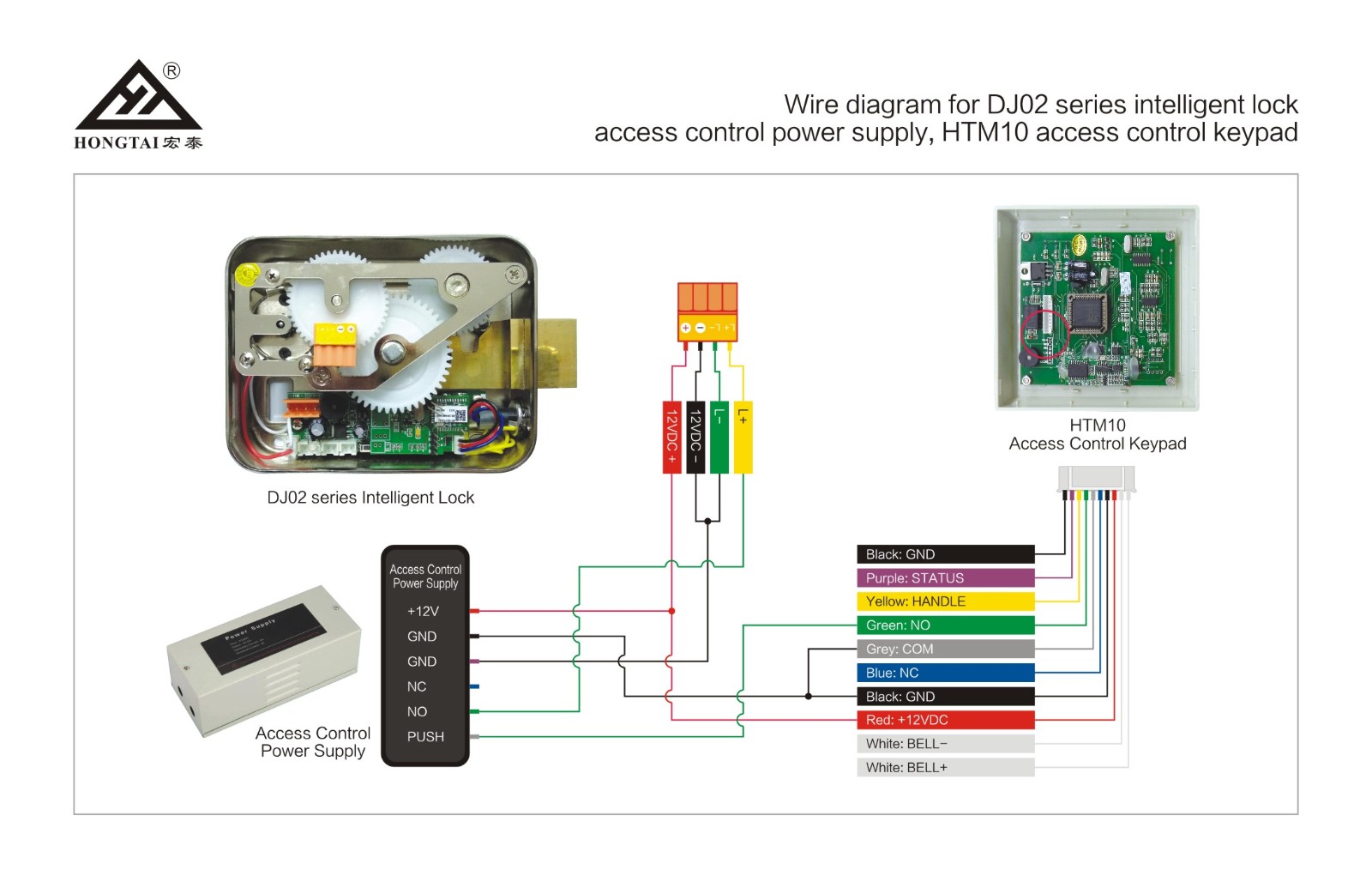

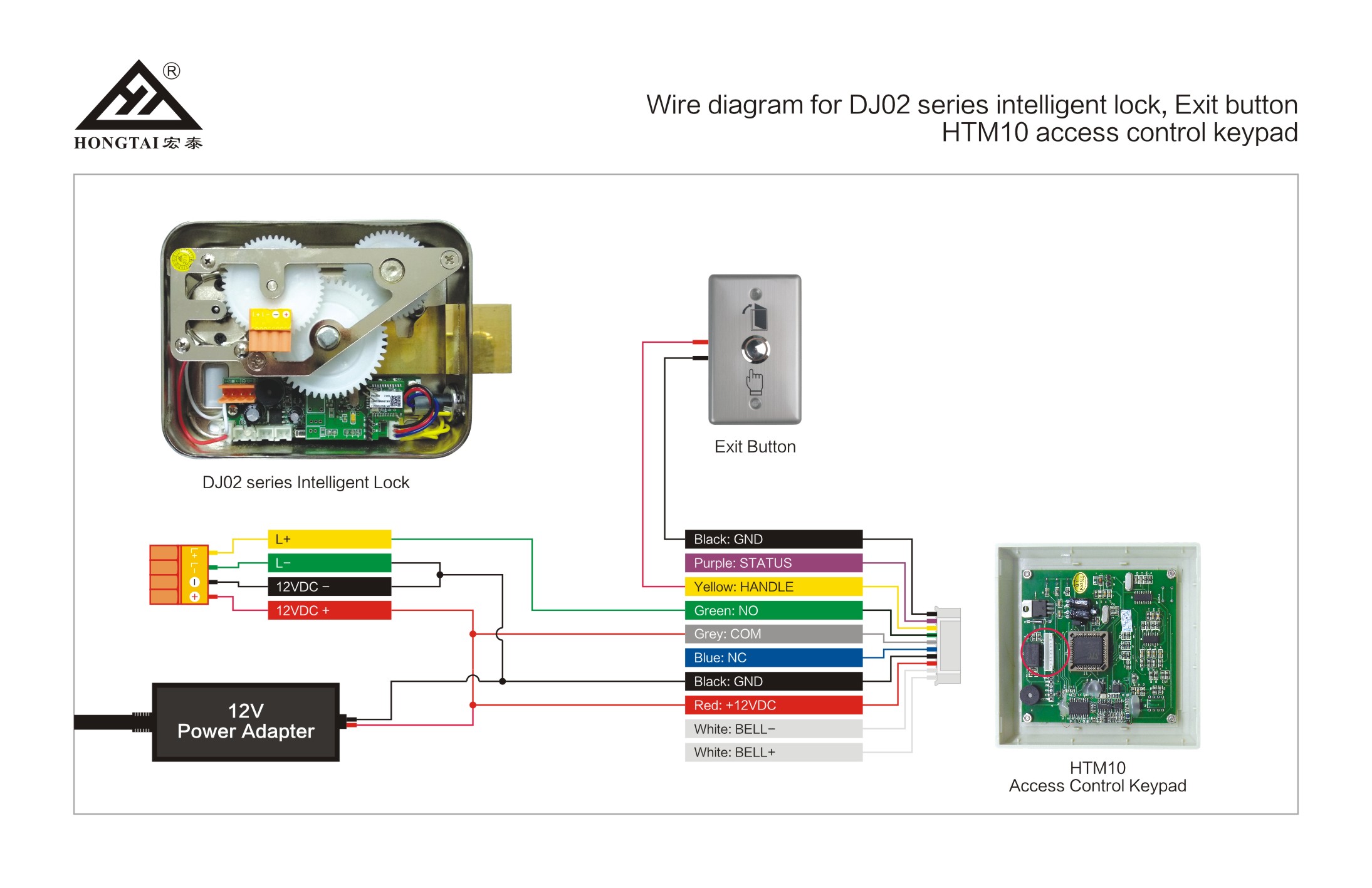

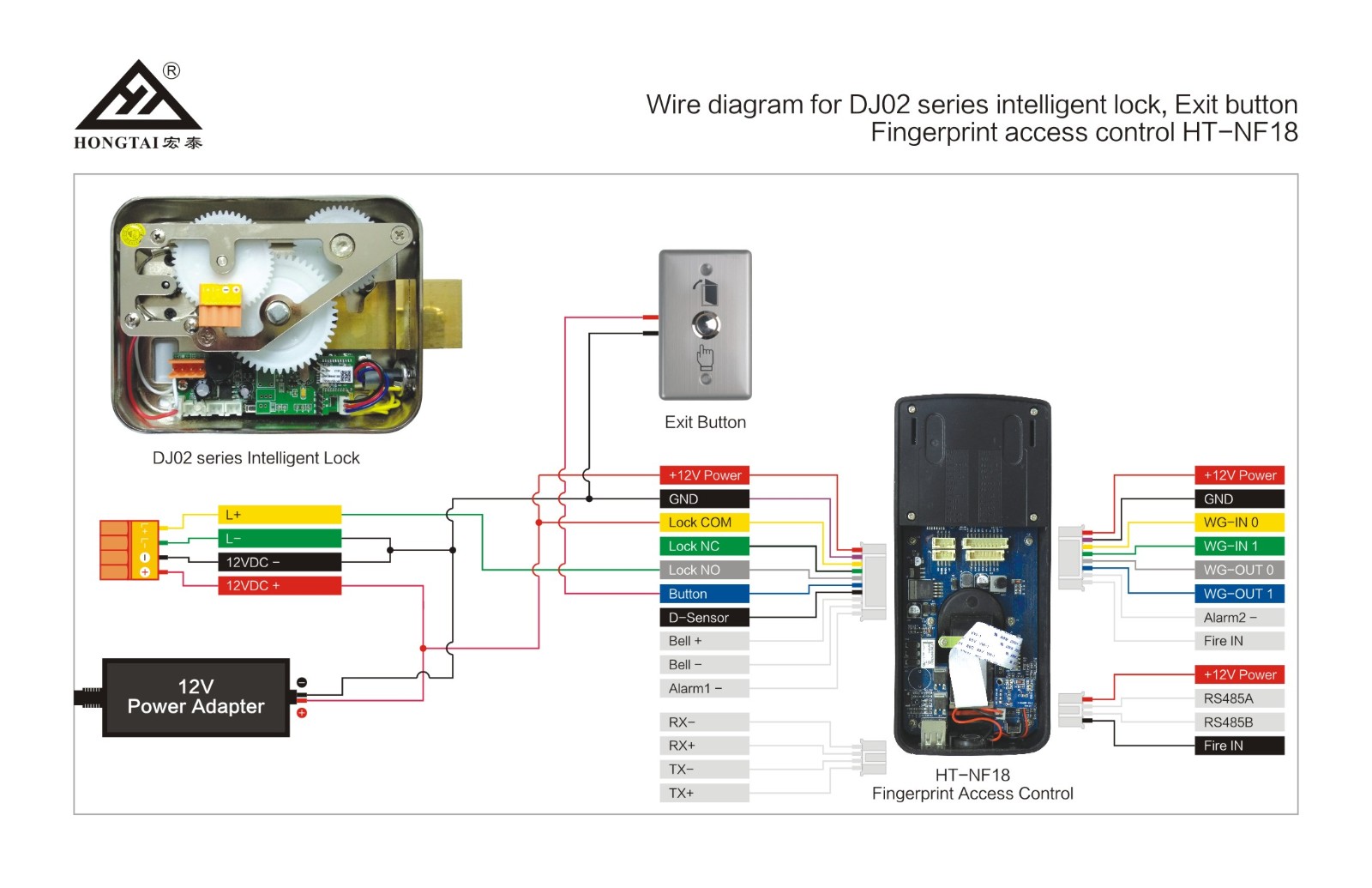

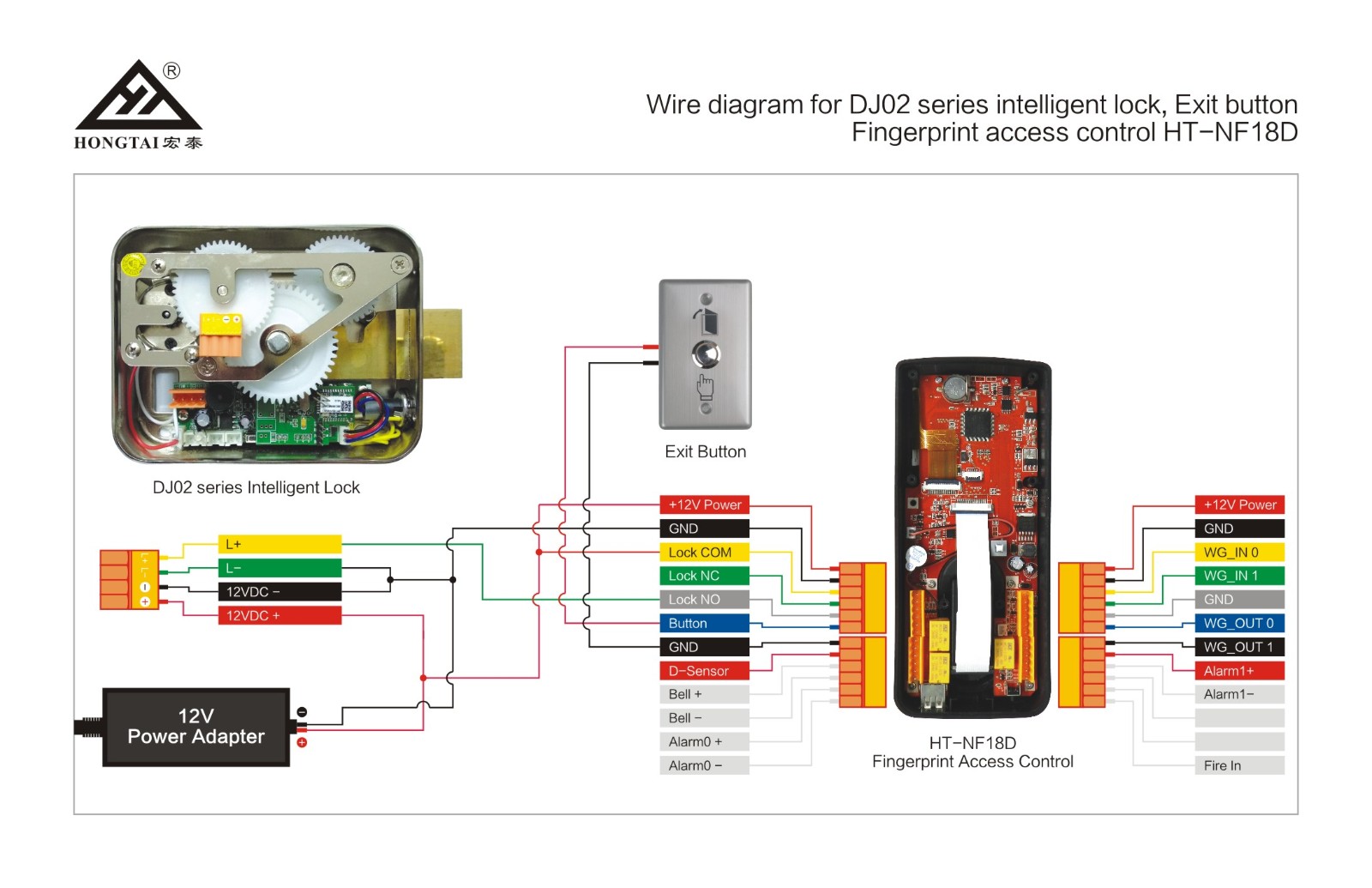

Wiring Diagram

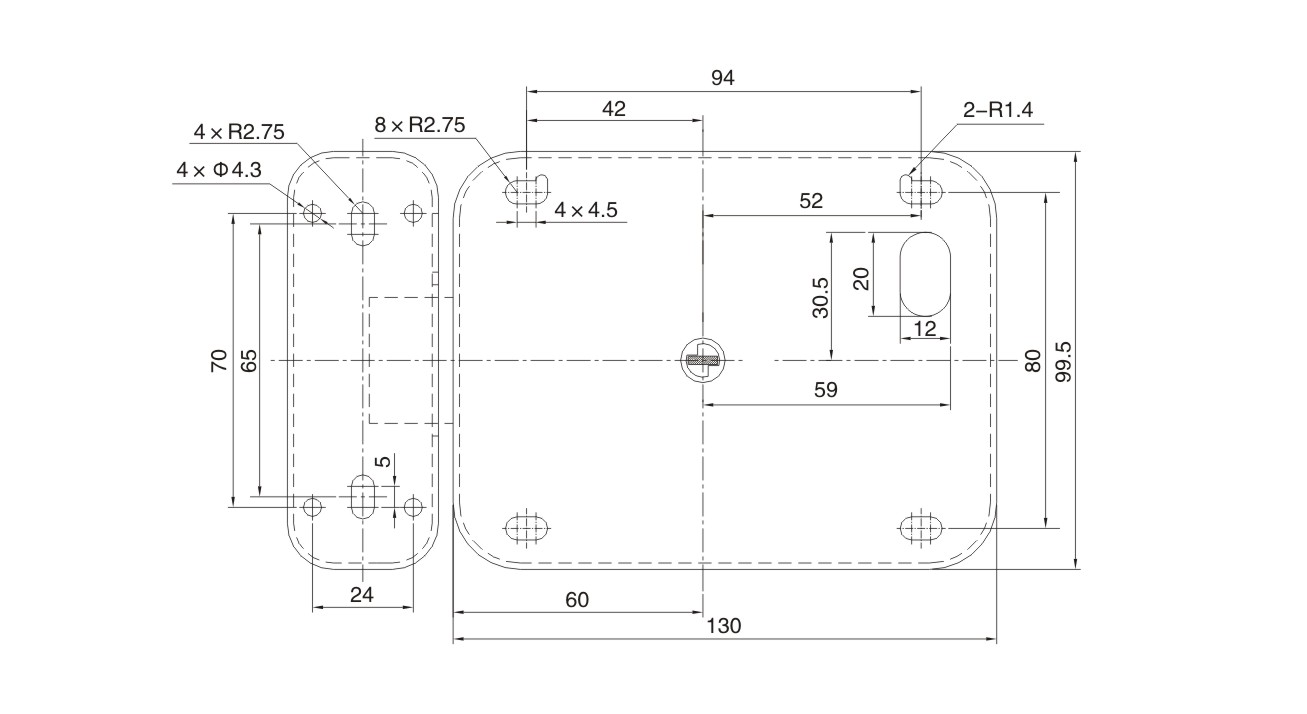

Installation Dimension Diagram
