Performance
1.Type: fail safe (unlock when power fails)
2.Time-delay locking setting:
unlock by power fails 0S,3S,6S,9S are available
open lock by access control system 3S,6S,9S,15S are available
general delay locking time is 1S
3.Working voltage: 12VDC~24VDC
Working current: 150mA~90mA
Output of door state: 5VDC, I=16mA
Output of bolt state: 5VDC,I=16mA
4.Static compressive stress:3000N
5.Anodic oxidation of aluminum alloy
6.The length of extension bolt is 15mm
7.Shake-proof,Anti-theft:The lock can increase current to keep the latch locking state and sound beep automatically when meet abnormal condition
8.They can be used with access control system and building intercom system
9.The Time-delay setting for lock and unlocking are independent
10.DCSW9 suitable for wooden door,fireproof door,metal door,glass door

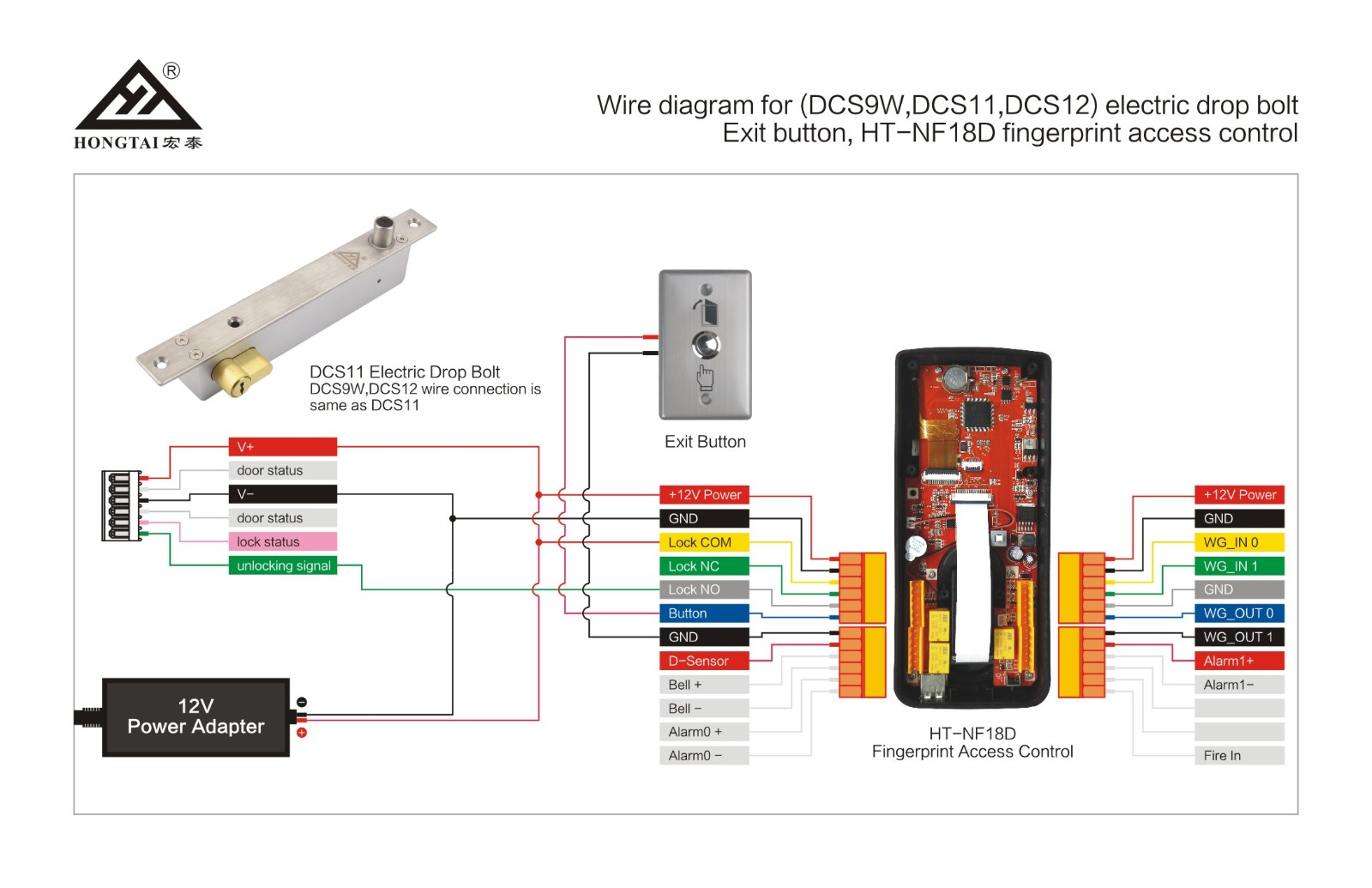

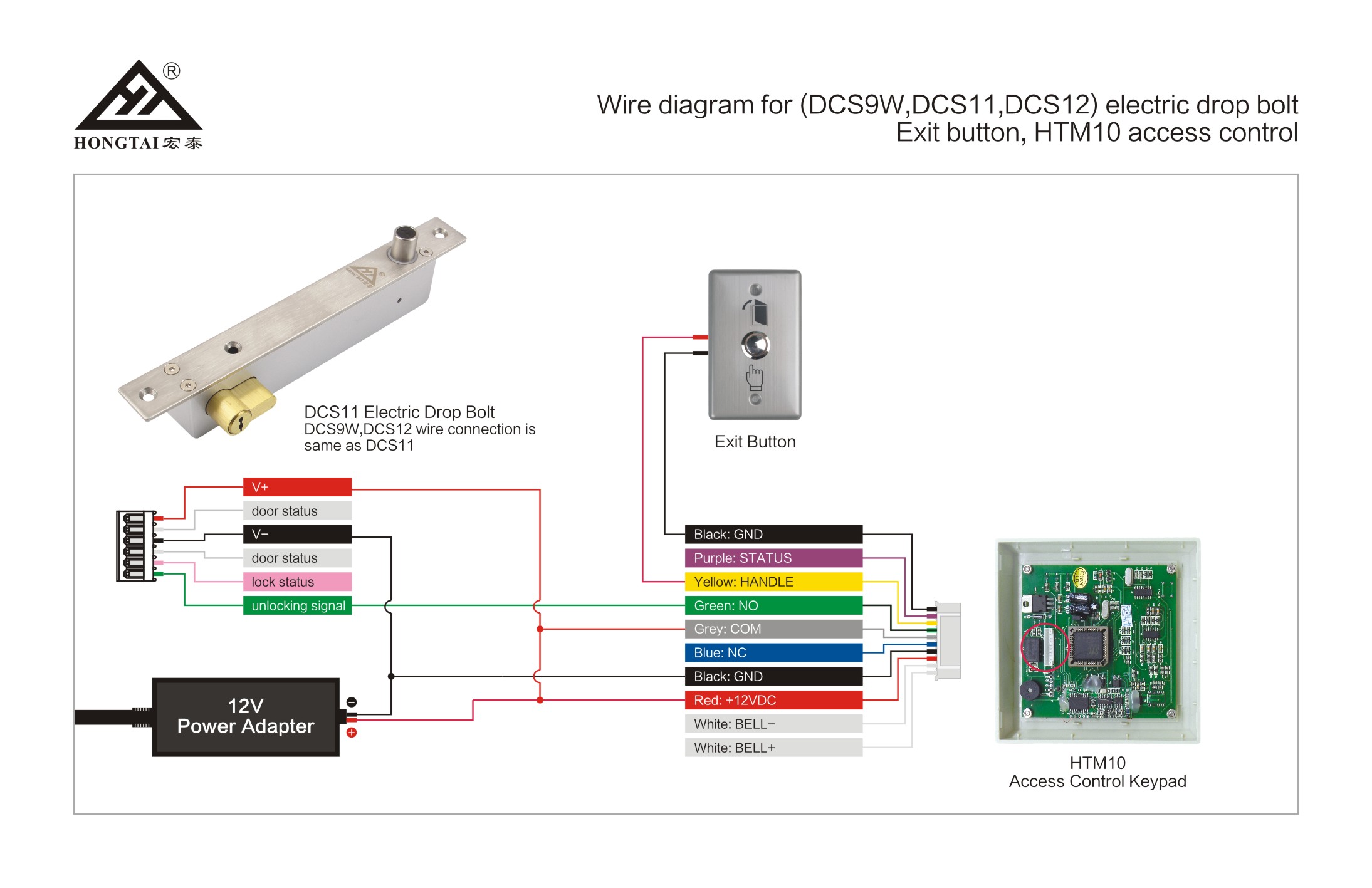

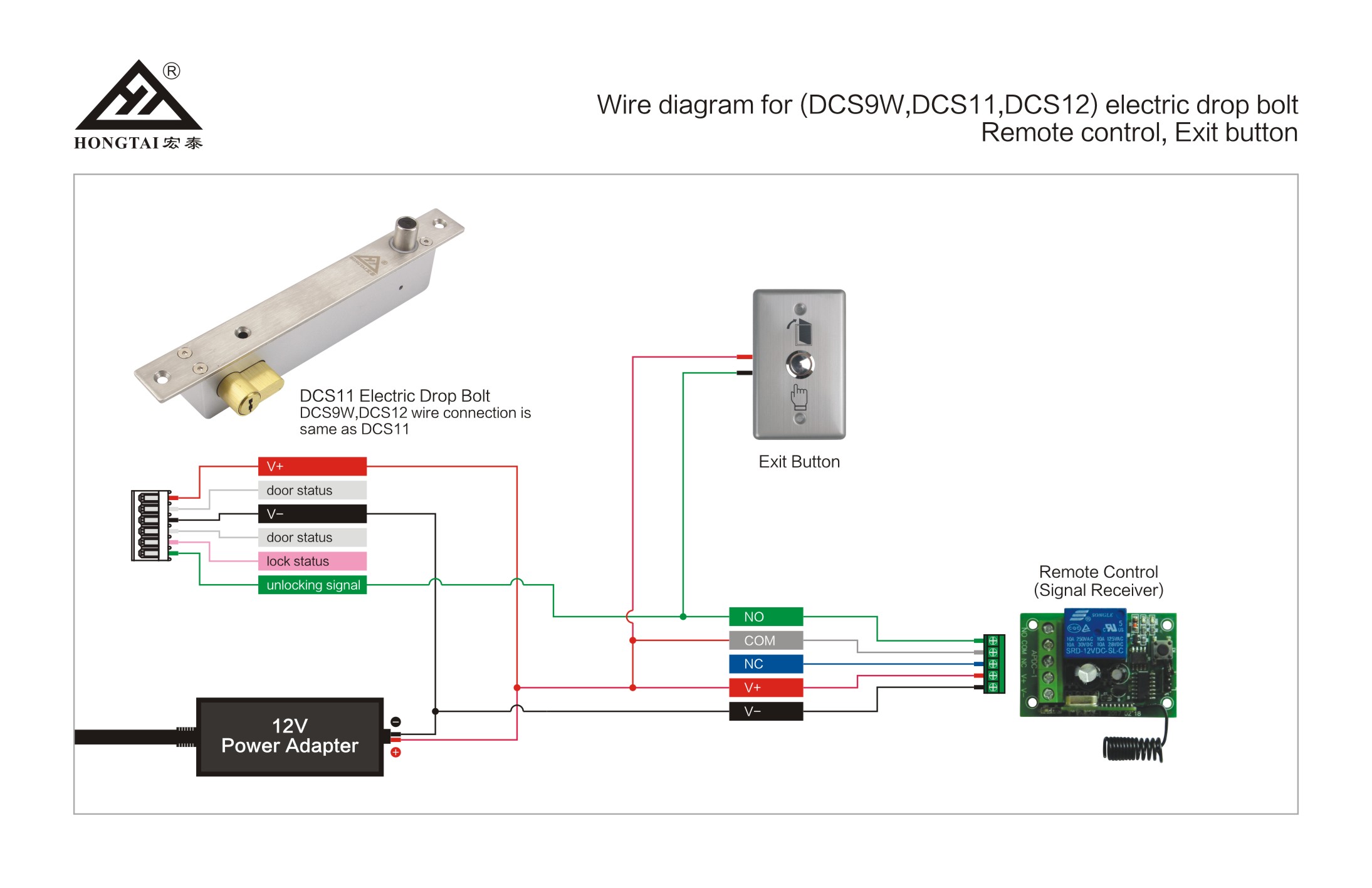

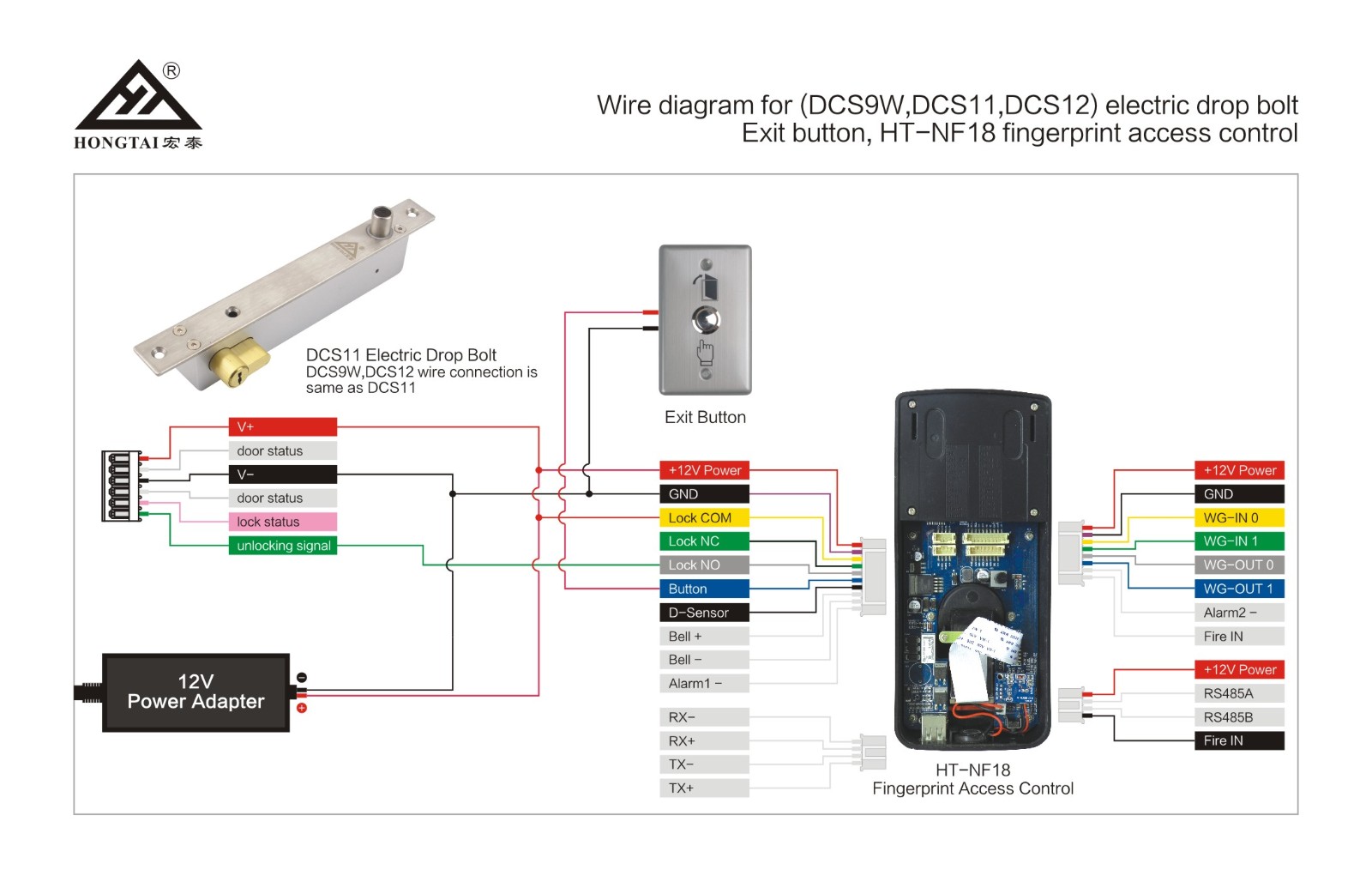

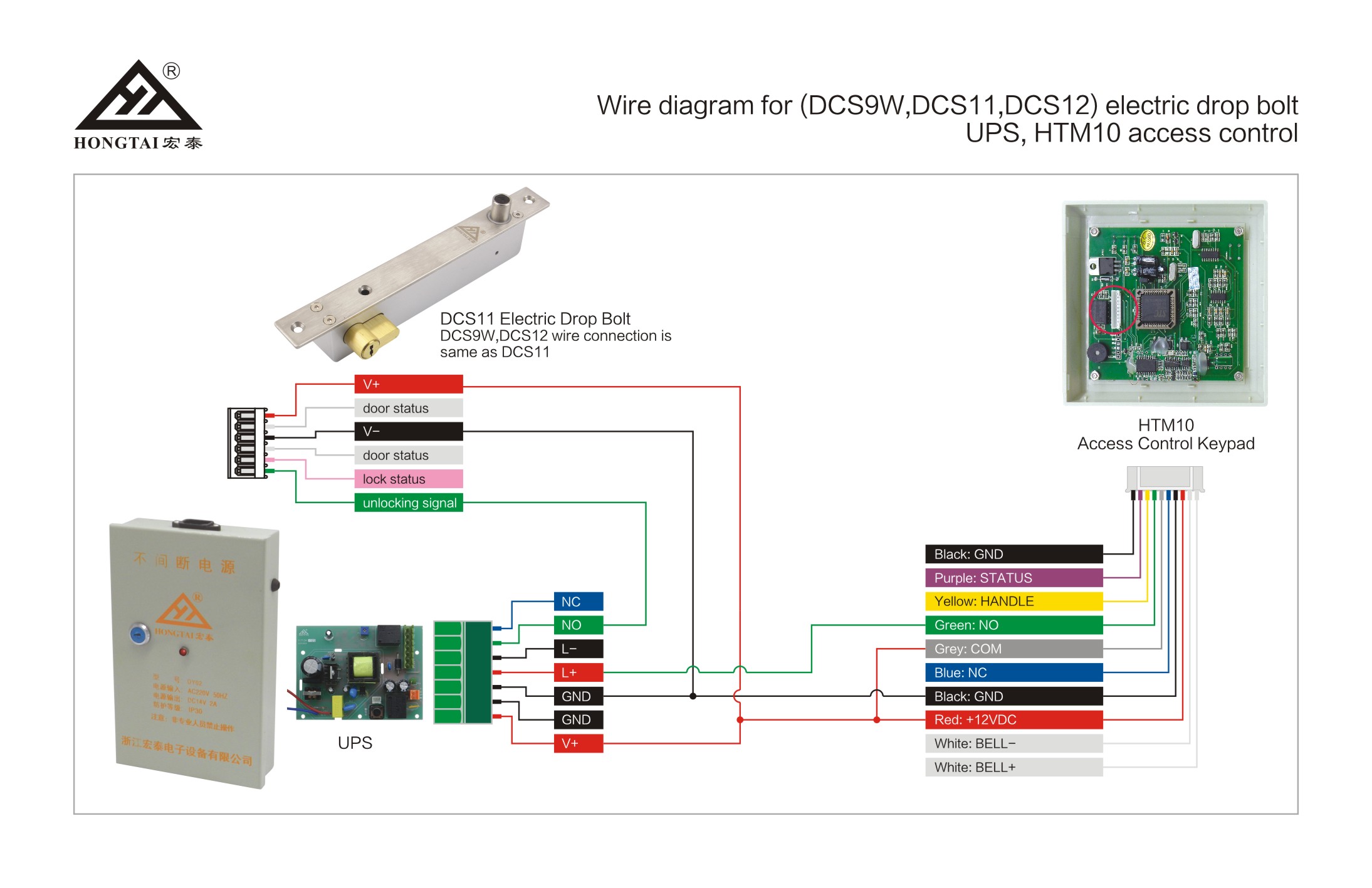

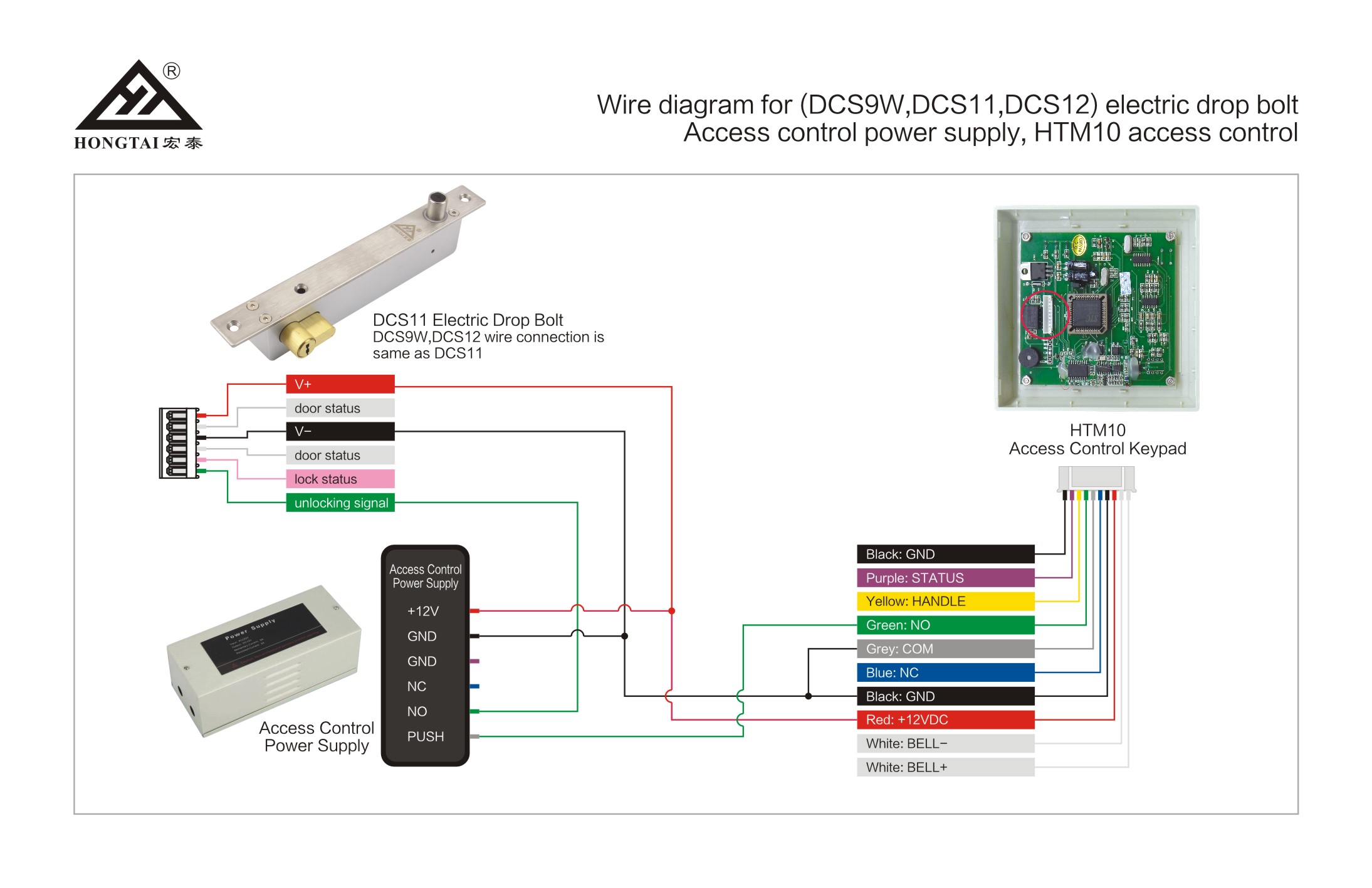

Wiring Diagram
