Face plate and latch is made of stainless steel,zinc alloy die casting lock body,stable chip,wide voltage,with door status output and lock status output
Shake-proof,Anti-theft.It can increase current to keep the latch locking status and sound beep automatically when meet abnormal condition
It can work with all access control device(password,card,remote control,fingerprint etc)
It is durable and high-security .It is suitable for wooden door,metal door,fireproof door etc
Technical Parameters
Working voltage: DC 12V-24V
Working current: 12VDC starting current:1200mA,persistent current:180mA
24VDC starting current:650mA,persistent current:90mA
Security type: fail safe(with power,it will lock)
Latch: stainless steel latch,15mm extension length
Static pressure for latch: 3,000N
Unlocking method: electrical signal
Time delay: 3,6,9,17s
Signal output: door status output(5V door closed)
lock status output(5V locking voltage)
Suitable for: wooden door,metal door,fireproof door

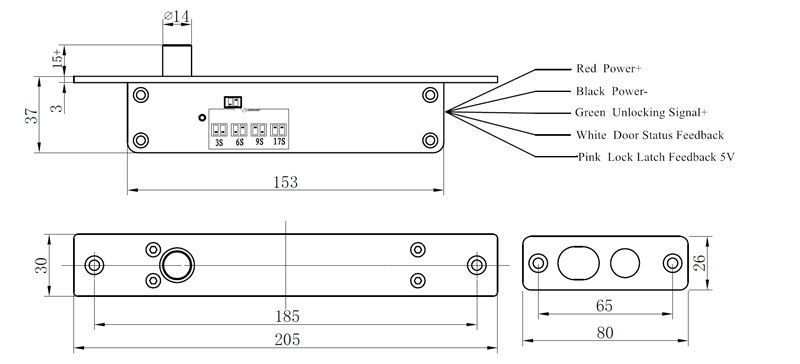

Dimension: 205×30×37mm
Weight: 0.75kgs

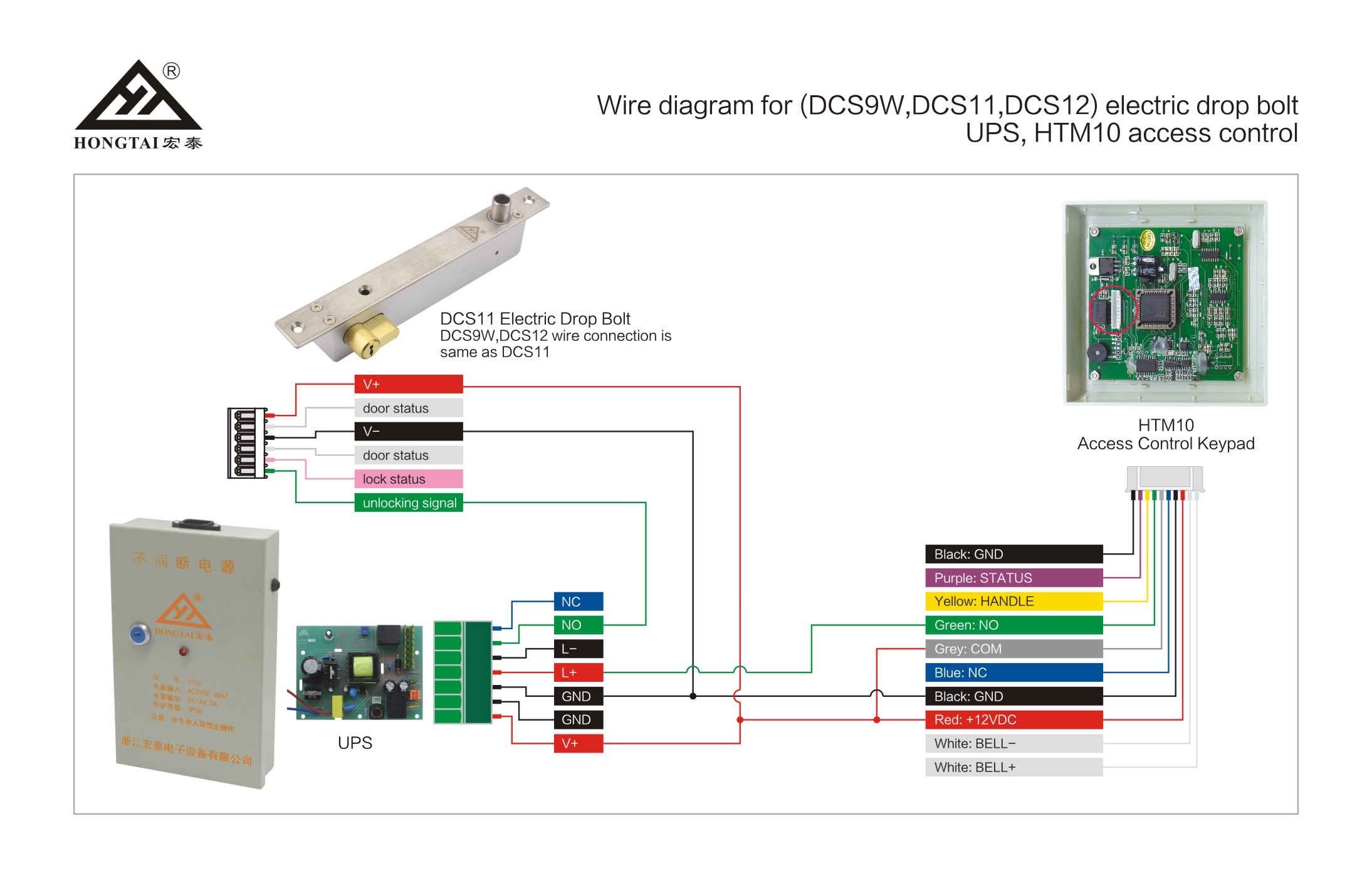

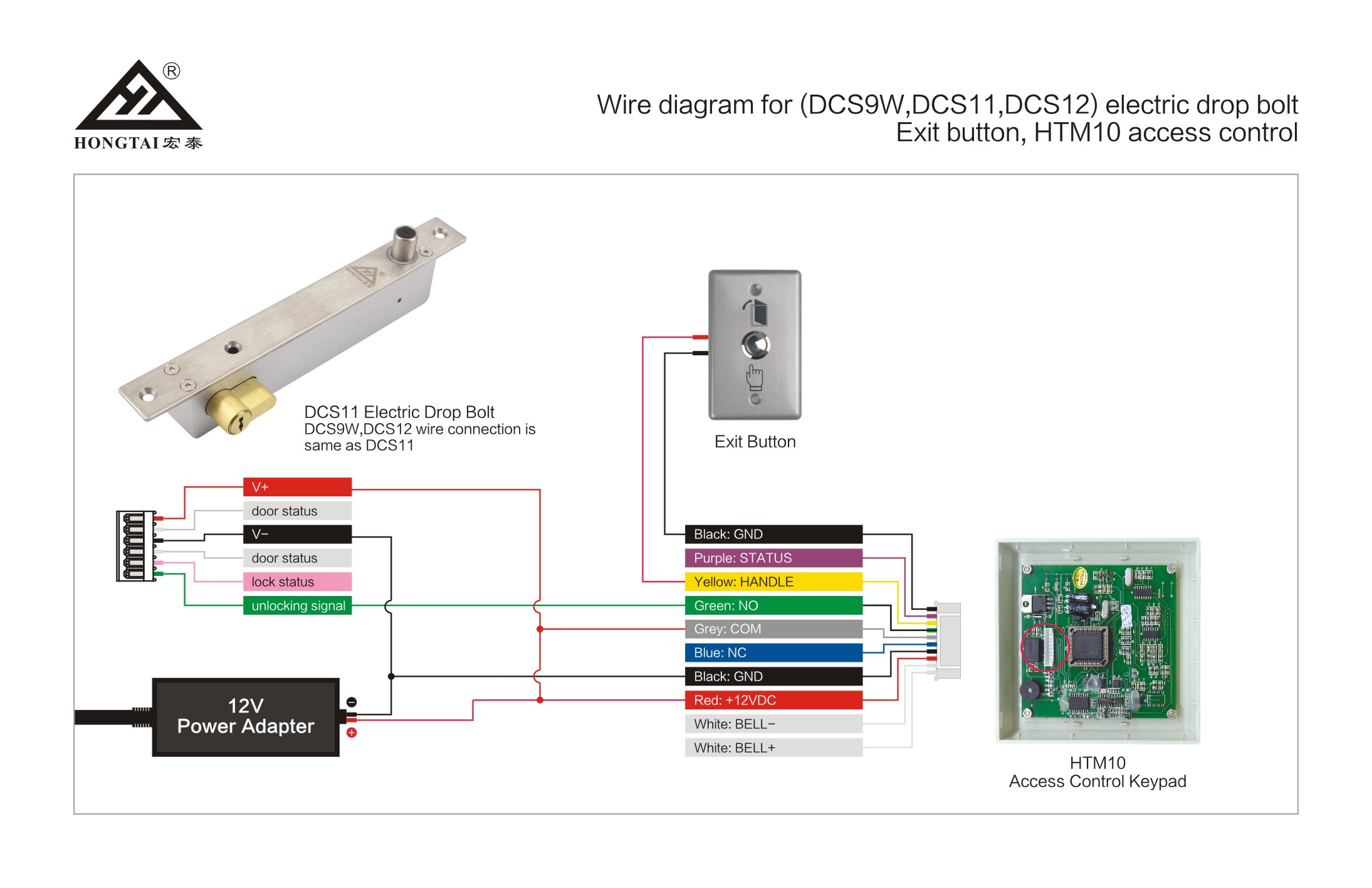

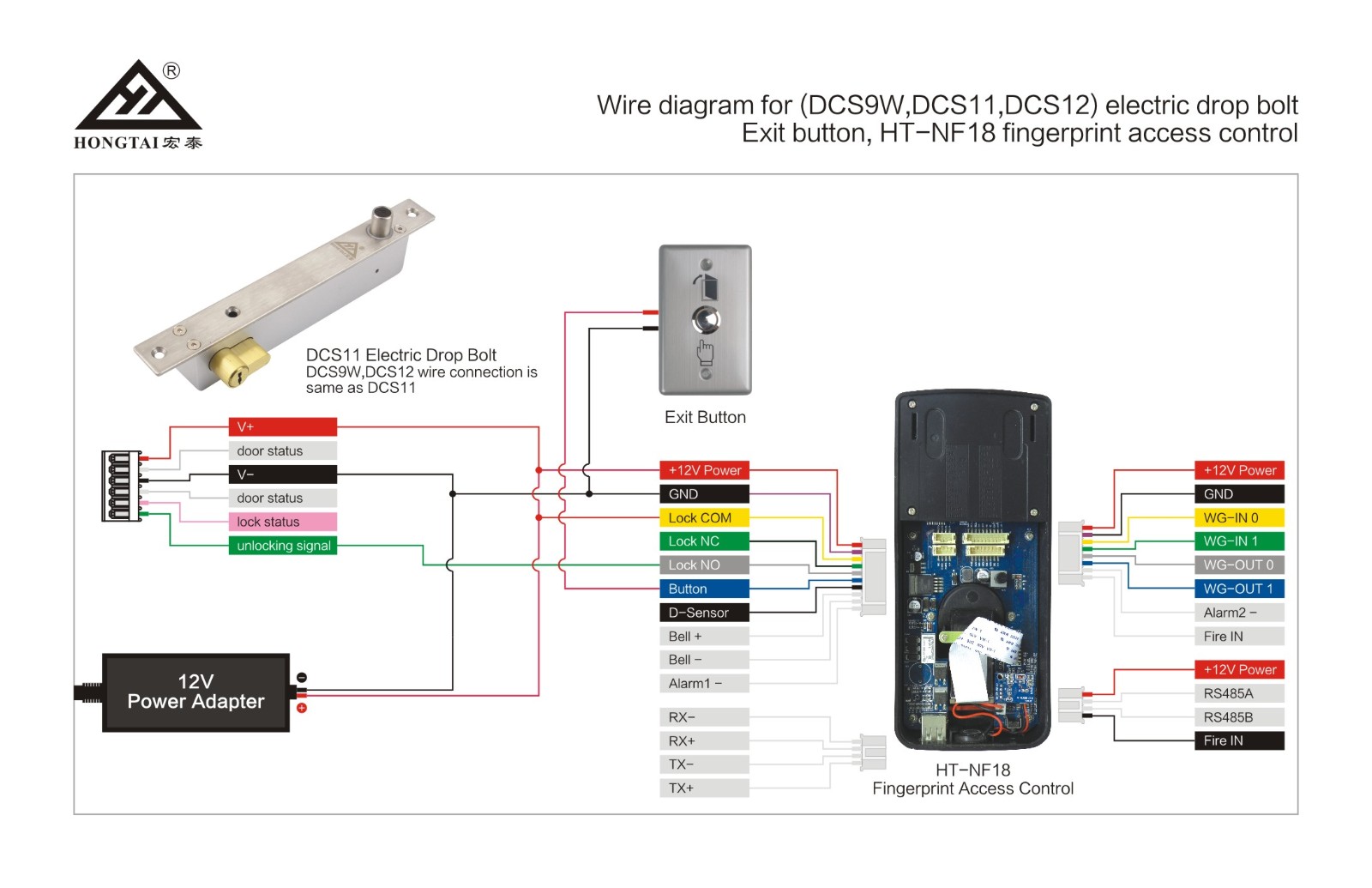

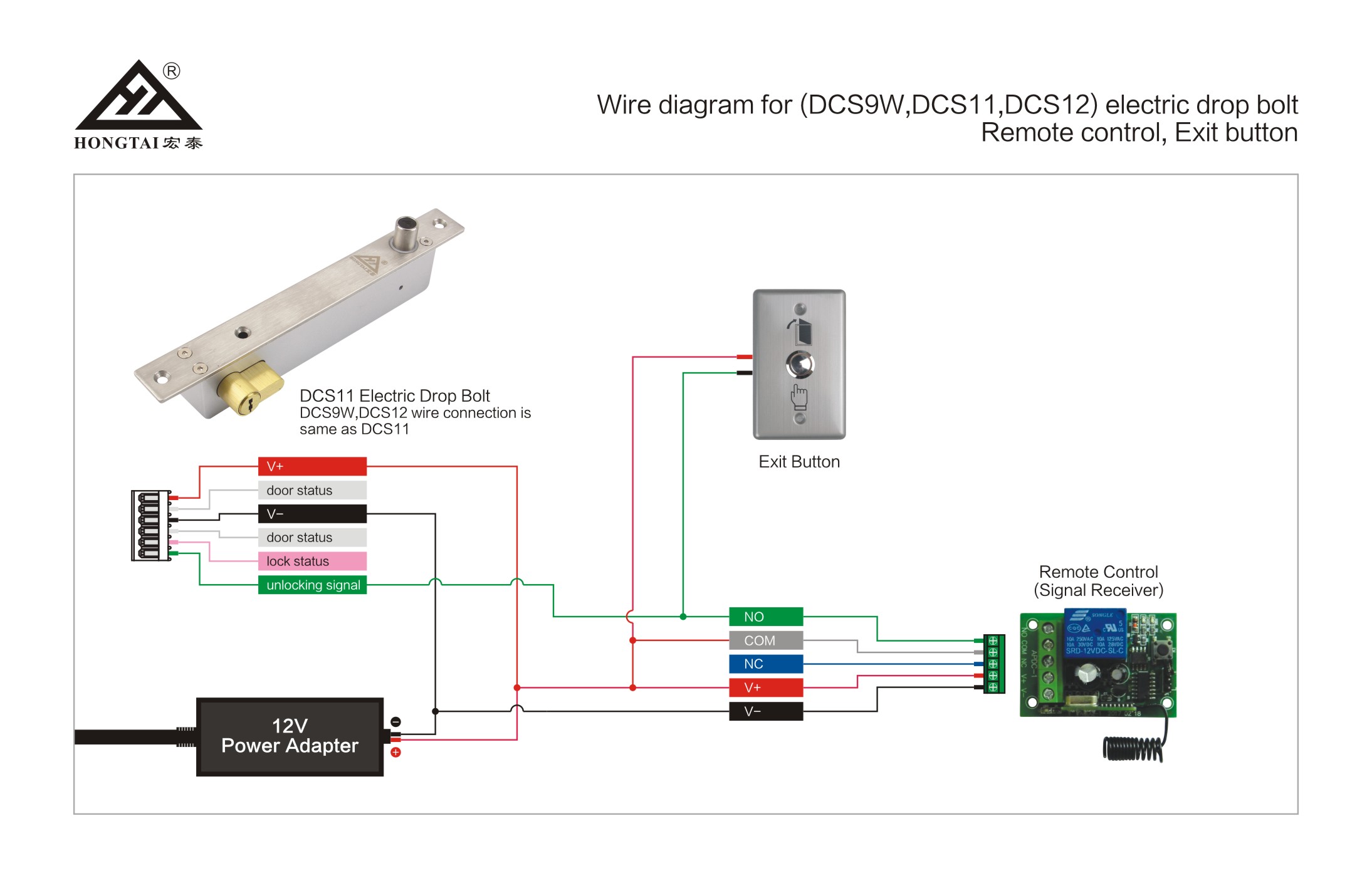

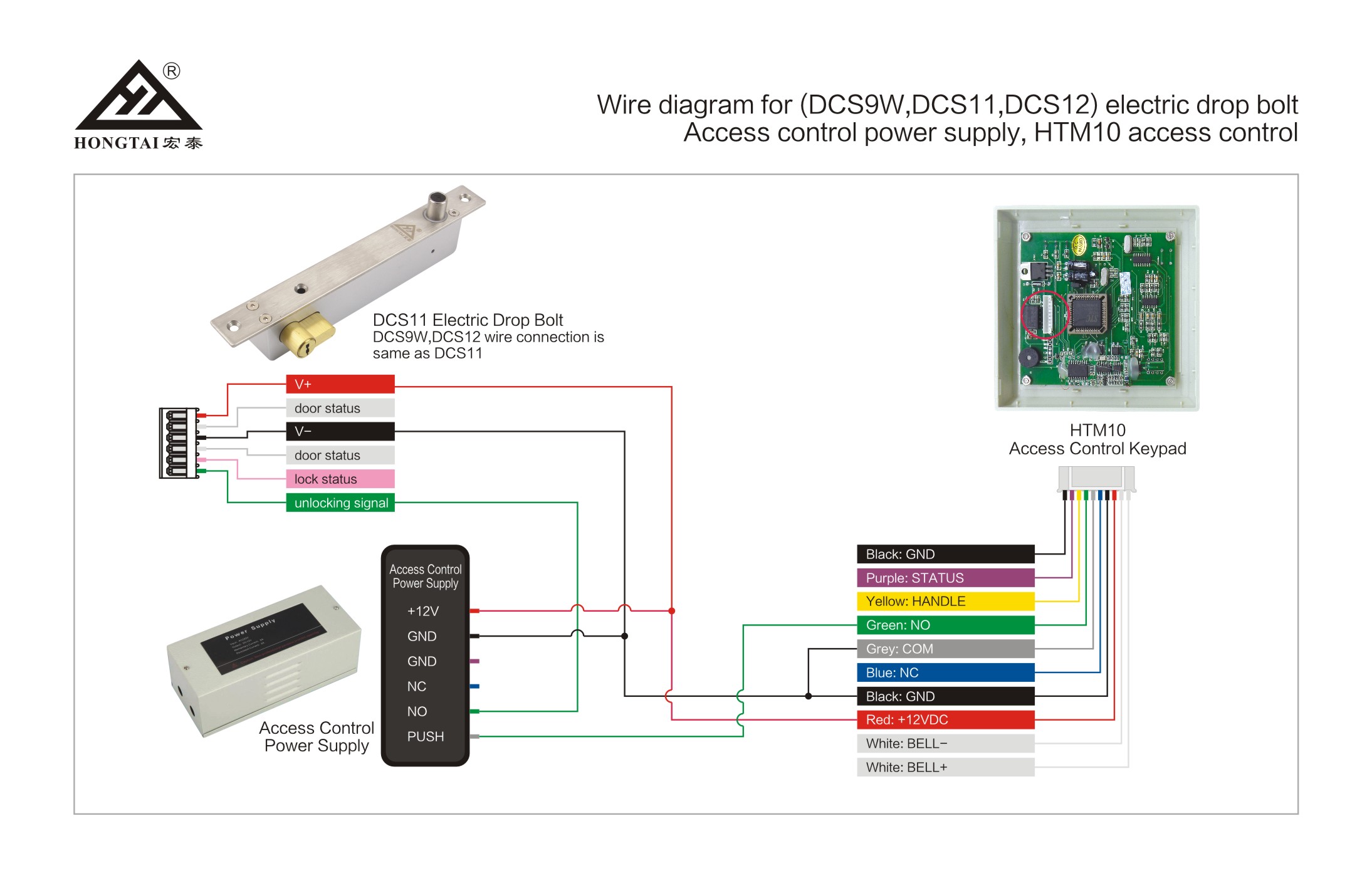

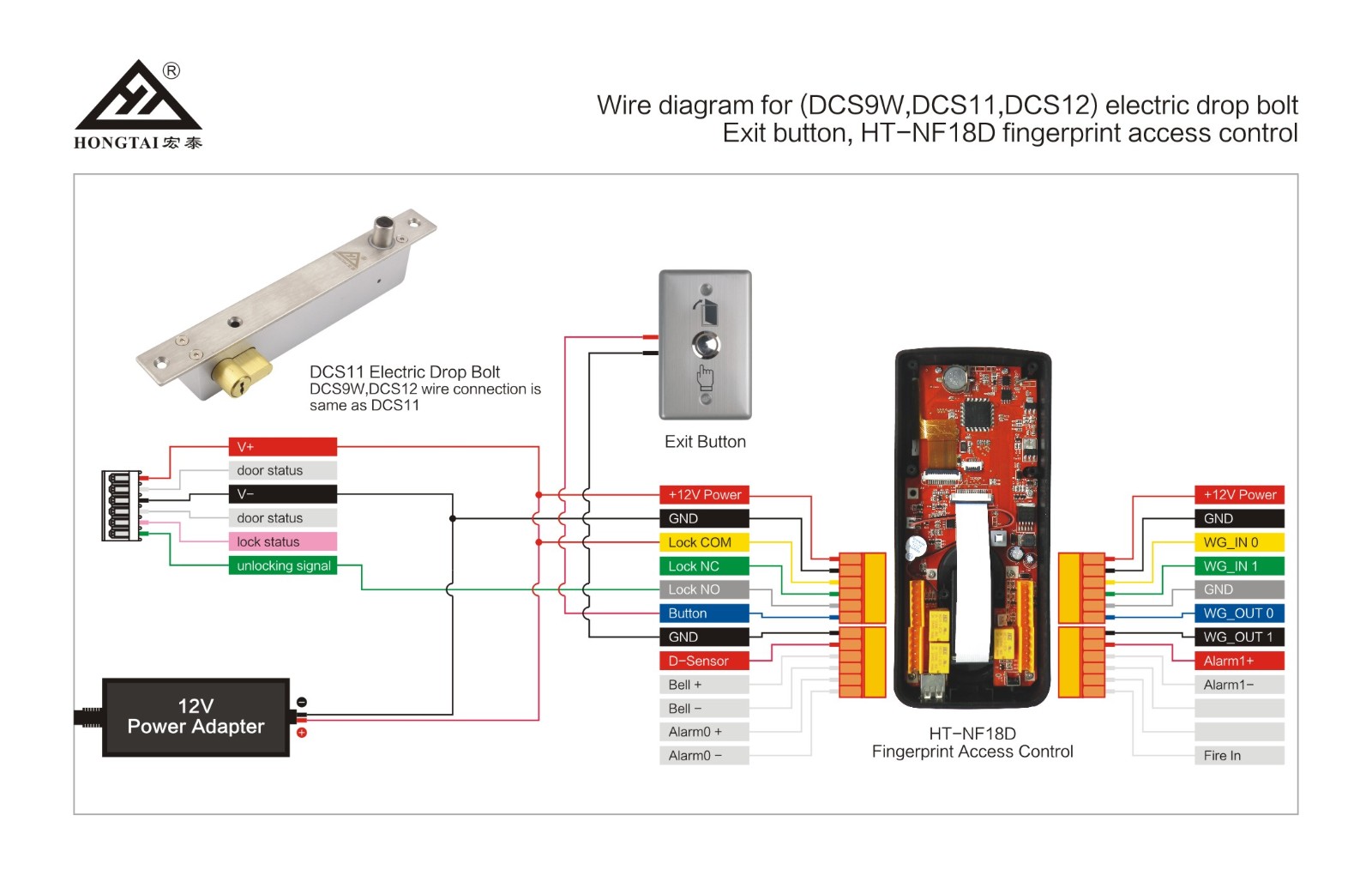

Wiring Diagram
