Face plate and latch is made of stainless steel,zinc alloy die casting lock body,stable chip,wide voltage,with door status output and lock status output
Shake-proof,Anti-theft.It can increase current to keep the latch locking status and sound beep automatically when meet abnormal condition
It can work with all access control device(password,card,remote control,fingerprint etc)
It is durable and high-security .It is suitable for wooden door,metal door,fireproof door etc
Technical Parameters
Latch: Stainless steel latch,15mm extension length
Static pressure for latch: 3,000N
Locking method: magnetic induction
Working voltage: DC 12V-24V
Working current: 12VDC  starting current:1200mA,persistent current:220mA
                          24VDC  starting current:650mA,persistent current:120mA
Signal output: door status output, NO/COM
                     Lock status output,5V unlocking voltage
Suitable for: wooden door,metal door,fireproof door

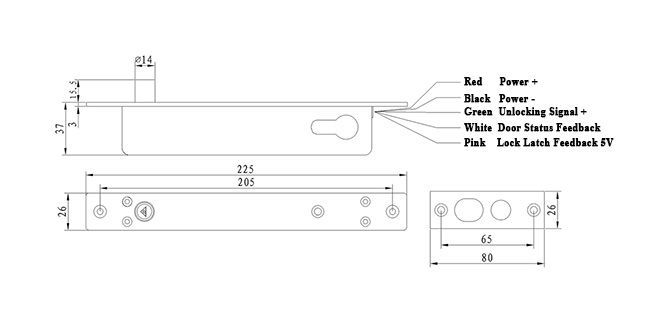

Dimension: 225
Weight: 1.1kgs

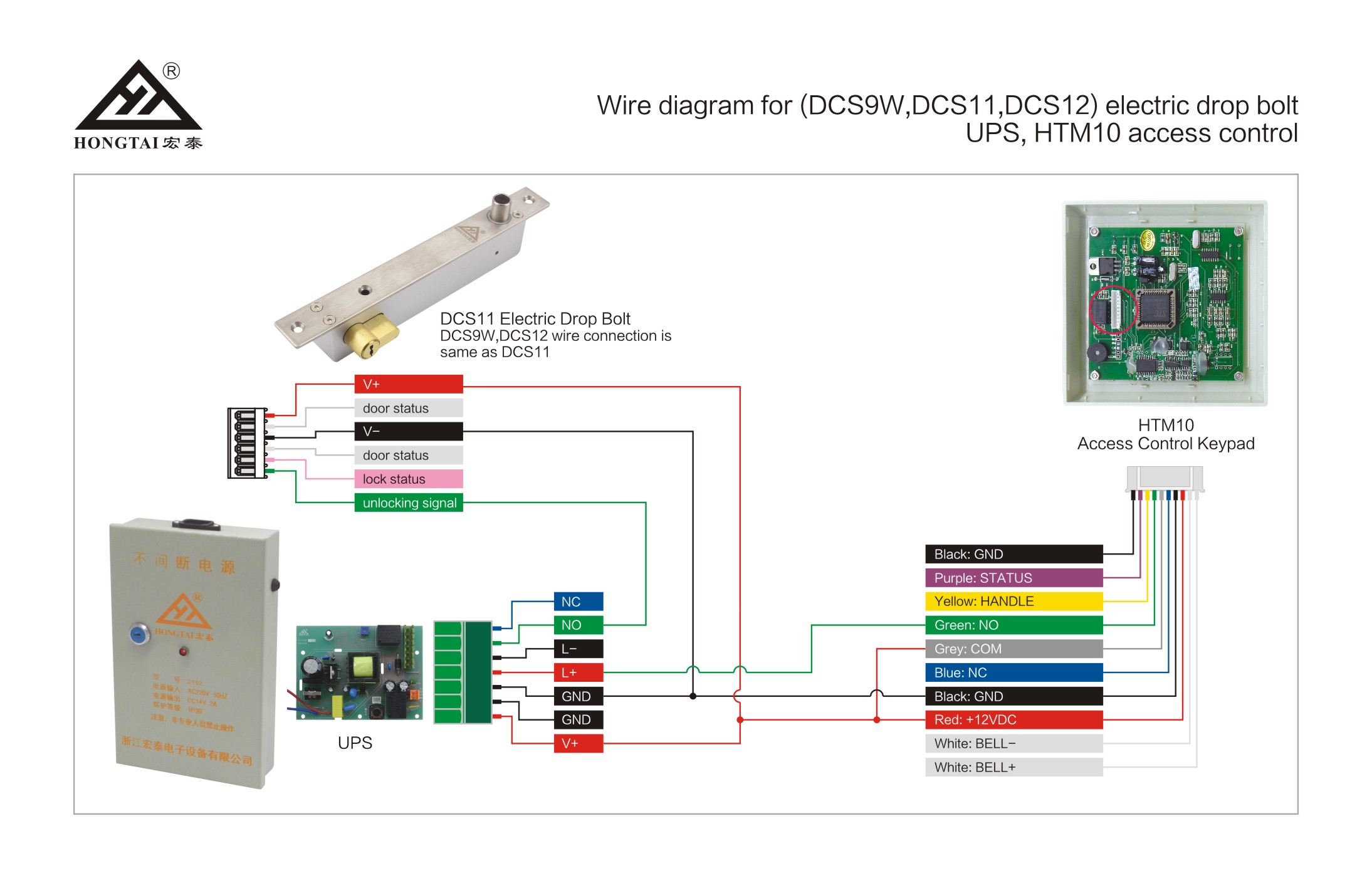

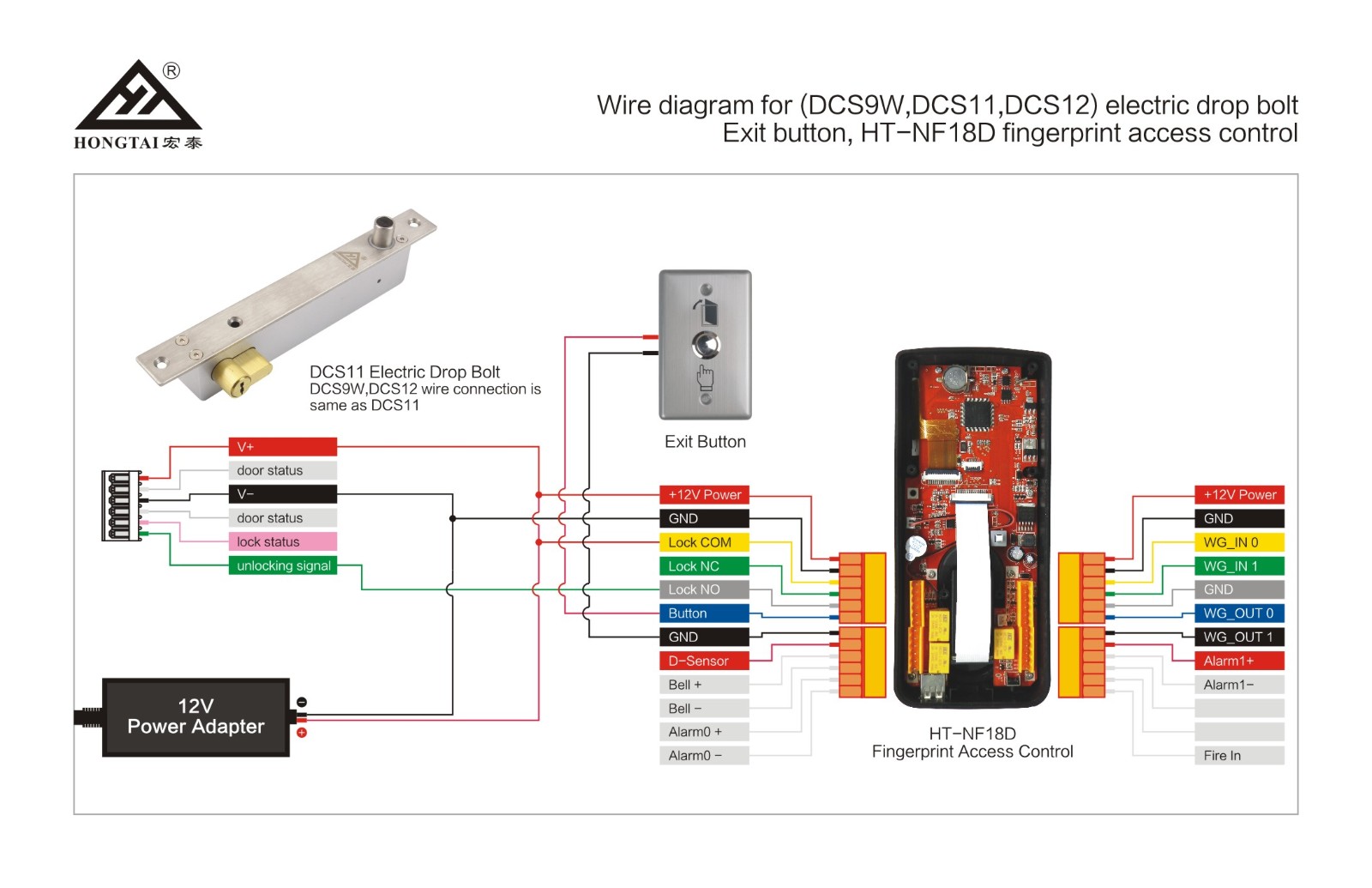

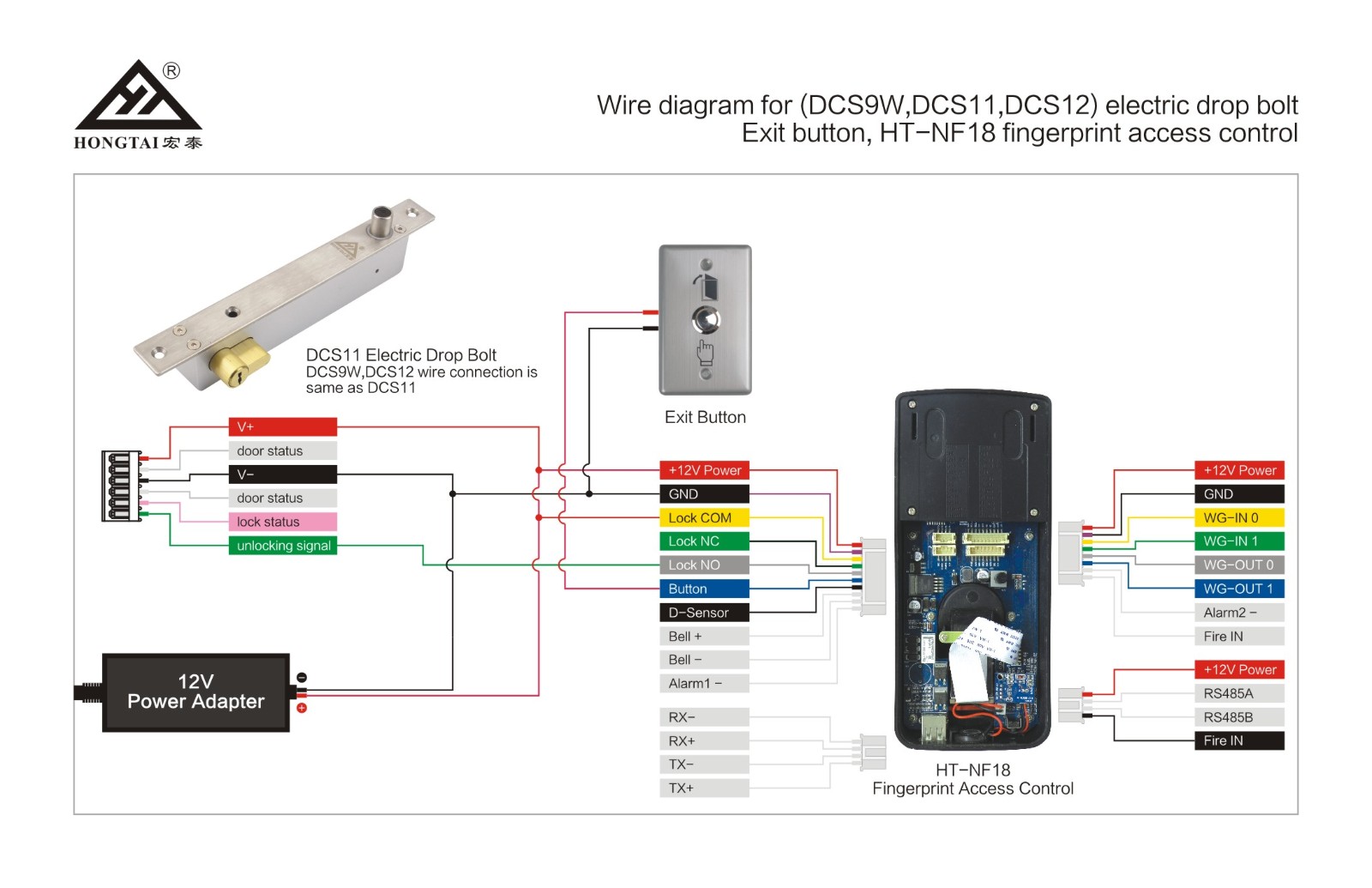

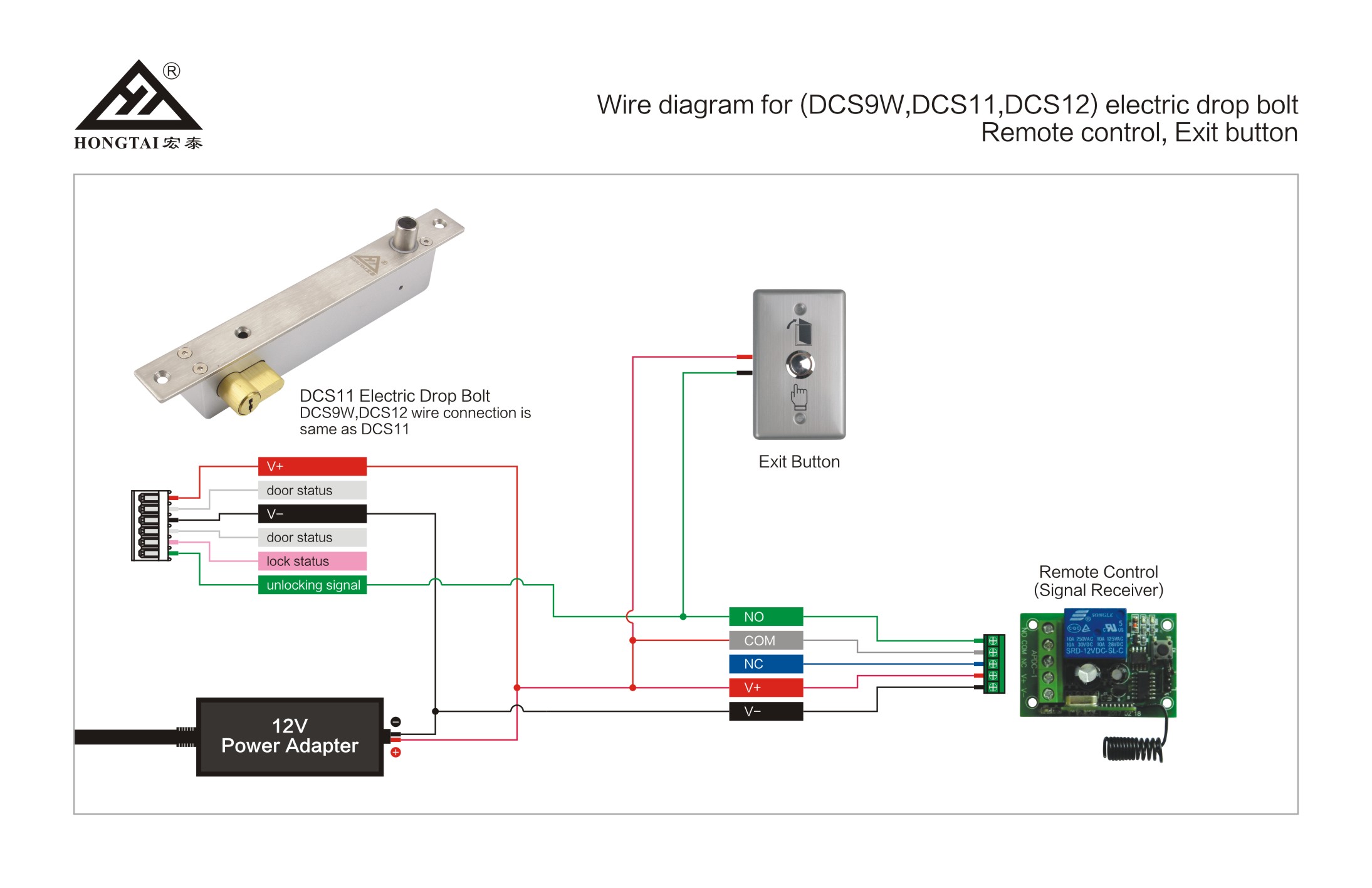

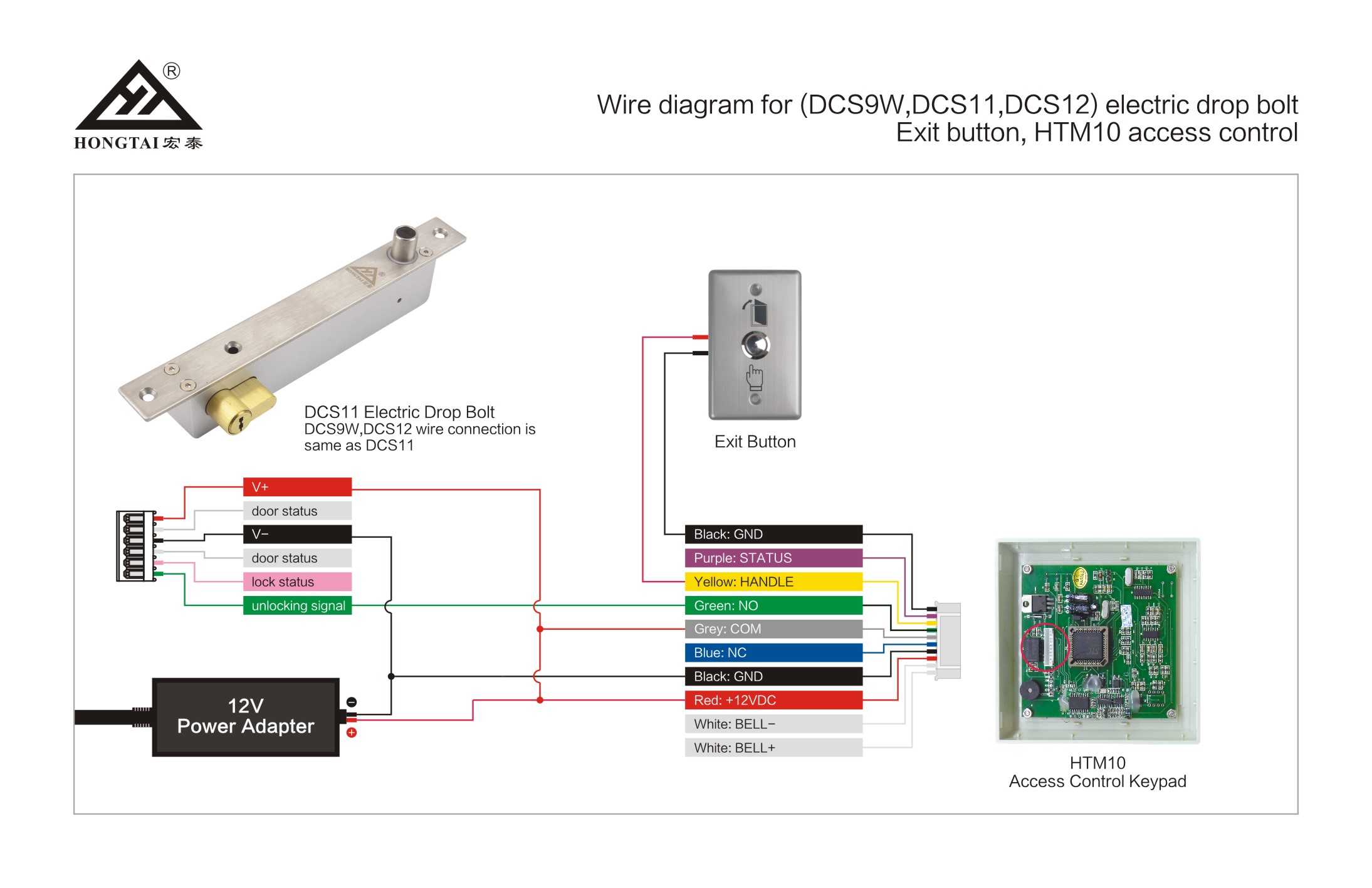

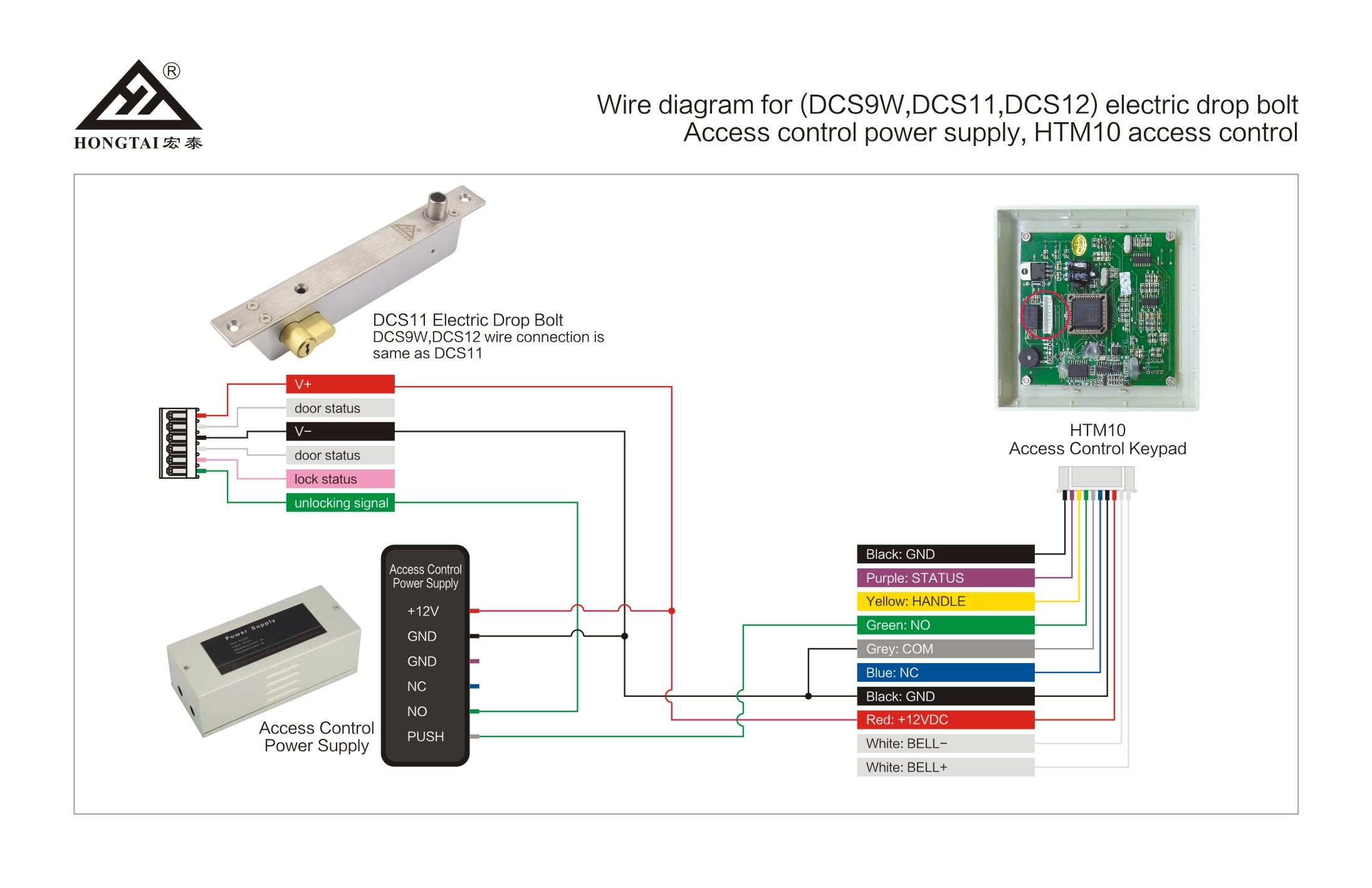

Wiring Diagram
